Cover, Control System [2017, B4204T23, TG-81SC | 2017, B4204T27, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Drain oil transmission, refer to: TRANSAXLE OIL

Perform subframe front, service mode, refer to: FRONT SUBFRAME, SERVICE POSITION

Courtesy of VOLVO CARS CORPORATION

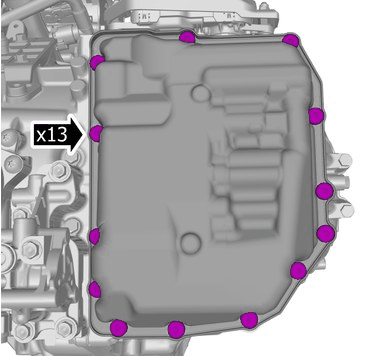

Remove the screws.

Torque: M8, 24Nm

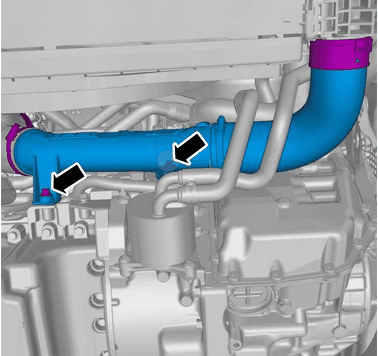

Undo the hose from the connection.

Loosen the hose clamp.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

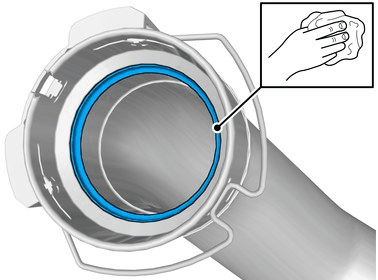

NOTE:

Make sure that the mating faces are clean and free of foreign material.

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

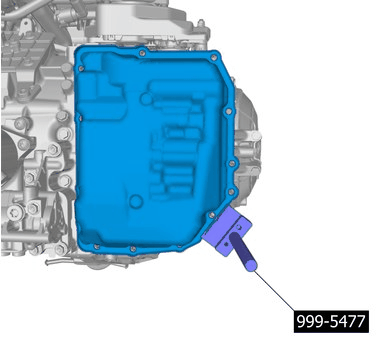

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the component is clean, free of foreign material and lubricant.

CAUTION:

Observe caution when carrying out this step.

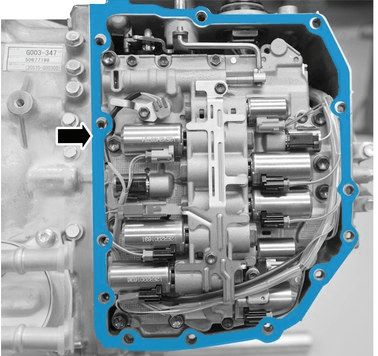

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

CAUTION:

Extreme cleanliness must be exercised when handling this component.

Use: Abrasive cloth, 9511024

Use: Cleaning agent, 1161721

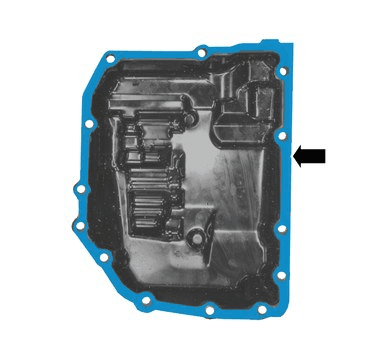

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

Use: Abrasive cloth, 9511024

Use: Cleaning agent, 1161721
