Side Obstacle Detection Control Module Left (SODL) [2020]: Removal

Remove cover bumper rear, refer to:COVER BUMPER REAR

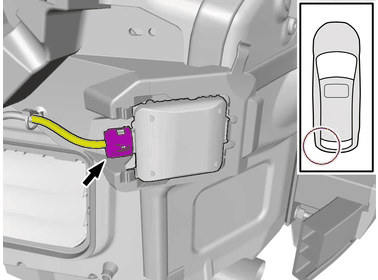

GLL1045831Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

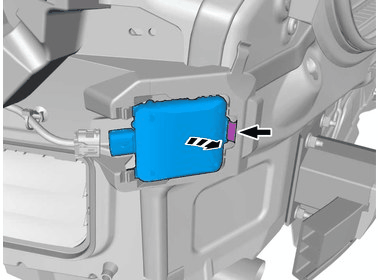

GLL1048816Courtesy of VOLVO CARS CORPORATION

Release the catch.

Remove the marked part.
