Start And Brake Switch Module SBSM [2018-2022, B4204T28]: Removal

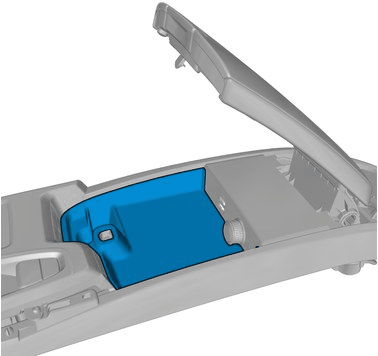

Remove upper panel, floor console. Refer to: [UPPER PANEL, FLOOR CONSOLE]

Courtesy of VOLVO CARS CORPORATION

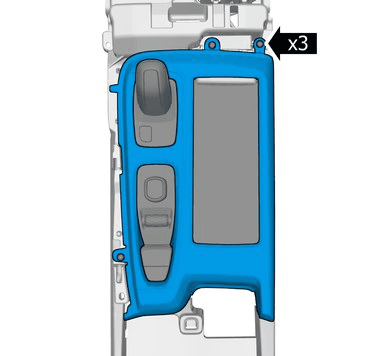

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

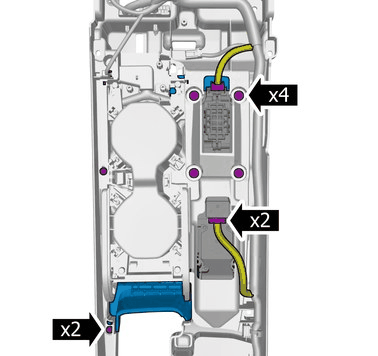

Disconnect the connectors.

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

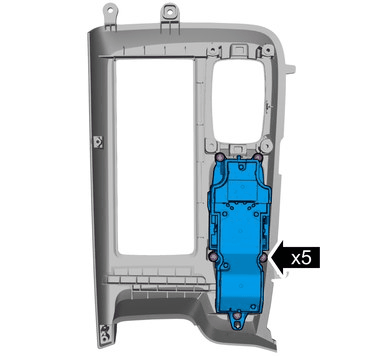

Remove the screws.

Remove the marked part.
