Shift Interlock

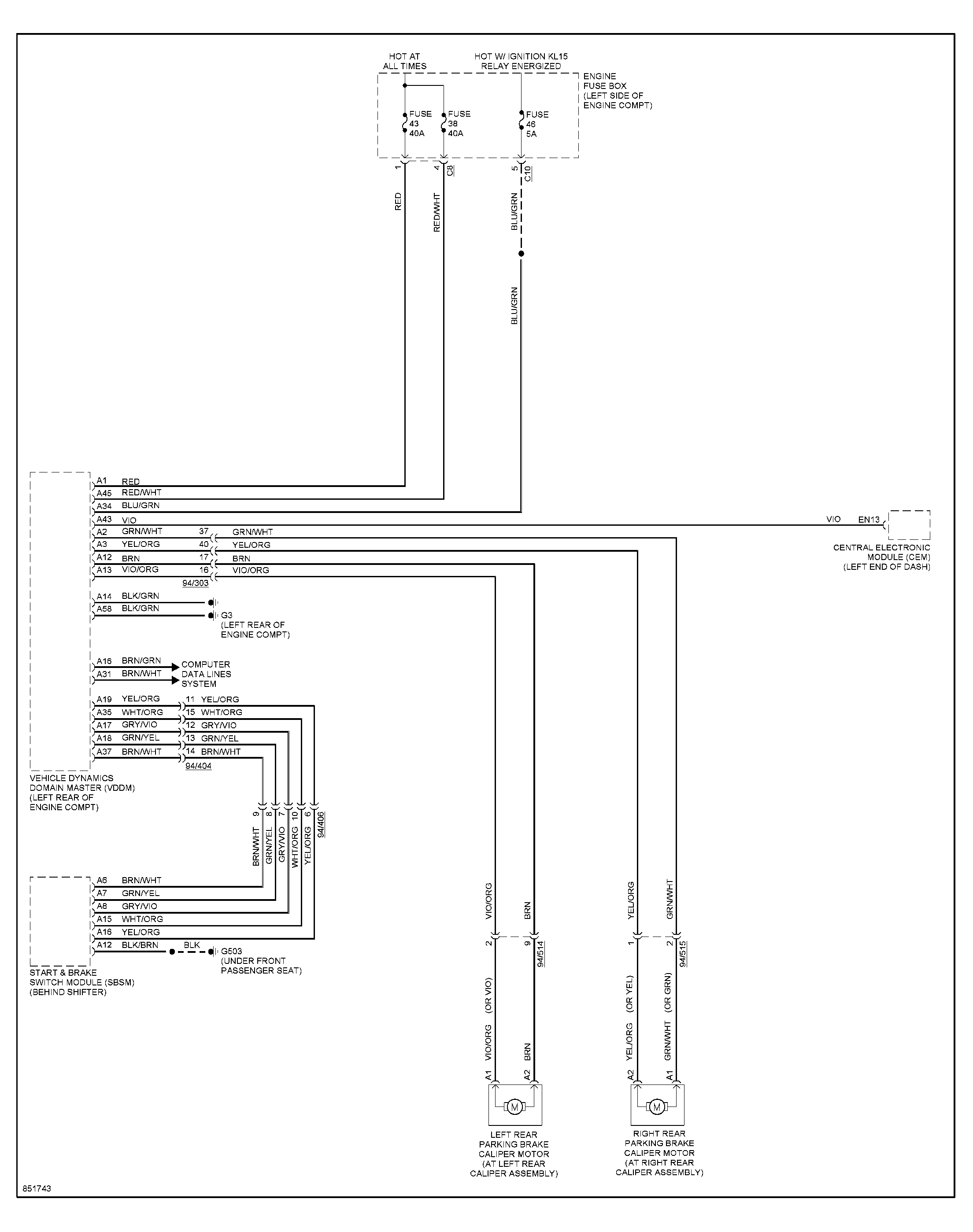

Fig 1: Electric Parking Brake Circuit, Except Hybrid

Fig 2: Electric Parking Brake Circuit, Hybrid

Fig 3: Shift Interlock Circuit, Except Hybrid

Fig 4: Shift Interlock Circuit, Hybrid
