Transmission Actuator Control Module (TACM) [2018-2019, B4204T28, TG-81SC]: Removal

Remove passenger side sill molding front. Refer to: FRONT SILL MOLDING

Remove passenger side instrument panel lower. Refer to: INSTRUMENT PANEL LOWER

Courtesy of VOLVO CARS CORPORATION

When removing on right-hand drive cars, perform the procedures on the opposite side and/or mirrored.

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

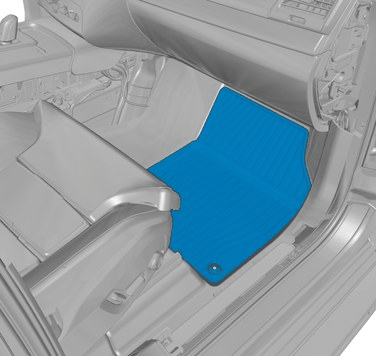

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

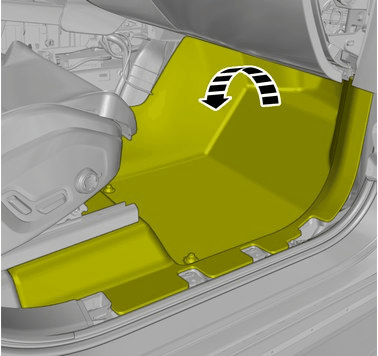

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

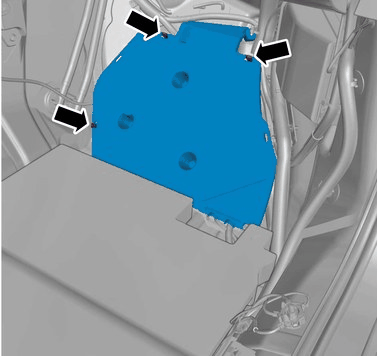

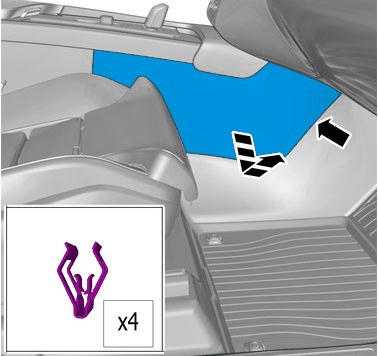

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

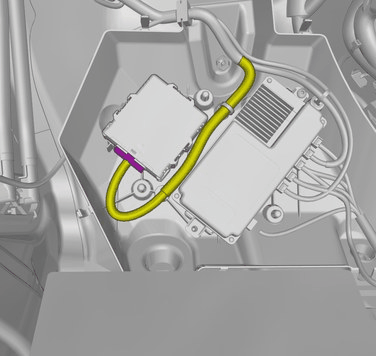

Disconnect the connector.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

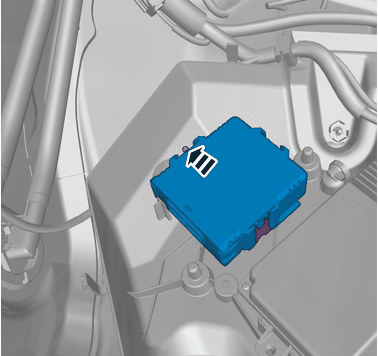

Release the catch.

Remove the marked part.
