Trailer Module (TRM) [2018-2022]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

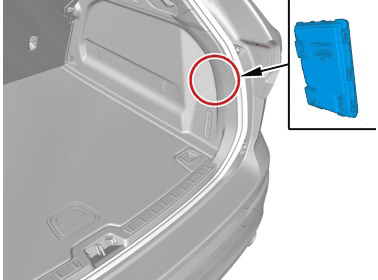

Orientation view

Perform battery disconnecting and connecting. Refer to:BATTERY DISCONNECTING AND CONNECTING

Remove right-hand side side panel load compartment. Refer to:SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

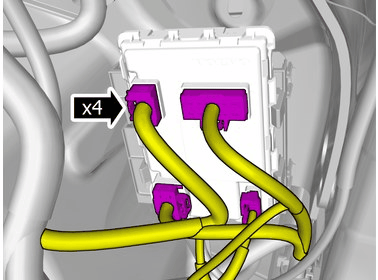

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

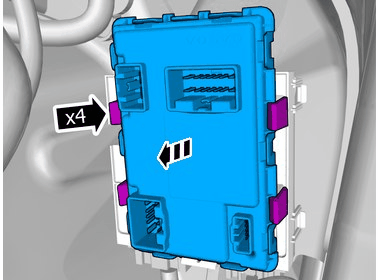

Release the catches.

Remove the marked part.

Use: Interior trim remover
