Joining Cables: Installation

Courtesy of VOLVO CARS CORPORATION

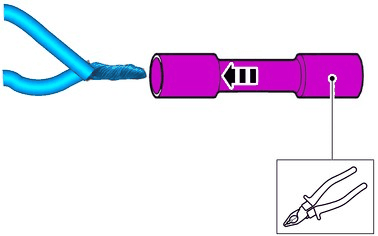

See information about junction sleeve. Refer to: JUNCTION SLEEVE

Courtesy of VOLVO CARS CORPORATION

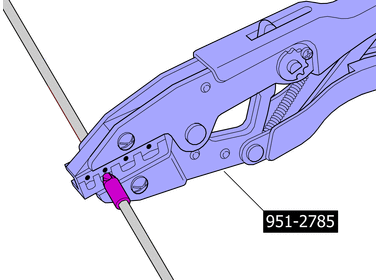

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

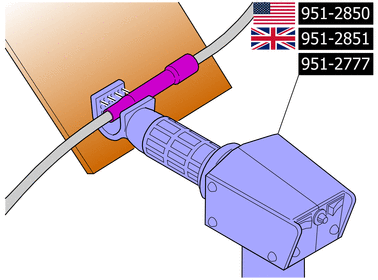

CAUTION:

Make sure that the surrounding components are protected from heat.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the joint sleeve is properly shrunk around the wire. You should be able to see that glue has penetrated.

Courtesy of VOLVO CARS CORPORATION

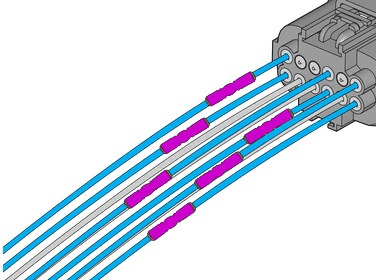

Place the splices evenly distributed.

Courtesy of VOLVO CARS CORPORATION

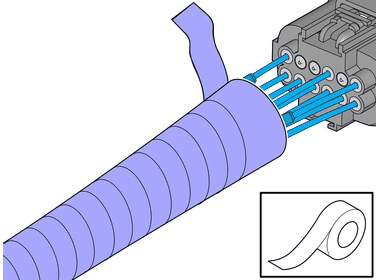

Use: Electrical tape,

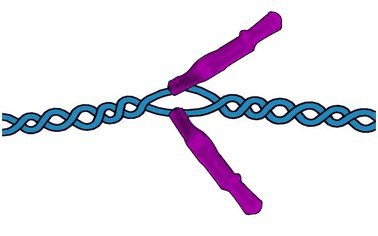

VEHICLES WITH FLEXRAY NETWORK

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Ensure that the cable's untwisted length does not exceed 10 mm.

Courtesy of VOLVO CARS CORPORATION

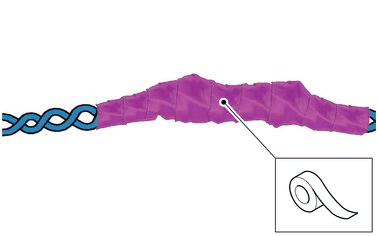

Use: Electrical tape,
