Lower Control Arm With Variant Code RI02 Or RI03: Installation
NOTE:
Only tighten the nuts and bolts when the suspension is in the normal drive position.
Ensure that the vehicle is adapted to normal status. Refer to: NORMAL POSITION
NOTE:
Do not fully tighten the bolts.

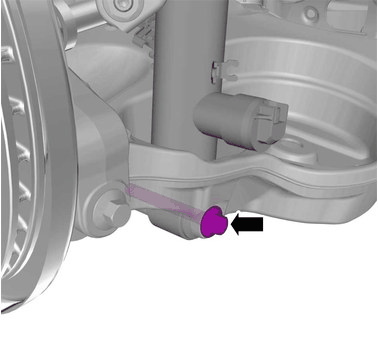

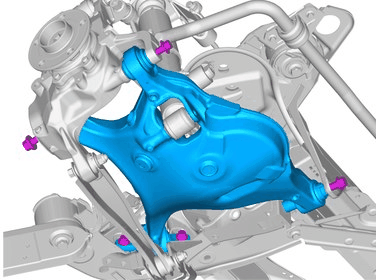

Install the marked component.

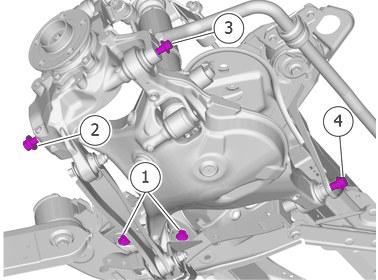

Install the screws.
Tighten the bolts.
- Torque:
Arm lower rear, to subframe (front mounting)
- Stage 1: 90Nm
- Stage 2: 90°
- Torque:
Lower control arm rear to wheel knuckle (front mounting)
- Stage 1: 140Nm
- Stage 2: 90°
- Torque:
Lower control arm rear to wheel knuckle (rear mounting)
- Stage 1: 90Nm
- Stage 2: 120°
- Torque:
Arm lower rear, to subframe (rear mounting)
- Stage 1: 140Nm
- Stage 2: 150°
Install the screw.
Torque: Rear shock absorber, to Lower control arm
- Stage 1: 90Nm
- Stage 2: 150°
To install, reverse the removal procedure.
CAUTION:
Make sure that the air springs are inflated before lowering the vehicle.
