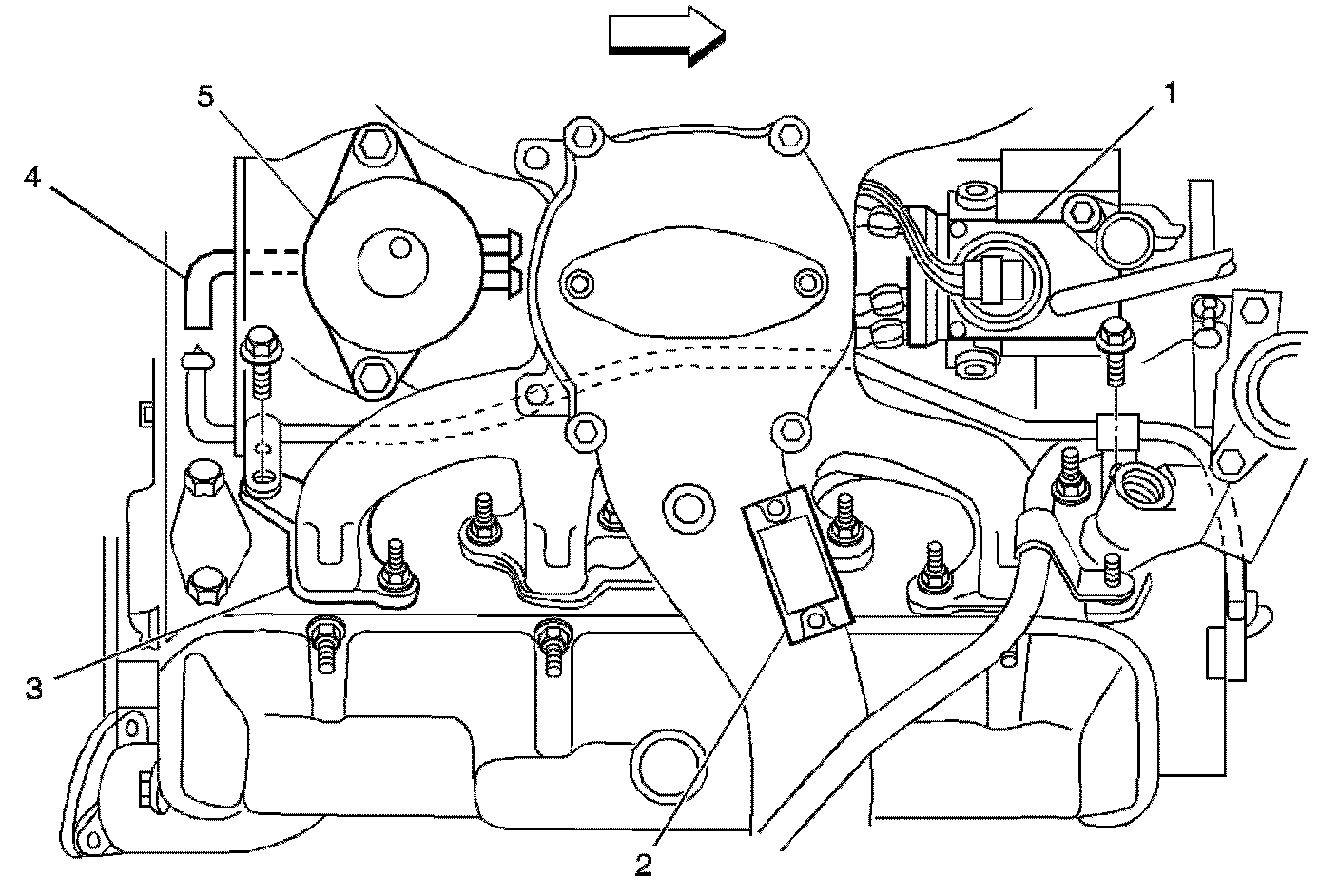

Barometric Pressure Sensor: Locations
(1) Fuel Injection Pump
(2) Boost/BARO Sensor
(3) Intake Manifold
(4) Fuel Feed Inlet Hose
(5) Fuel Manager/Filter
