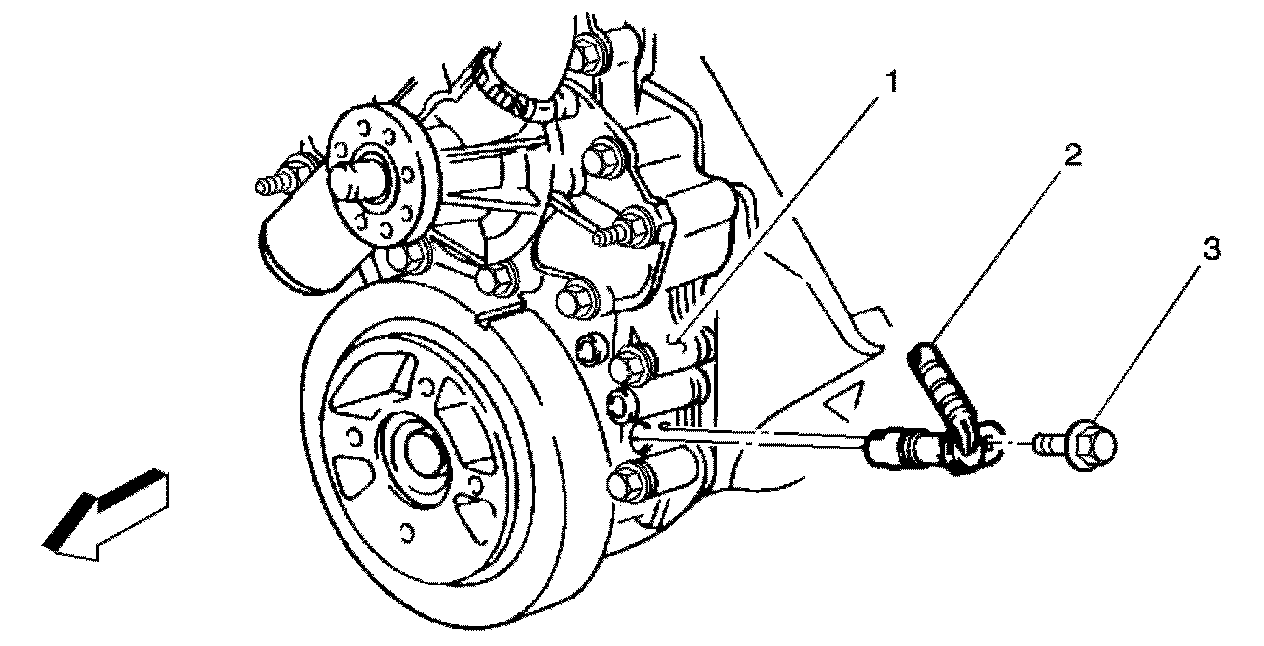

Crankshaft Position Sensor: Locations
(1) Front Engine Cover
(2) Crankshaft Position (CKP) Sensor
(3) Mounting Bolt
