Data Link Connector: Locations

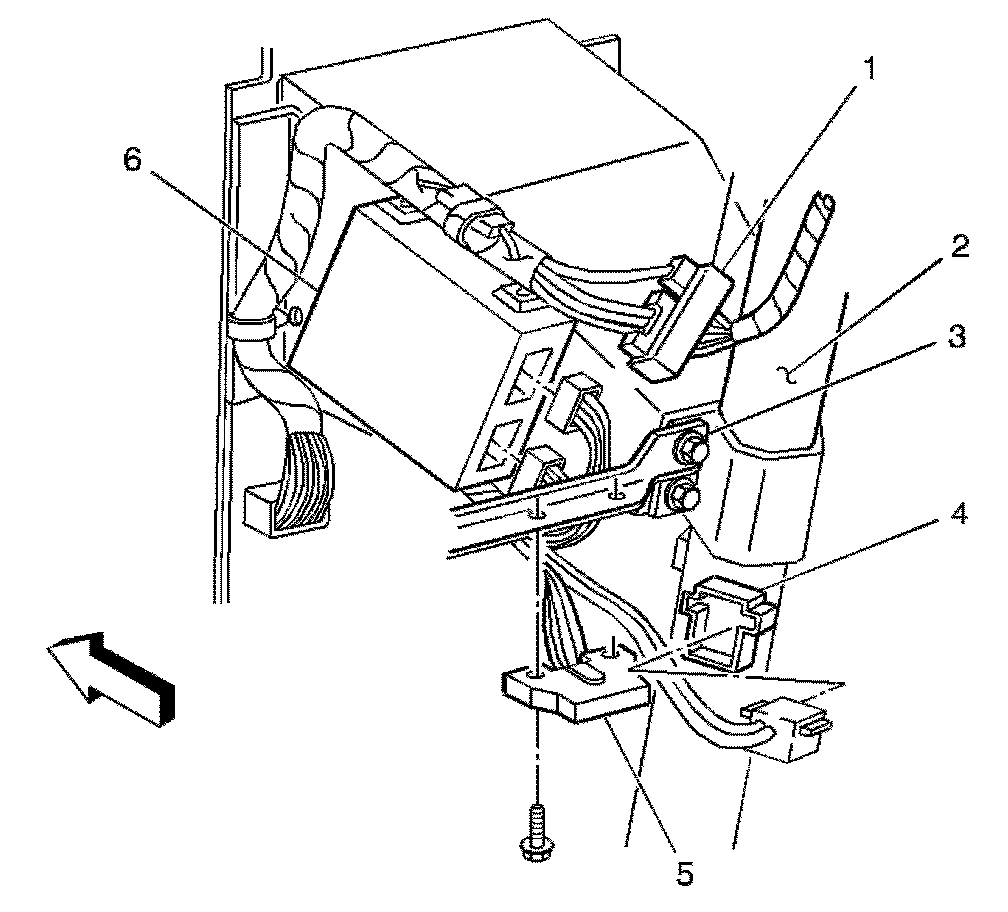

At The Lower LH Side Of The Steering Column On The Support Bracket:






(1) Directional Signal Switch Connector
(2) Steering Column
(3) Parking Brake Support Brace
(4) Dimmer Switch
(5) ALDL Connector
(6) PCM
