Engine Control Module: Locations

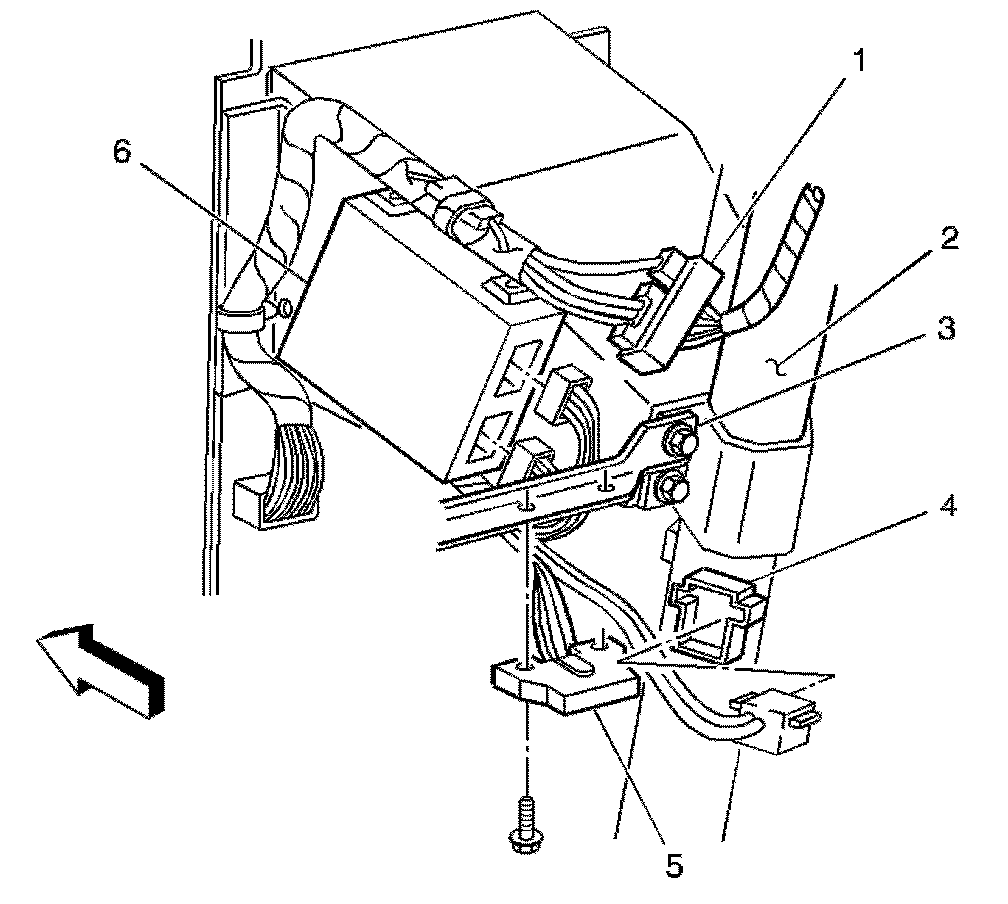

On The LH Side Of The Driver's Island:






(1) Directional Signal Switch Connector
(2) Steering Column
(3) Parking Brake Support Brace
(4) Dimmer Switch
(5) ALDL Connector
(6) PCM
