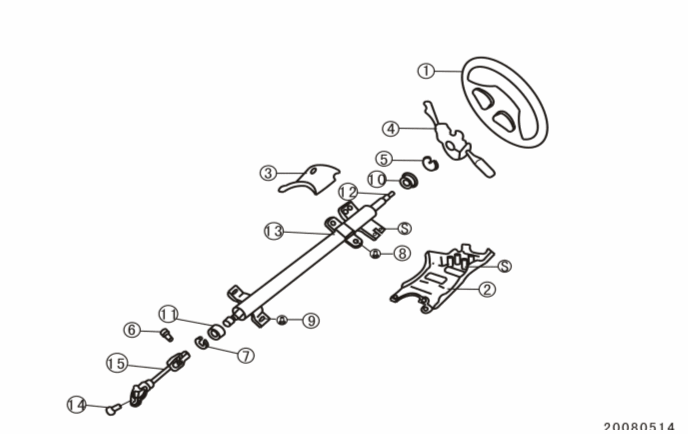

Steering Column Components
| Item | Description |
|---|---|
| 1 | Steering wheel |
| 2 | Lower cover of combination instrument panel decorative sheet |
| 3 | Upper cover of combination Instrument panel decorative sheet |
| 4 | Combination switch assembly |
| 5 | E-type retainer ring |
| 6 | Bolt |
| 7 | E-type retainer ring |
| 8 | Bushing |
| 9 | Bushing |
| 10 | Bushing |
| 11 | Bushing |
| 12 | Steering shaft welded assembly |
Attention:
- When installing a new bushing be careful of excessive distortion or it will crack.
- Bushing should line up well with the column.
NOTE:
Steering column may be easily damaged once it is disassembled from the vehicle. Secure the end of the steering column assembly, which may damage or loosen the steering shaft due to impact or collision if it slides off. A plastic shear lock pin is used to maintain the length of the steering column
