CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Diode | Behind left kick panel, taped to harness. |
| Auxiliary Fuse Holder No. 1 | Behind left kick panel, on right side of underdash fuse/relay box. See Figure . |
| Auxiliary Fuse Holder No. 2 | Behind left kick panel, on right side of underdash fuse/relay box. See Figure . |

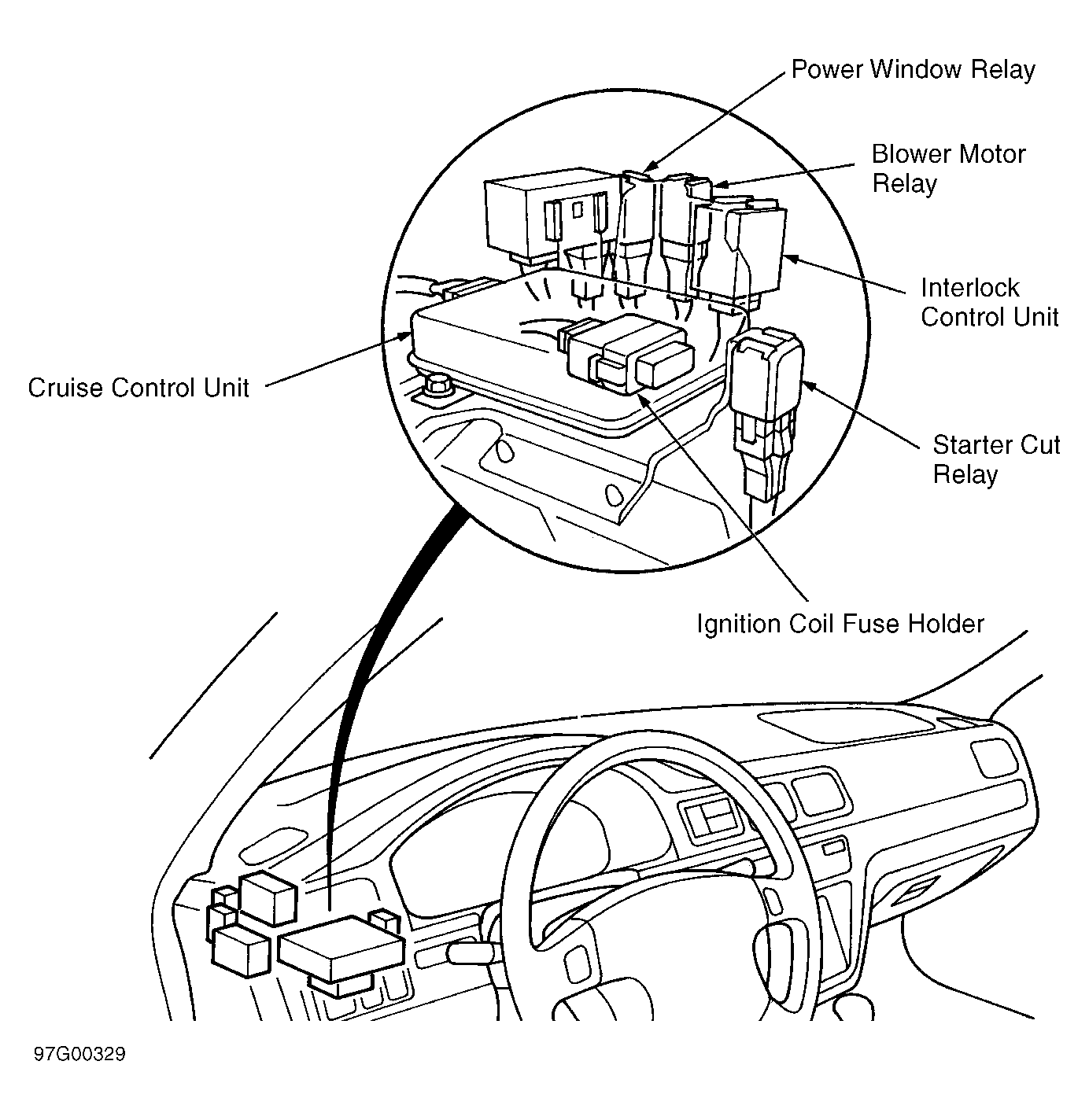

| Ignition Coil Fuse Holder | Behind dash, left of steering column, on bracket. See Figure . |
| In-Line Diode A | Above left kick panel, taped to harness. |
| In-Line Diode B | Above right kick panel, taped to harness. |
| In-Line Diode C | Above right kick panel, taped to harness. |
| In-Line Diode D | Above right kick panel, taped to harness. |
| In-Line Diode E | Above right kick panel, taped to harness. |
| In-Line Diode F | Above right kick panel, taped to harness. |
| In-Line Diode G | Above right kick panel, taped to harness. |
| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |
| Underdash Relay Box | Above right kick panel. See Figure . |
| Underhood Fuse/Relay Box | On left side of engine compartment. See Figure . |
