Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind right kick panel. |
| ABS Modulator Unit | On right rear of engine compartment. |
| Automatic Lighting Control Unit (USA) | Behind left side of rear seat. See Figure . |
| Cruise Control Unit | Behind dash, right of steering column. See Figure . |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind left side of rear seat. See Figure . |
| Fan Control Unit | Below front passenger's footrest. |

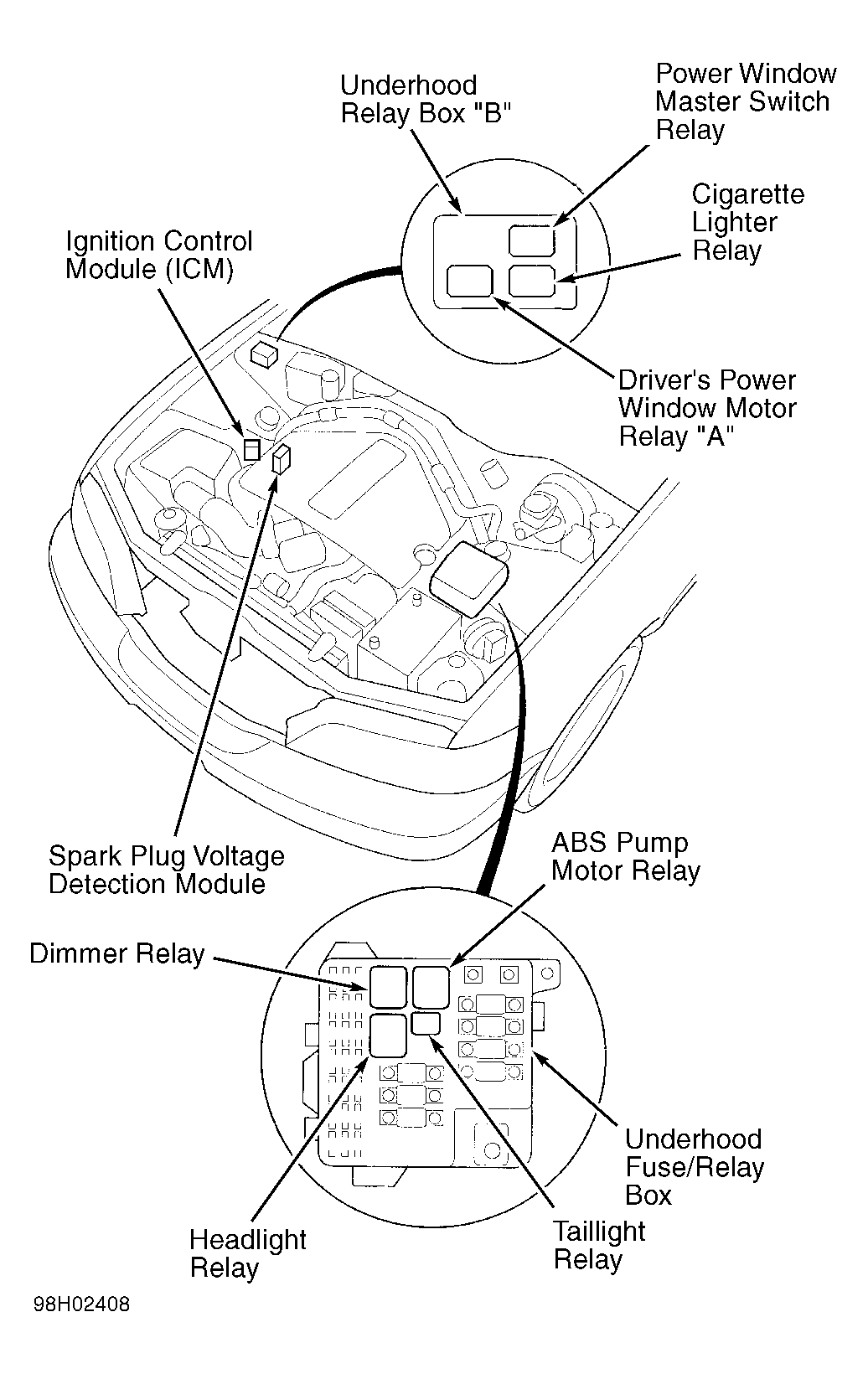

| Ignition Control Module (ICM) | On right side of engine compartment. See Figure . |
| Immobilizer Control Unit | Behind dash, left of steering column. See Figure . |
| Keyless Receiver Unit | Behind right side of rear seat. See Figure . |
| Moon Roof Control Unit | On center underside of roof, above headliner. See Figure . |
| Multiplex Control Unit (Door) | In driver's door. See Figure . |
| Multiplex Control Unit (Driver's) | Behind left kick panel. See Figure . |
| Multiplex Control Unit (Passenger's) | Behind right kick panel. |
| Navigation Control Unit | On front of trunk, center underside of rear shelf. See Figure . |
| Power Mirror Control Unit | In driver's door. See Figure . |
| Power Seat Control Unit | Below driver's seat. See Figure . |
| Powertrain Control Module (PCM) | Below front passenger's footrest. See Figure . |
| Spark Plug Voltage Detection Module | On right rear of engine compartment. See Figure . |
| SRS Unit | Behind center of dash, below radio. See Figure . |
| Steering Column Control Unit | Behind dash, right of steering column. See Figure . |
| Stereo Amplifier (Bose Sound System) | Behind right side of rear seat. See Figure . |
| TCS Control Unit | Behind left side of rear seat. See Figure . |
