Yaw Rate Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use an impact wrench.
  1. Remove the seat-back.
  2. Remove the yaw rate sensor (A).

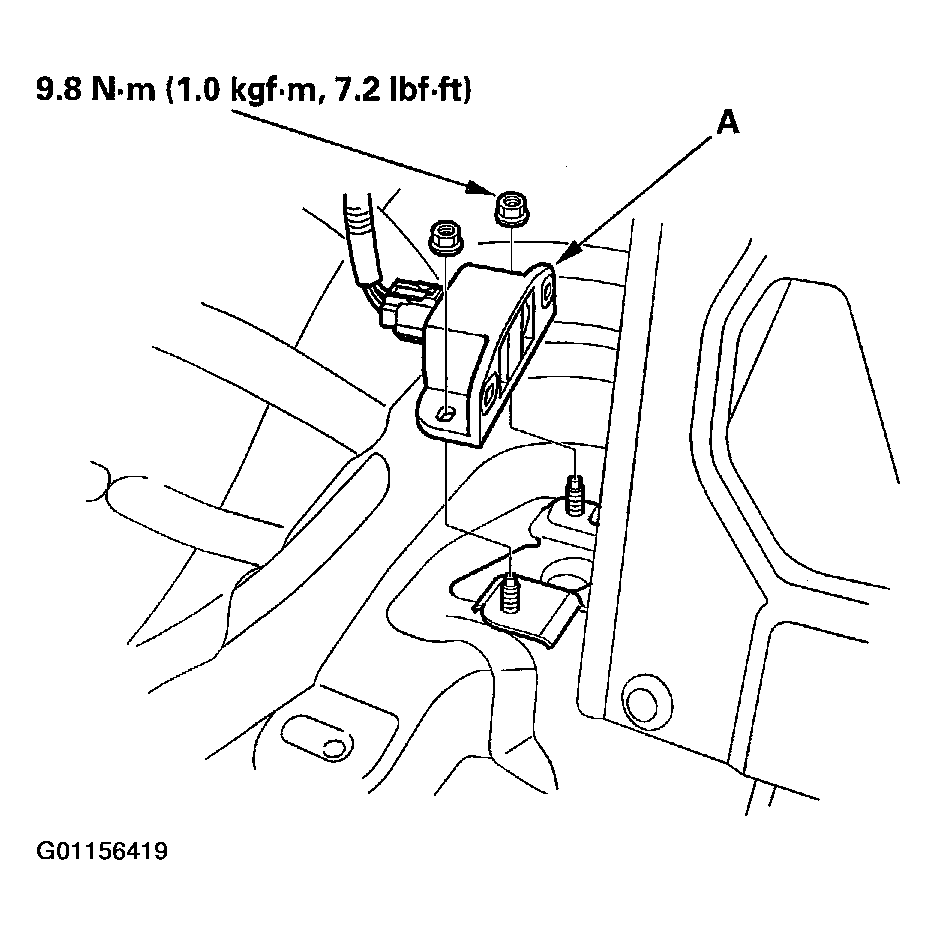

    Fig 1: Removing Yaw Rate Sensor
    G01156419Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal.
  4. Do the neutral position memorization. See Neutral Position Memorization  .
