DTC B1038: Inspection

BF-CAN_H, BF-CAN_L Open Wire Inspection

Test Procedure

• Preparation
• 1. -

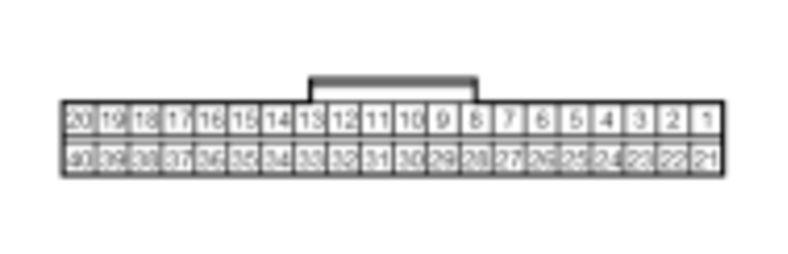

     CAN gateway 40P connector: disconnected

  2. -

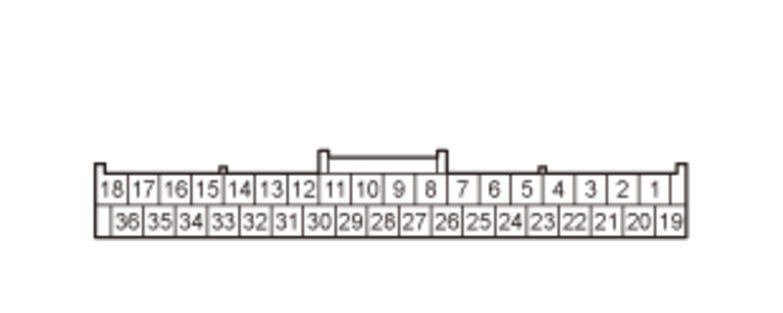

     Body control module connector B (36P): disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

			(Disconnected)CAN gateway 40P connector female terminals	(Disconnected)Body control module connector B (36P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	BF-CAN_H open wire inspection	OFF			There is less than 1 Ohm
	BF-CAN_L open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

VF-CAN A_H, VF-CAN A_L Open Wire Inspection

Test Procedure

• Preparation
• 1. -

     CAN gateway 40P connector: disconnected

  2. -

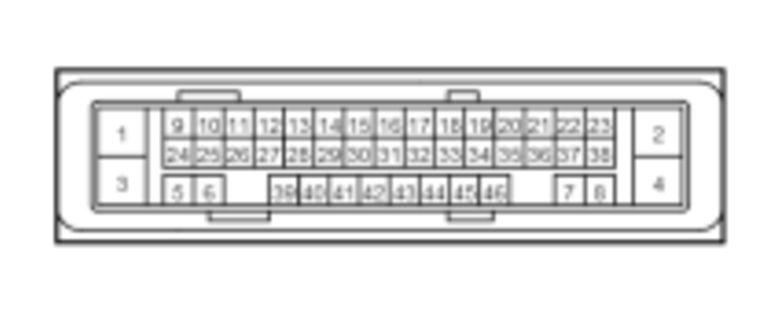

     VSA modulator-control unit 46P connector: disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

			(Disconnected)CAN gateway 40P connector female terminals	(Disconnected)VSA modulator-control unit 46P connector female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VF-CAN_H open wire inspection	OFF			There is less than 1 Ohm
	VF-CAN_L open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal

Test Procedure

• Procedure
• 1. -

     Do the HDS [F-CAN Bus Connected Unit Check].

• Normal Conditions
• 1. -

     The HDS indicates body control module is Detected on BF-CAN.

Results

• If it is abnormal, there is a problem with the body control module.

VSA modulator-control unit Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining VSA modulator-control unit is the cause.

Results

• There is a problem with the VSA modulator-control unit.
