DTC B1085: Inspection

H/L_LO_R_SIG Shorted Wire Inspection

Test Procedure

• Preparation
• 1. -

     Body control module connector D (40P): disconnected

  2. -

     Left headlight 8P connector: disconnected

  3. -

     Right headlight 8P connector: disconnected

• Procedure
• 1. -

     Perform the inspection according to the following table.

     NOTE:  Refer to: Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

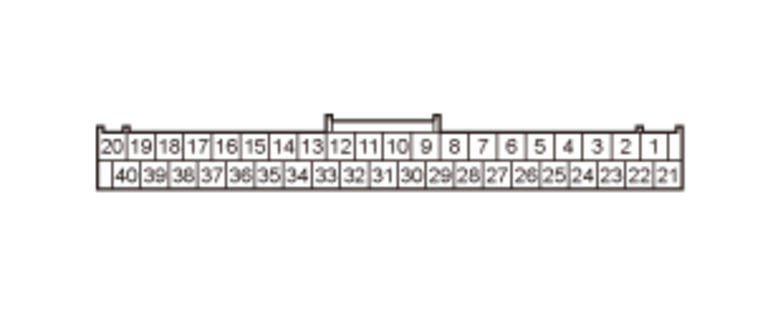

			(Disconnected)Body control module connector D (40P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	H/L_LO_R_SIG shorted to ground inspection	OFF		Not shorted

Results

• If abnormal, there is a problem in the circuit.

Headlight Inspection

NOTE:  Since there is no direct method to test the inspection item, troubleshooting is performed using a known-good component.

Test Procedure

• Install a known-good left/right headlight and attempt to reproduce the failure.

Results

• If the failure is reproduced, there is a problem with other related components.
• If the symptom/DTC goes away, the left/right headlight must be faulty.

Body Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining body control module is the cause.

Results

• There is a problem with the body control module.
