Fuel Injectors
WARNING:
Always relieve fuel pressure before disconnecting any fuel injection-related component. DO NOT allow fuel to contact engine or electrical components.

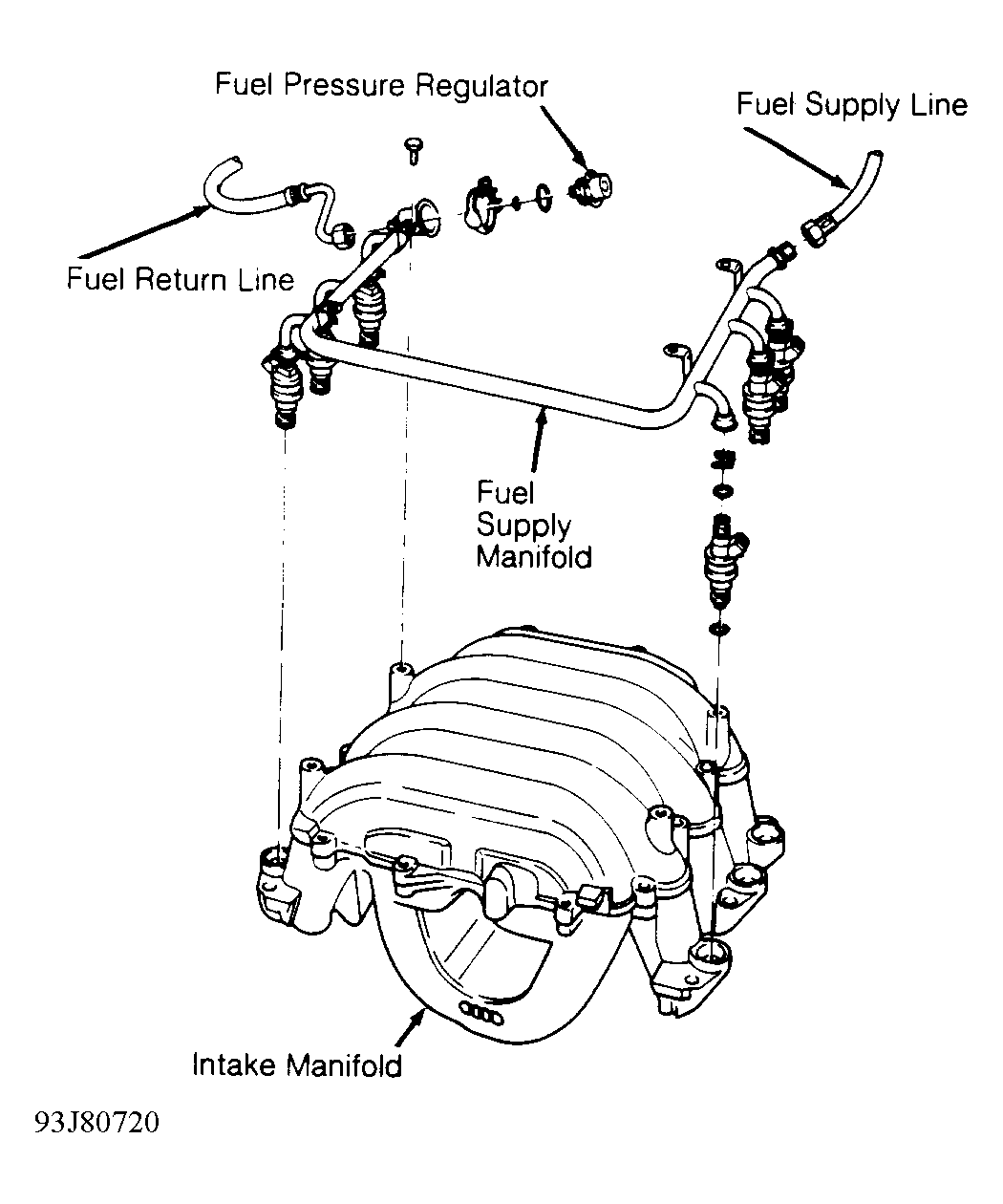

Disconnect negative battery cable. Disconnect fuel lines from fuel supply manifold. Remove manifold mounting bolts and lift fuel manifold with injectors. Remove injectors from fuel rail. See Fig 1 . To install, reverse removal procedure.
