Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

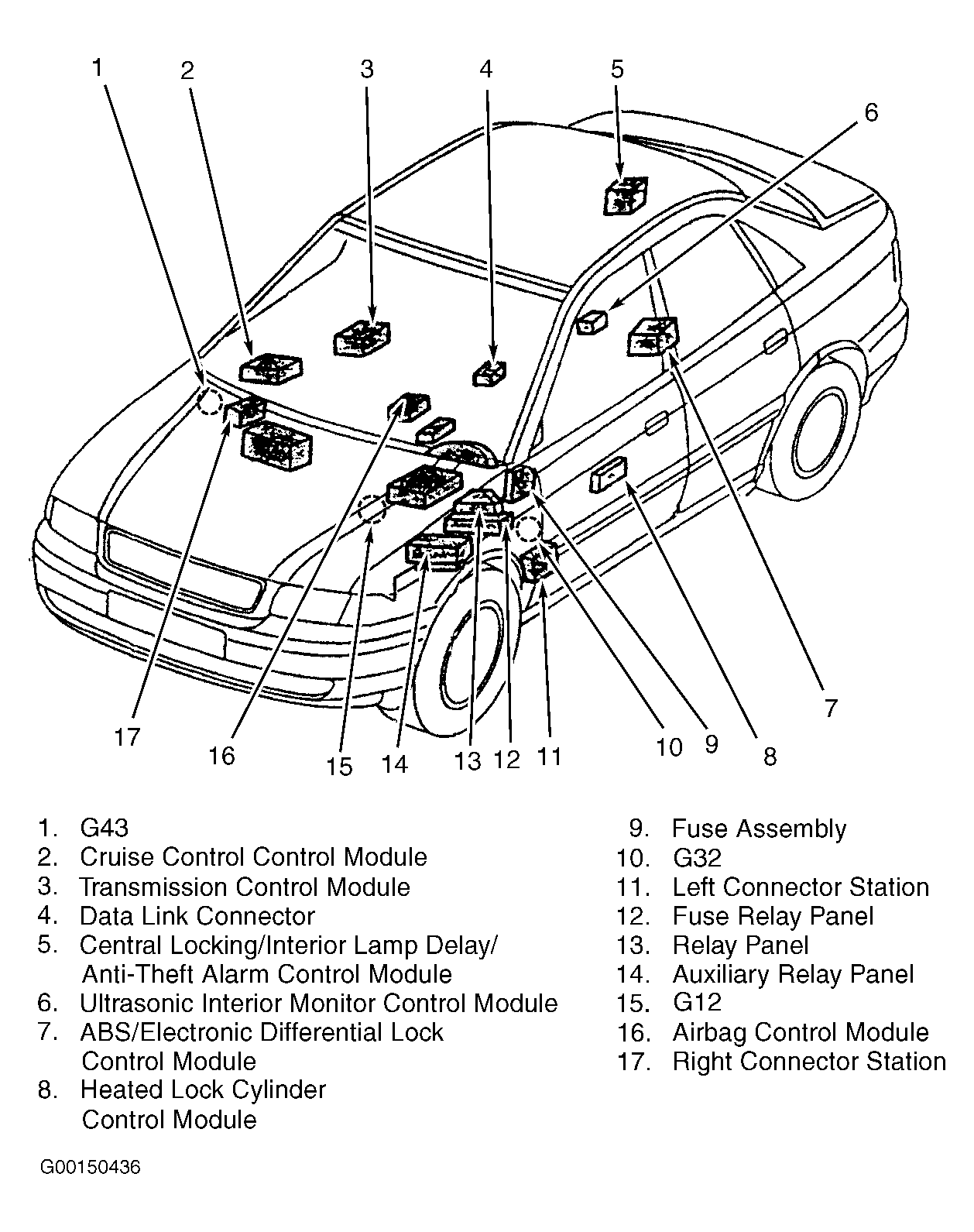

| ABS/Electronic Differential Lock Control Module | Below left side of rear seat. See Figure . |
| Air Bag Control Module | In center console. See Figure . |
| Central Locking/Interior Lamp Delay/Anti-Theft Alarm Control Module | On bottom right of luggage compartment See Figure . |
| Cruise Control, Control Module | Behind right side of dash. See Figure . |

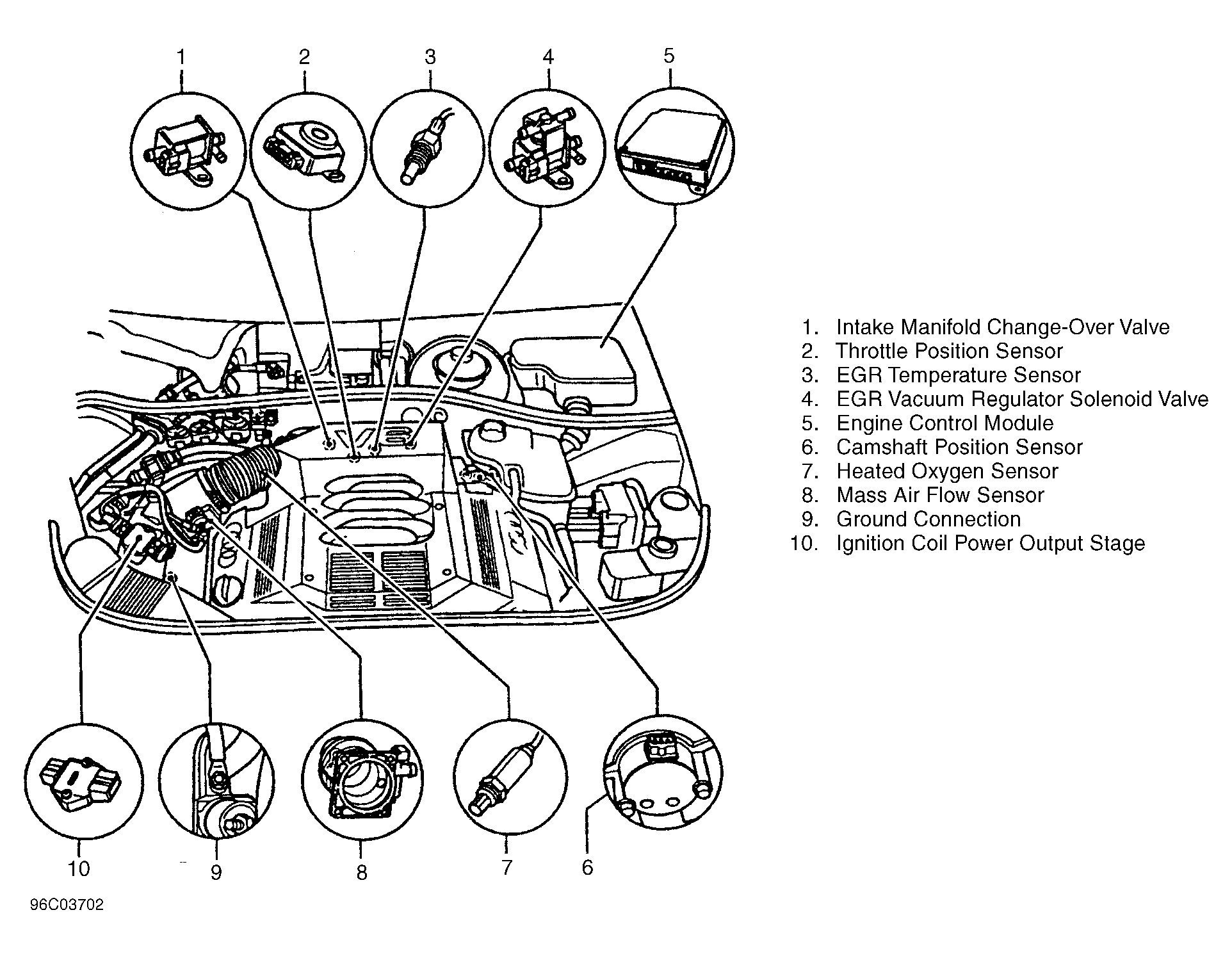

| Engine Control Module | In left rear corner of engine compartment. See Figure . |
| Heated Lock Cylinder Control Module | Upper part of left front door. See Figure . |

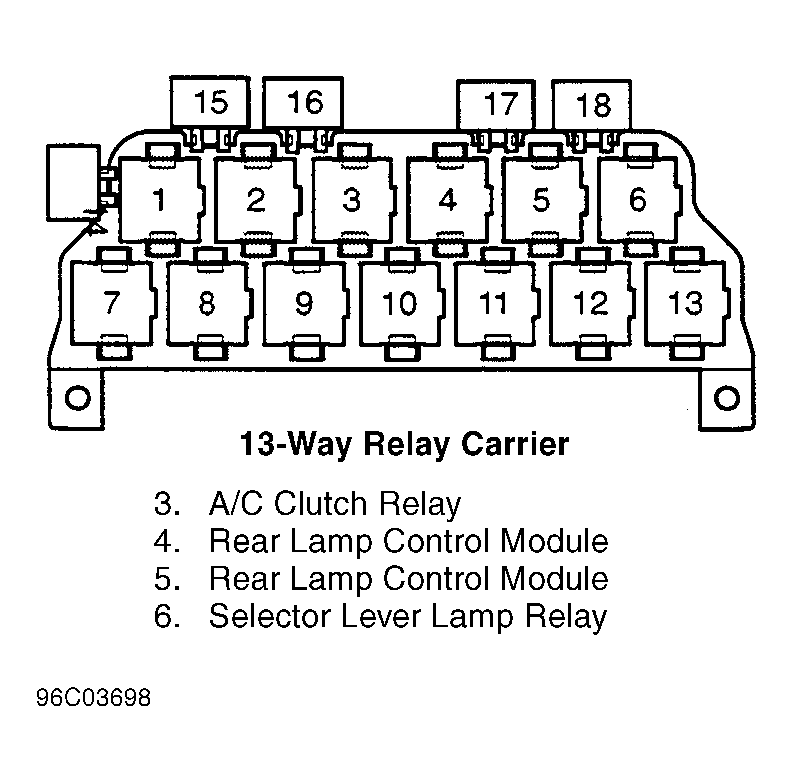

| Rear Lamp Control Module | On 13-pin relay carrier, positions No. 4 & No. 5. See Figure . |
| Transmission Control Module | Under carpet, forward of passenger's seat. See Figure . |
| Ultrasonic Interior Monitor Control Module | Below center of rear seat. See Figure . |
