Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

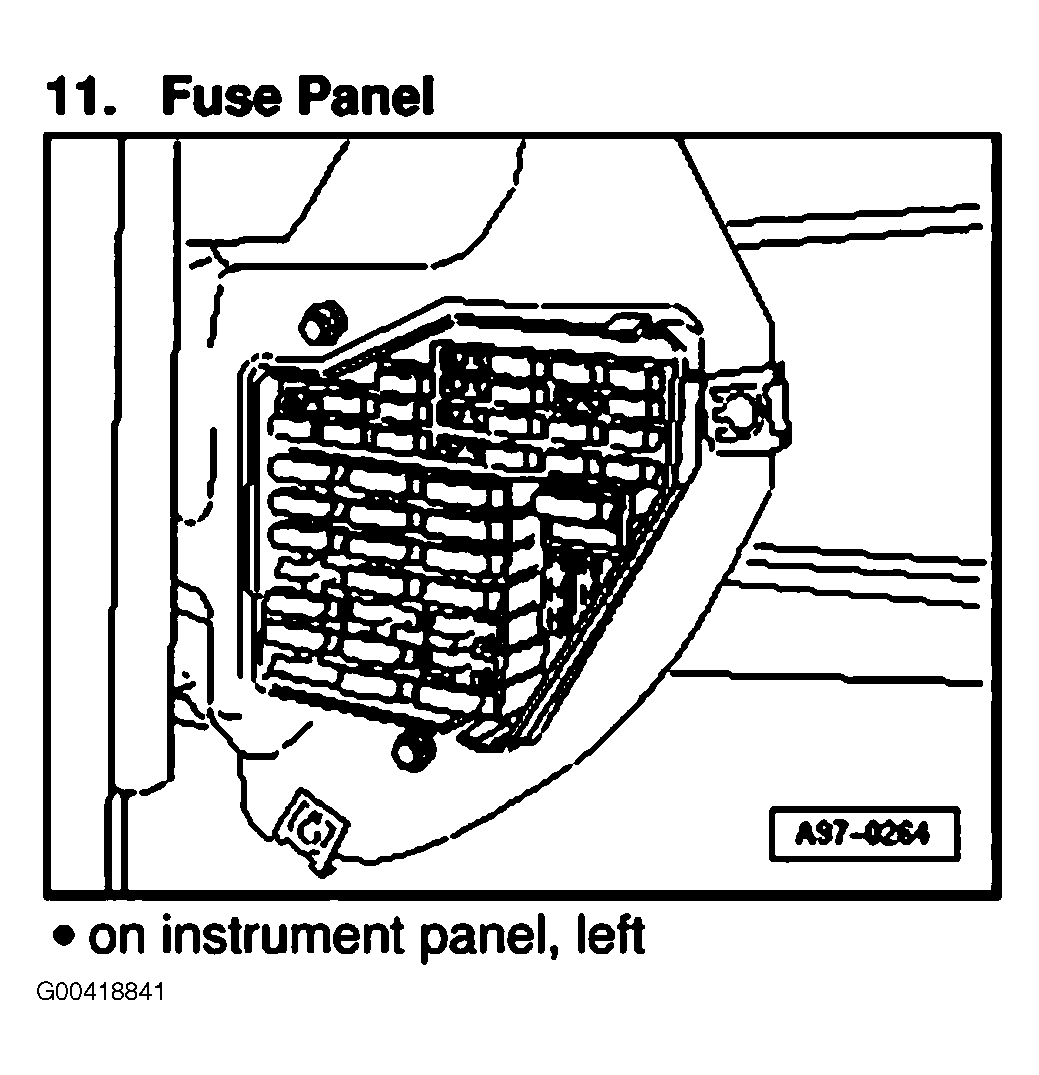

| Fuse Panel |
Behind left side of dash. See Figure
. |

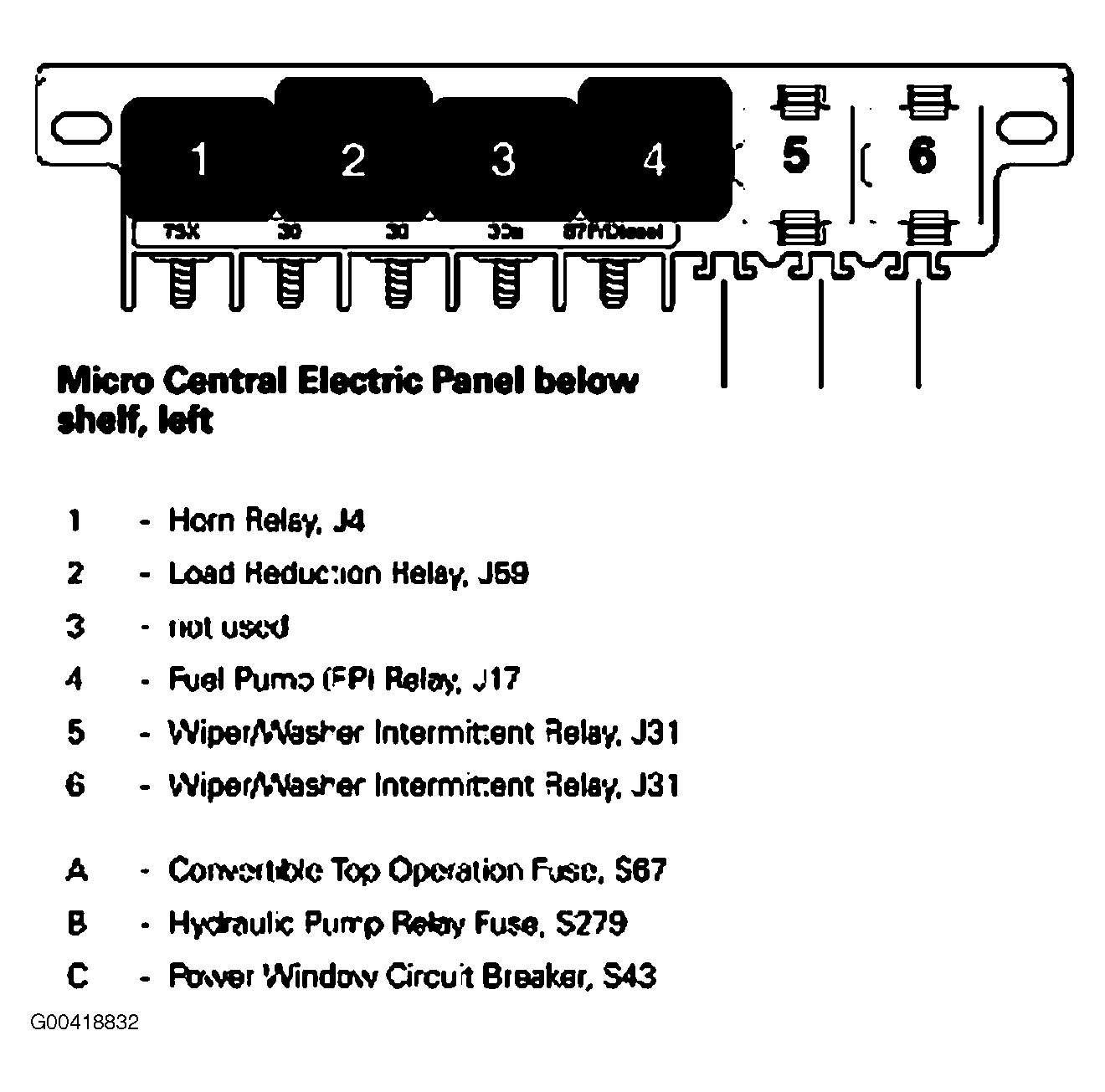

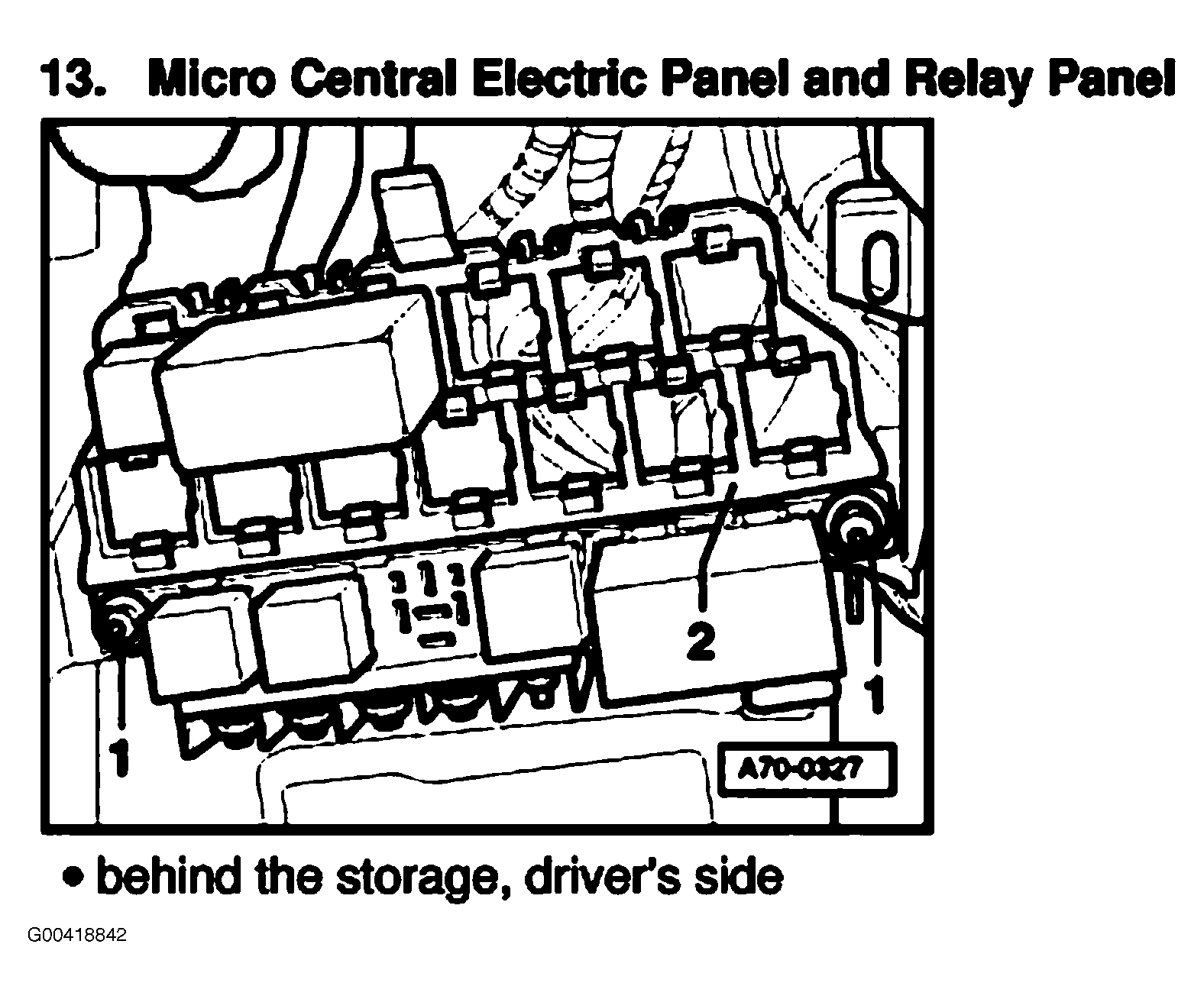

| Micro Central Electric Panel And Relay Panel |
Behind driver's seat. See Figure
. |
| Power Window Circuit Breaker |
On micro central electric panel. See Figure
. |
