Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (W/EDL) (1.8L) | At left side of engine compartment. See Figure . |

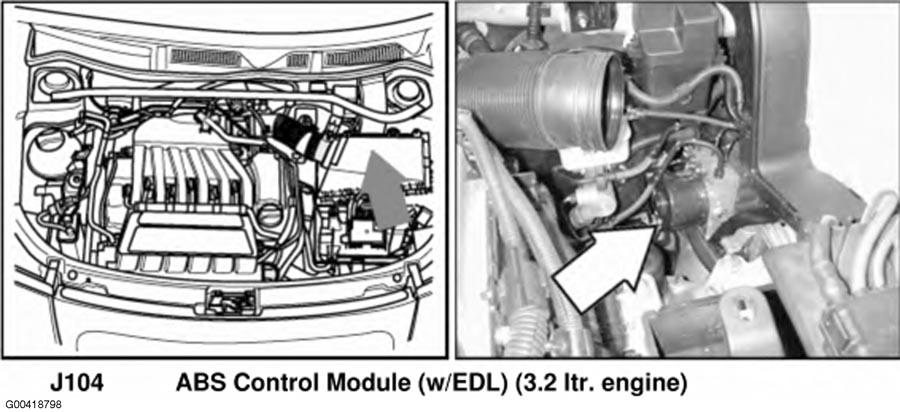

| ABS Control Module (W/EDL) (3.2L) | Left side of engine compartment. See Figure . |

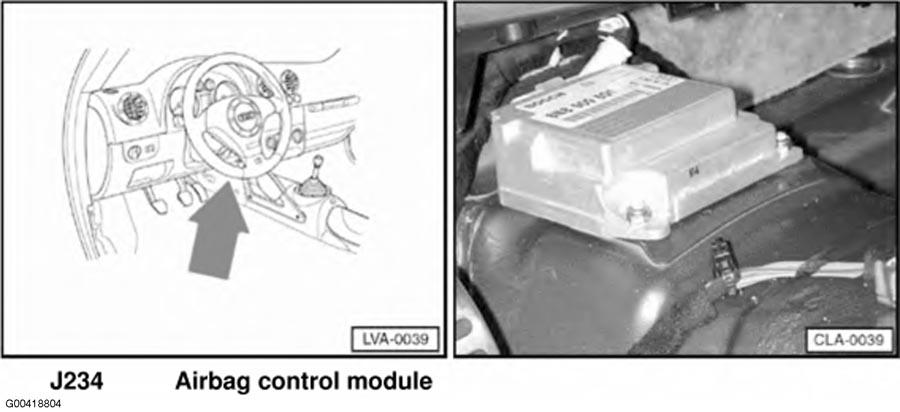

| Air Bag Control Module | Beneath center of dash, on central tunnel. See Figure . |

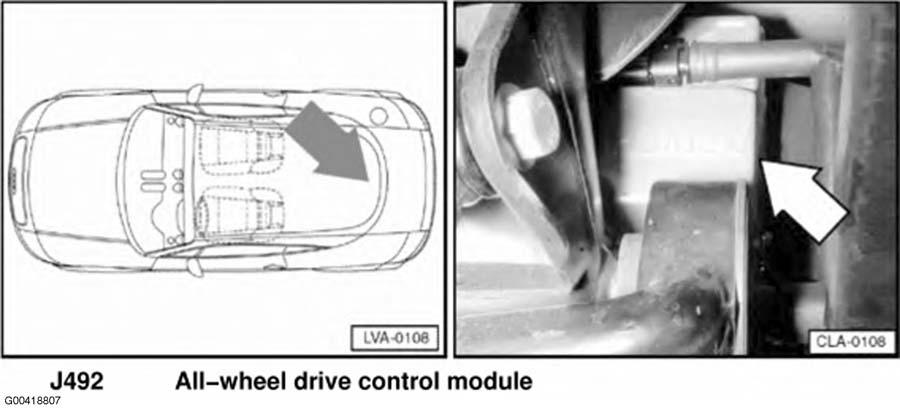

| All Wheel Drive Control Module | Under rear of vehicle. See Figure . |

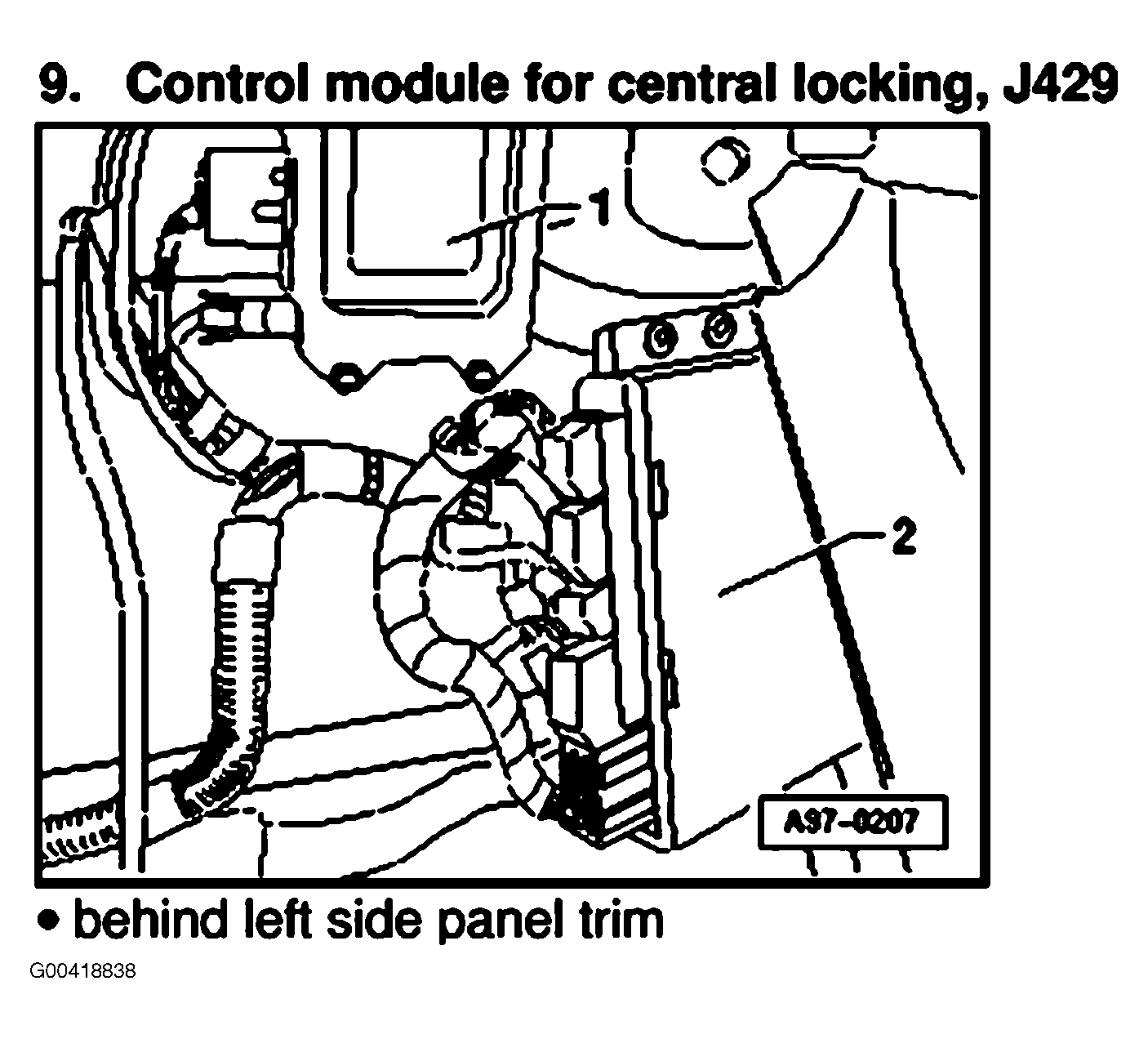

| Central Locking Control Module | Behind left trim panel. See Figure . |

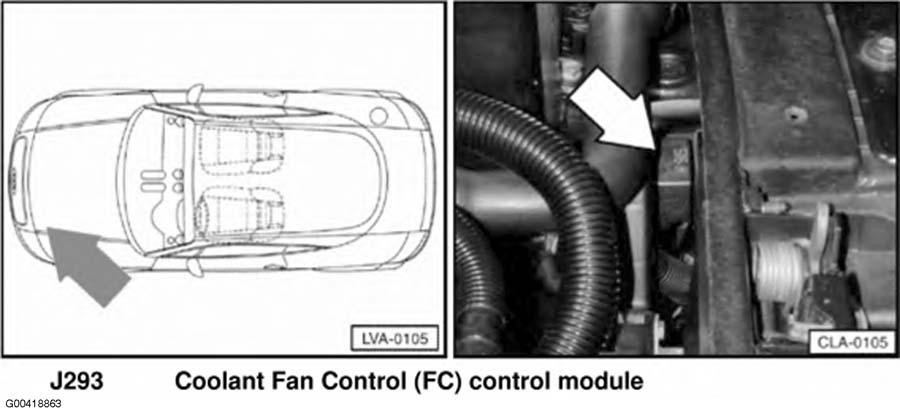

| Coolant Fan Control (FC) Module | On left front of engine compartment. See Figure . |

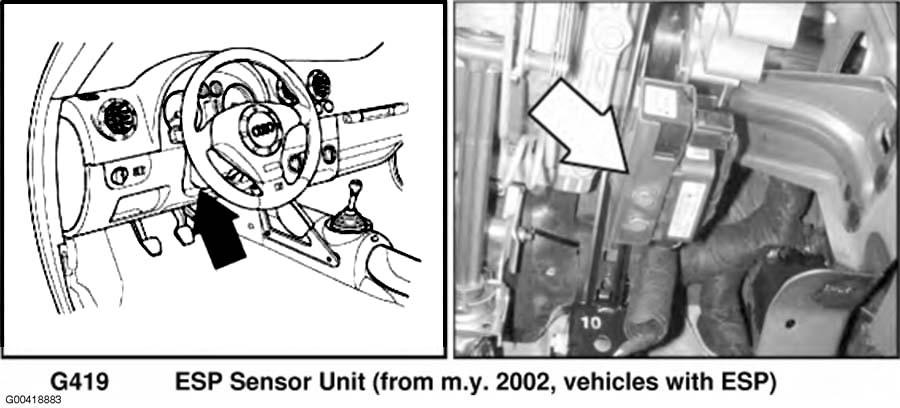

| ESP Sensor Unit | Behind left side of dash. See Figure . |

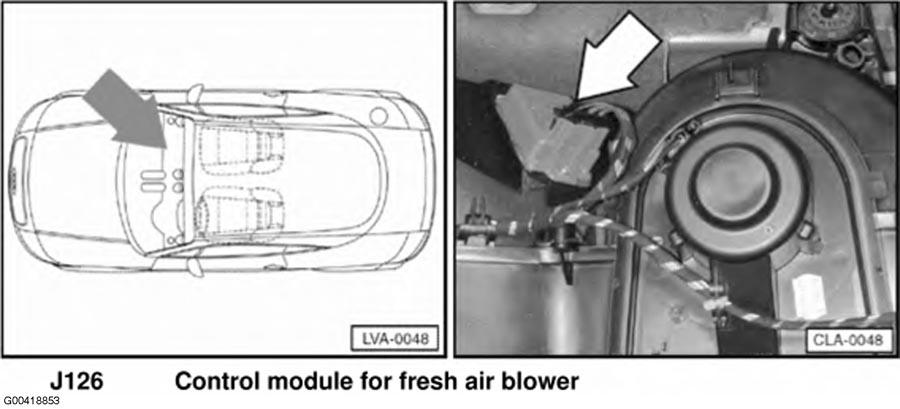

| Fresh Air Blower Control Module | Under right side of dash. See Figure . |

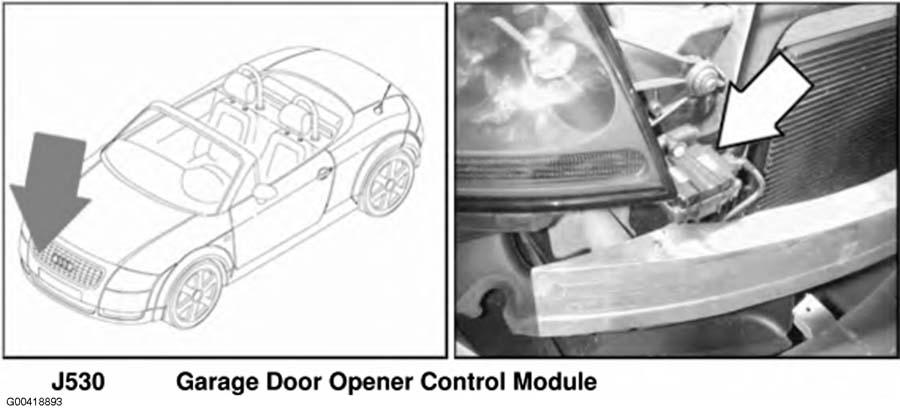

| Garage Door Opener Control Module | Right side of grille. See Figure . |

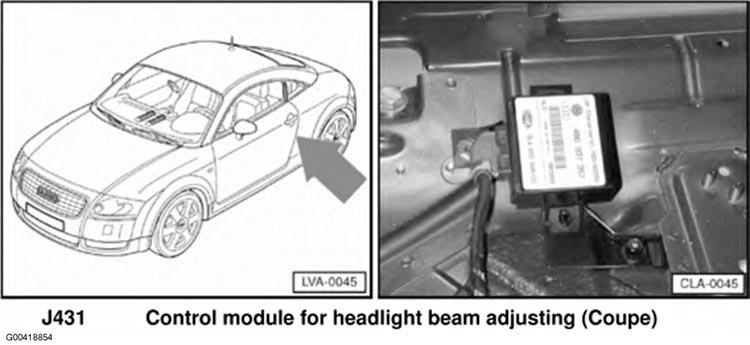

| Headlight Beam Adjusting Control Module (Coupe) | Behind left trim panel. See Figure . |

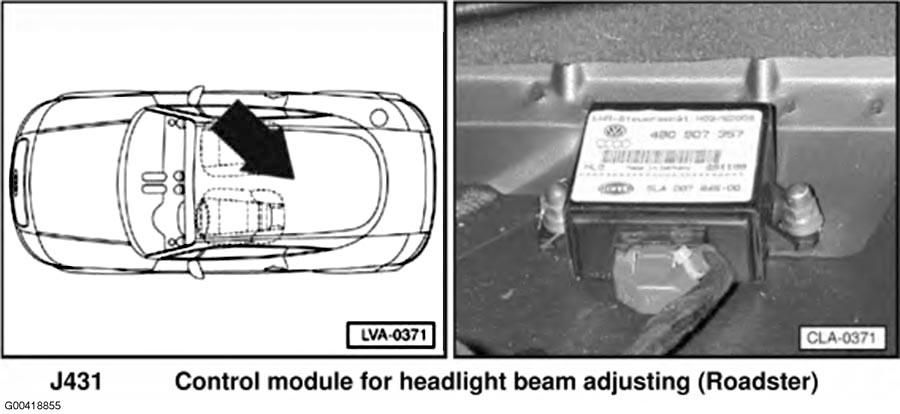

| Headlight Beam Adjusting Control Module (Roadster) | On bulkhead behind seats. See Figure . |

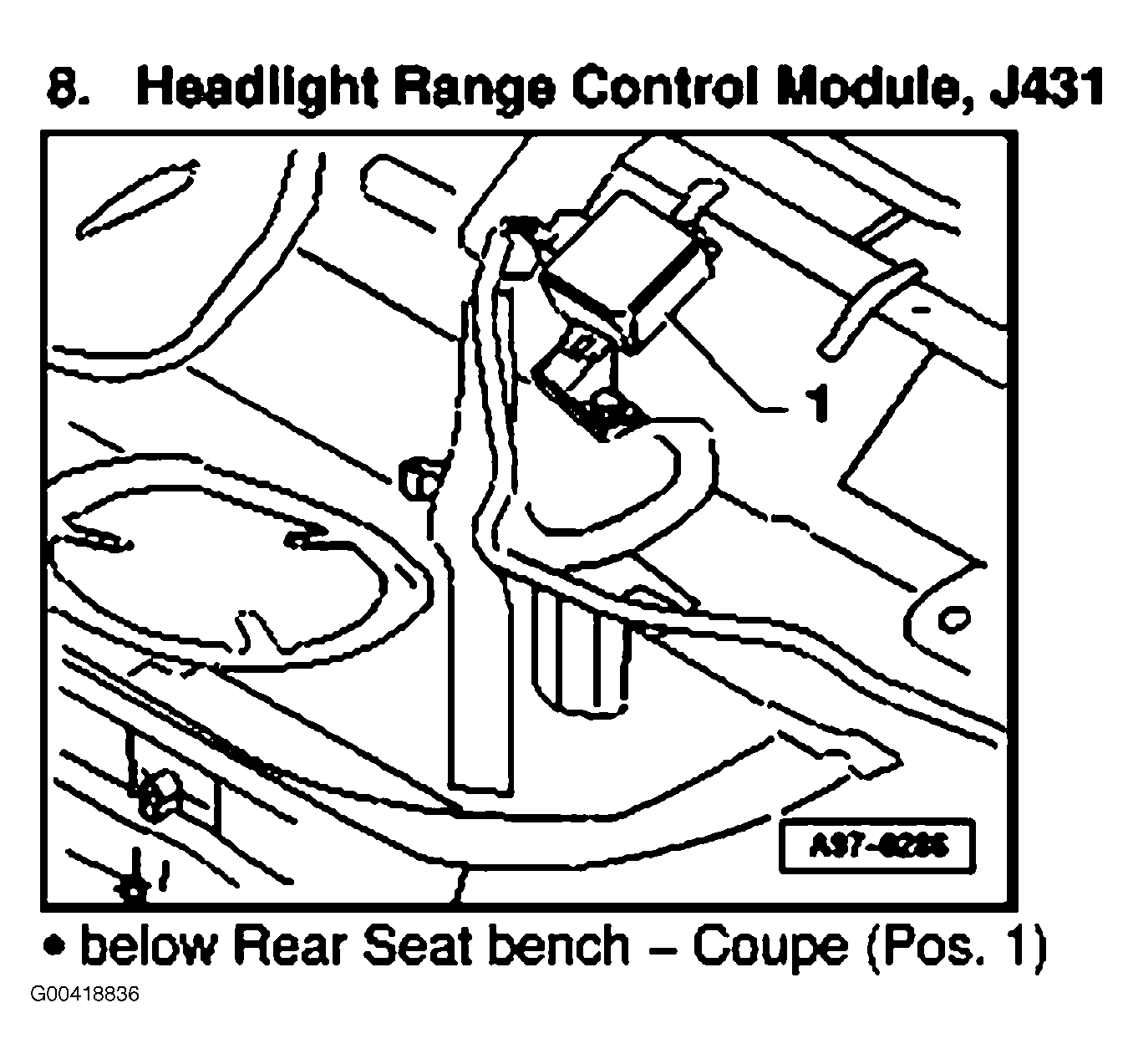

| Headlight Range Control Module | Below rear bench seat. See Figure . |

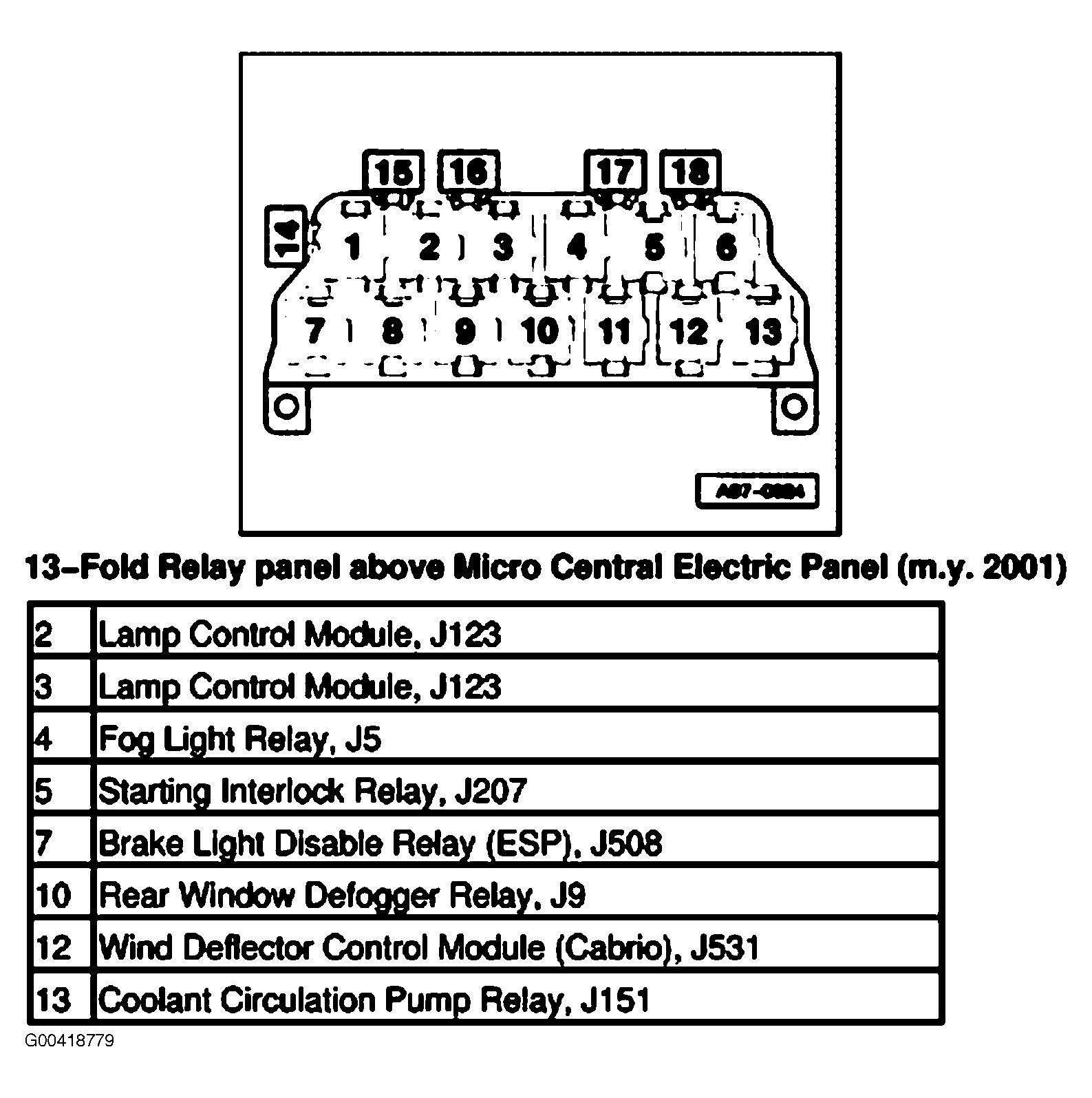

| Lamp Control Module | In 13 fold relay panel. See Figure . |

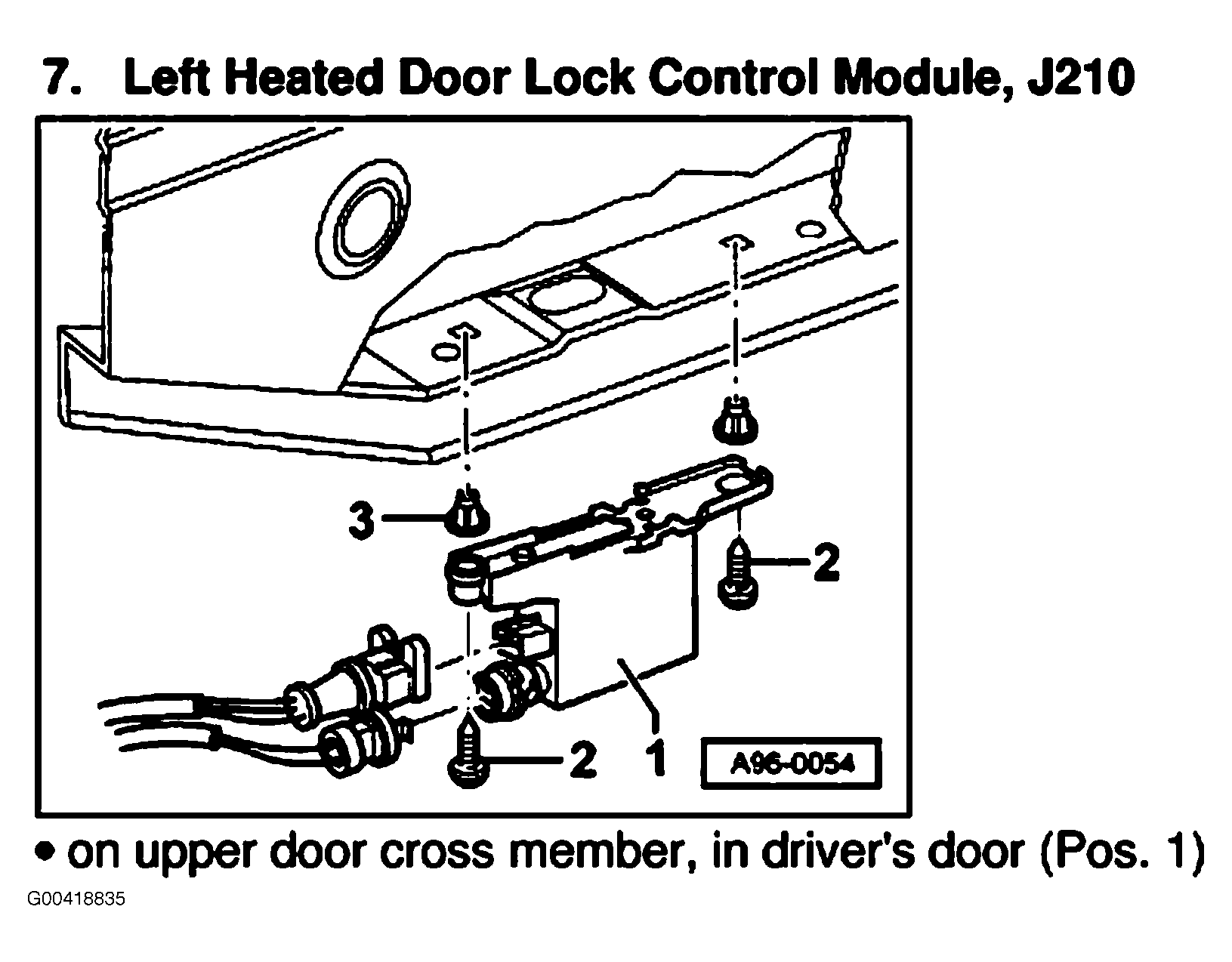

| Left Headed Door Lock Control Module | In driver's door. See Figure . |

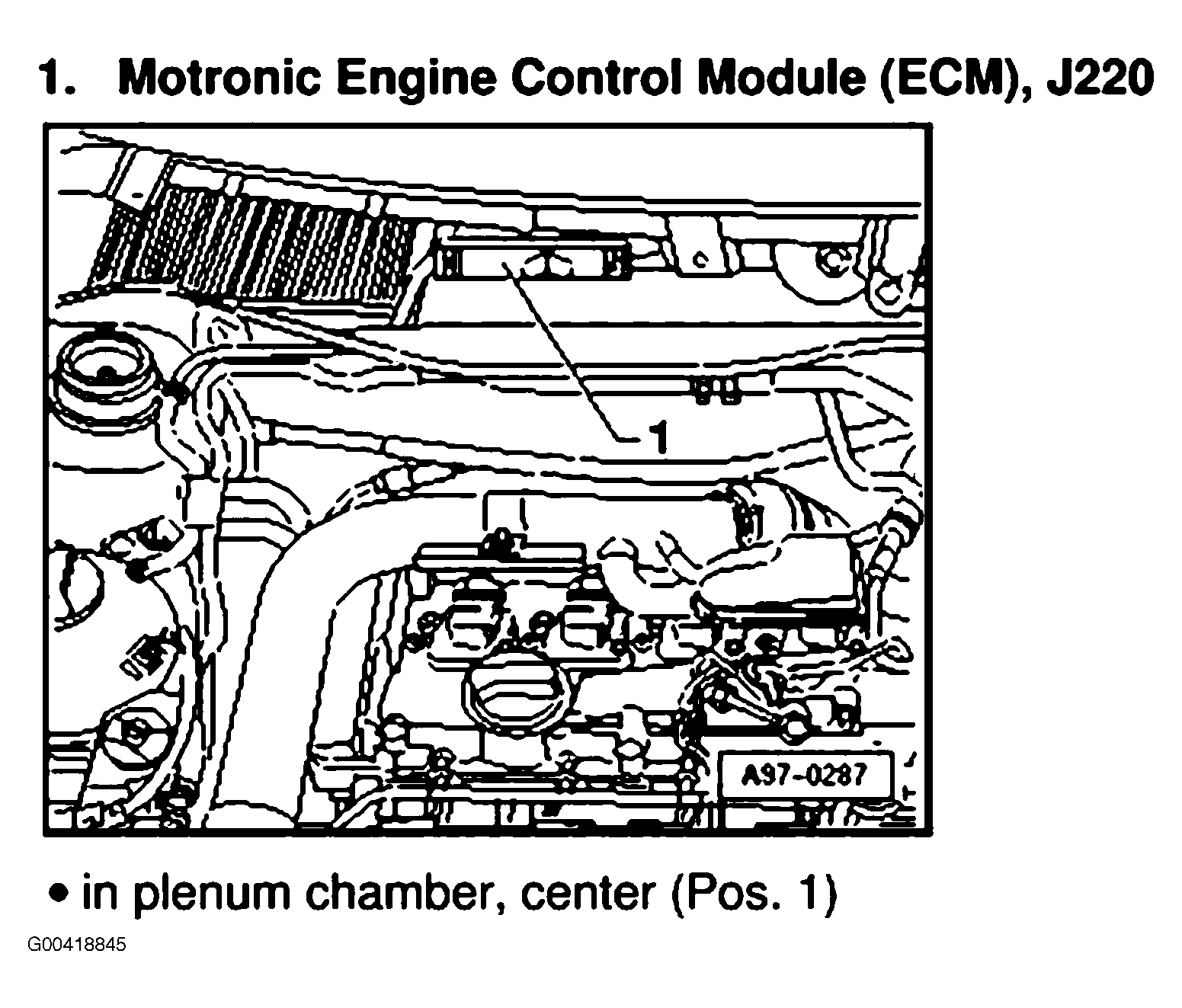

| Motronic Engine Control Module (ECM) | At base of windshield, in center of plenum. See Figure . |

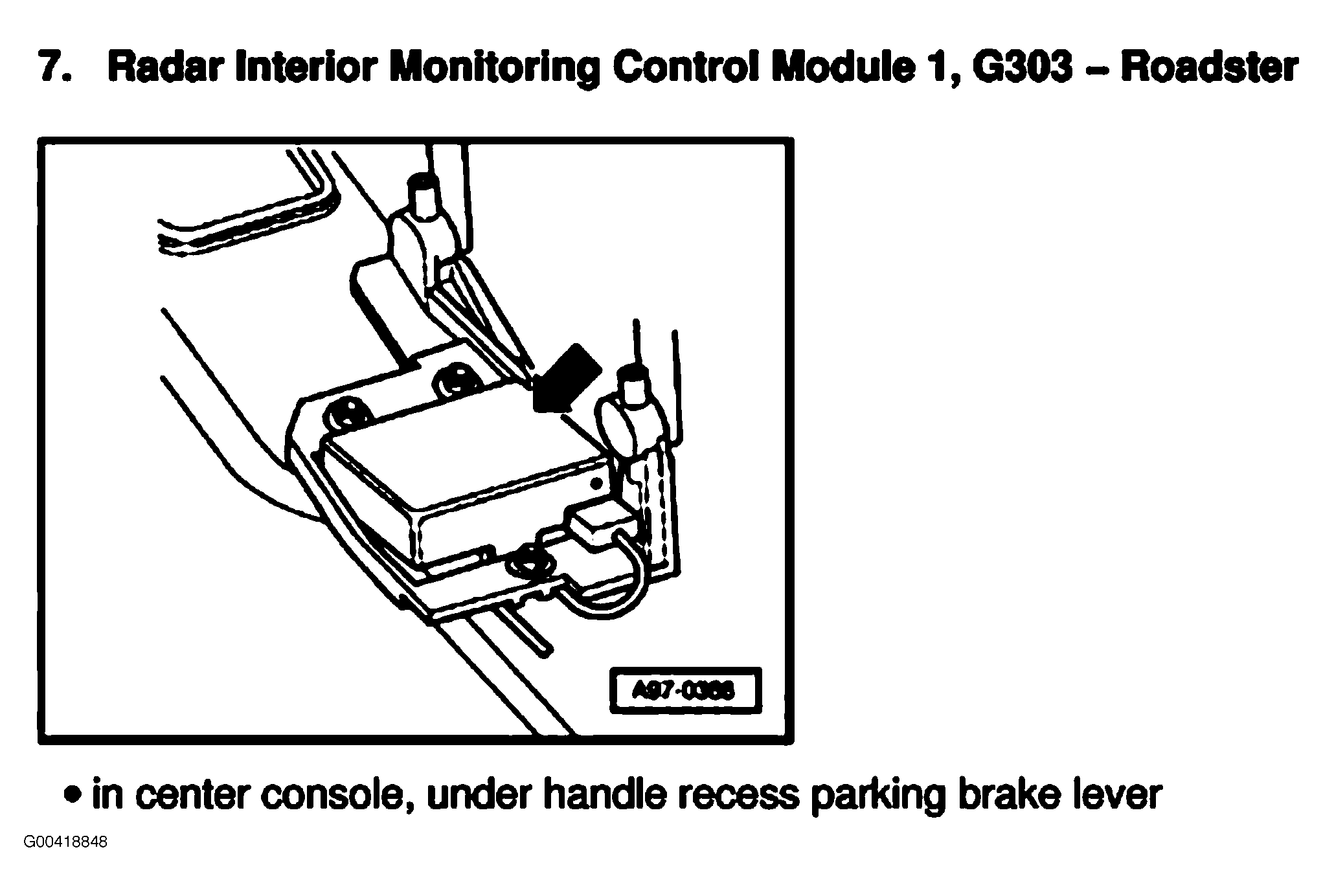

| Radar Interior Monitoring Control Module | In center console. See Figure . |

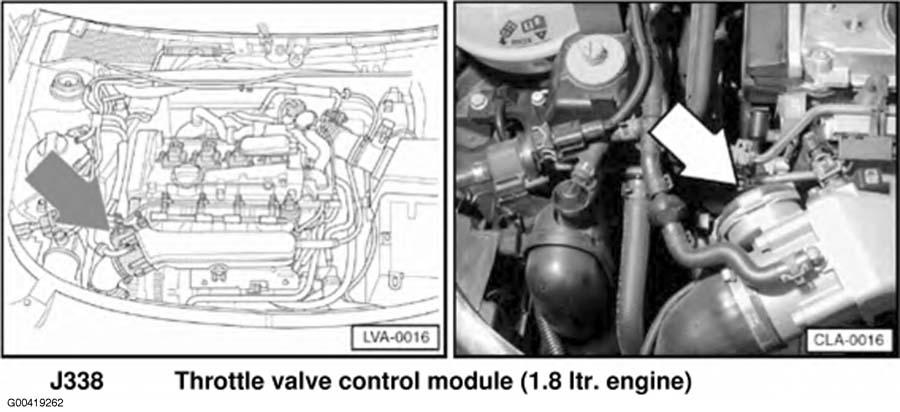

| Throttle Valve Control Module (1.8L) | On throttle body. See Figure . |

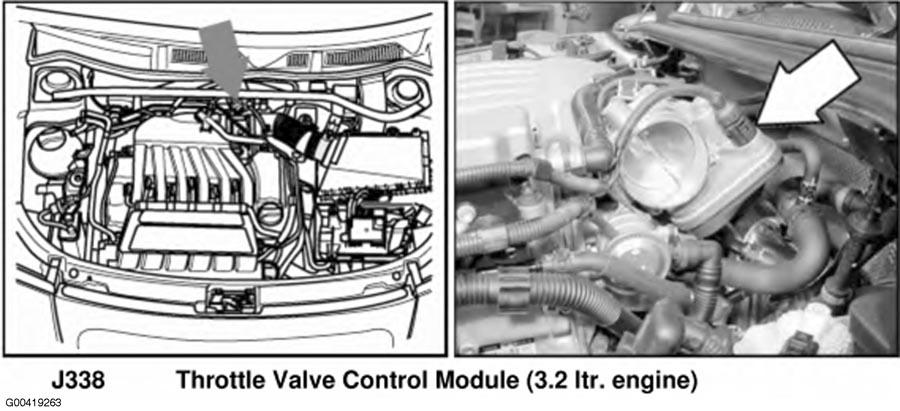

| Throttle Valve Control Module (3.2L) | On throttle body. See Figure . |
| Wind Deflector Control Module (Cabrio) | In 13 fold relay panel. See Figure . |
