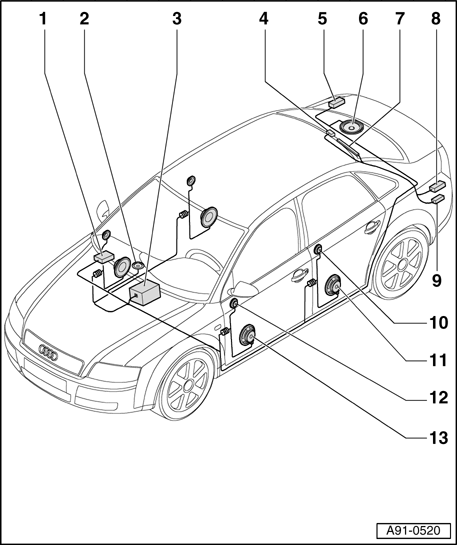

Total overview - Sedan component locations

1 - CD Changer R41

• In glove compartment
• Connections
• Removing and installing → CD Changer R41 , removing and installing

2 - Inside Loudspeaker R70

• In front instrument panel, center
• Removing and installing → Inside Loudspeaker R70 , removing and installing

3 - Operating Electronics, Navigation Control Module J402

• In center console, at top
• Connections
• Removing and installing → Operating Electronics, Navigation Control Module J402 , removing and installing

4 - Navigation System Antenna R50

• Behind roof end trim
• Removing and installing → Navigation System Antenna R50 , Sedan, removing and installing

5 - Digital Sound System Control Module R12

• Behind luggage compartment right side trim
• Connections
• Removing and installing → Amplifier R12 , Sedan, removing and installing
• BOSE connections

• BOSE, removing and installing → BOSE Amplifier R12 , Sedan, removing and installing

6 - Bass Loudspeaker R100

• In parcel shelf
• Removing and installing → Bass Loudspeaker R100 , Sedan, removing and installing

7 - Antenna Selection Control Module J515

• Behind roof end trim
• Connections
• Removing and installing → Antenna Amplifier R24 / Antenna Selection Control Module J515 , sedan, removing and installing

8 - Navigation Interface R94

• Behind luggage compartment left side trim
• Connections
• Removing and installing → Navigation Interface R94 , Sedan, removing and installing

9 - Navigation/TV Tuner J415

• Behind luggage compartment left side trim
• Connections
• Removing and installing → Navigation/TV Tuner J415 , removing and installing

10 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35

• In top of rear doors
• Removing and installing

11 - Left Rear Bass Speaker R15 and Right Rear Bass Speaker R17

• In bottom of rear doors
• Removing and installing

12 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27

• In top of front doors
• Removing and installing

13 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23

• In bottom of front doors
• Removing and installing
