Engine, Installing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Depth Gauge VAS6082
Scissor Lift Table VAS6131A
Support Elements VAS6131/10-8

Tightening Specifications

NOTE:

Tightening specifications only apply to lightly greased, oiled, phosphate or blackened nuts and bolts.

Additional lubricants, such as engine or transmission oil are permissible, although lubricants containing graphite are not.

Do not use any parts that have had the lubrication removed.

Tolerance for tightening specifications +/- 15%.

Component		Nm
Bolts/nuts	M6	9
	M7	15
	M8	20
	M10	40
	M12	65
Exceptions:
Drive plate to torque converter		85 ¹⁾
¹⁾ Replace the bolts; only use original equipment bolts. Refer to the Parts Catalog.

Subframe mount, refer to SUBFRAME MOUNT OVERVIEW .

Automatic Transmission to Engine Fastener

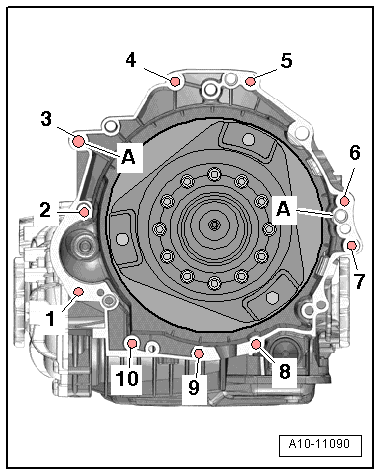

Fig 1: Automatic Transmission To Engine Fastener And Alignment Sleeves -A- (3.0L, Engine Code CCAA)

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt	Nm
1	M10 x 100 ¹⁾	65
2, 6	M12x120	65
3, 4, 5	M12 x 105	65
7	M12x130	65
8, 9, 10	M10x80	45
A	Alignment sleeves for centering
¹⁾ Bolt class 10.9.

Installing

NOTE:

Replace bolts which have been tightened to an additional torque.

Replace self-locking nuts and bolts as well as sealing rings, seals and O-rings.

To secure torque converter to the drive plate, use new original bolts. Refer to parts .

Always clean threaded bores in transmission flanged shaft for driveshaft of locking fluid residue using a tap before installation.

The hose connections as well as the air guide pipes and hoses must be free of oil and grease before installing.

Secure all hose connections with hose clamps appropriate for the model. Refer to parts. .

In order to be able to securely mount the air guide hoses on their connectors, spray the screws on the previously used clamps with a rust remover.

During installation, all cable ties must be installed at the same location.

-- Install the left and right engine supports.

-- Check whether fitting sleeves for centering engine and transmission in cylinder block are present, insert missing fitting sleeves.

Installation dimension for torque converter, checking.

CAUTION:

Risk of destroying ATF pump coupling plate by inserting torque converter incorrectly.

Check torque converter installation dimension.

When torque converter is installed correctly, distance -a- between contact surface of threaded holes at torque converter and contact surface of bell housing on automatic transmission is at least 19 mm.

Fig 2: Checking Installation Dimension For Torque Converter
Courtesy of AUDI OF AMERICA, LLC

-- Before connecting engine and transmission, rotate torque converter and engine drive plate so that one hole or one threaded hole stands at height of opening of the removed starter -arrow-.

Fig 3: Identifying Torque Converter Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install intermediate plate between engine and transmission onto alignment bushings.

CAUTION:

Risk of destroying transmission due to torque converter inserted incorrectly.

Keep checking whether the torque converter behind the drive plate can be turned before and during tightening of the bolts at engine/transmission connection.
If torque converter cannot be rotated, the ATF pump coupling plate and therefore the transmission are destroyed when connections are tightened to final torque.

-- Position the transmission on the engine and tighten the bolts -3 through 10-.

Fig 4: Automatic Transmission To Engine Fastener And Alignment Sleeves -A- (3.0L, Engine Code CCAA)

Courtesy of AUDI OF AMERICA, LLC

The rest of the installation is performed in reverse order of removal, noting the following.

-- Install the starter. Refer to STARTER .

-- Secure the ATF pipes. Refer to ATF PIPES .

-- Install the front exhaust pipes. Refer to LEFT FRONT EXHAUST PIPE WITH CATALYTIC CONVERTER , RIGHT EXHAUST PIPE WITH CATALYTIC CONVERTER .

-- Turn spindle of the left support element on engine downward.

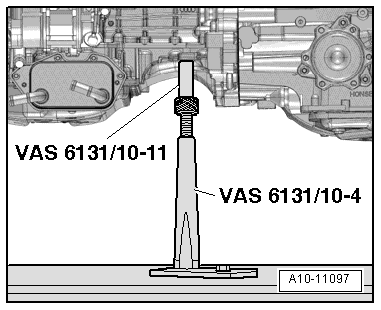

Fig 5: Attaching Mounting Elements VAS6131/10 On Left Side Of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left support element base plate from the Scissor Lift Table VAS6131A.

-- Turn the spindle of the right support element on the engine downward.

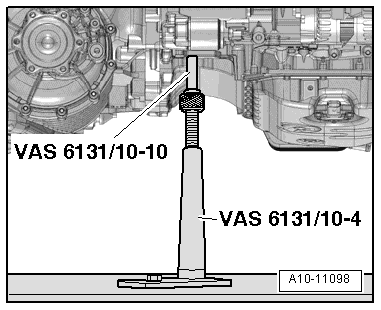

Fig 6: Attaching Mounting Elements VAS6131/10 On Right Side Of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right support element base plate from the Scissor Lift Table VAS6131A.

-- Rotate the front attachment element spindles on the transmission down.

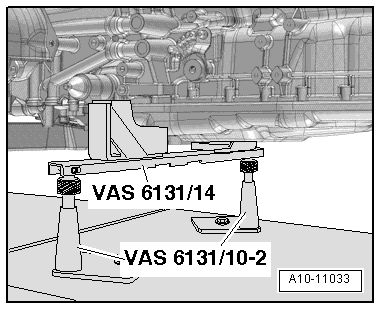

Fig 7: Identifying Gearbox Support VAS 6131/14

Courtesy of AUDI OF AMERICA, LLC

-- Remove the support element base plates from the Scissor Lift Table VAS6131A.

NOTE:

Support points for front of engine, transmission and tunnel cross member remain unchanged.

-- Equip the Scissor Lift Table VAS6131A with the Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - A8 Set VAS6131/11 as follows:

Fig 8: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

Platform Coordinates	Parts from Scissor Lift Table - Audi SetVAS6131/10 and Scissor Lift Table - A8 SetVAS6131/11
B4	/10-1	/10-4	/10-5	/10-13
F4	/10-1	/10-4	/10-5	/10-12
B10 ²⁾	/10-1	/10-2	/10-5	/10-8
G10 ²⁾	/10-1	/10-2	/10-5	/10-8
C15	/10-1	/10-3	/10-5	/11-2
F15	/10-1	/10-3	/10-5	/11-2
¹⁾ The support elements remain unchanged. ²⁾ Only install support elements after installing subframe.

NOTE:

A second technician is required to position subframe onto support elements.

-- Mount the subframe on both Support Elements VAS6131/10-8.

Fig 9: Positioning Support Elements From Support Set VAS 6131/10 At Left/Right On Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the support element spindles on both sides up.

-- Attach mounting element base plates to the Scissor Lift Table VAS6131A and tighten to 20 Nm.

-- Slowly guide the engine/transmission subassembly and the subframe using the Scissor Lift Table VAS6131A from underneath into the body.

-- Align the subframe and engine mount brackets using the marks made on the longitudinal members during removal.

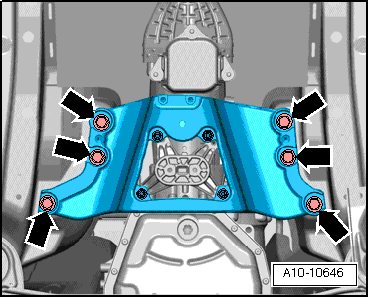

Fig 10: Identifying Subframe Bolts 1 Through 4

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the subframe bolts and engine mount brackets only to the tightening specifications, do not tighten them further (tighten the bolts only after axle alignment). Refer to Special Tools .

WARNING:

Risk of accident due to loose connections.

If the bolts in the subframe are not tightened to final torque, vehicle must not be driven.

-- Tighten the tunnel crossmember bolts. Refer to Tightening Specifications .

Fig 11: Removing Bolts At Tunnel Cross Member

Courtesy of AUDI OF AMERICA, LLC

The rest of the installation is performed in reverse order of removal, noting the following:

-- Install the selector lever cable and check adjustment. Refer to SELECTOR LEVER CABLE .

-- Install the drive axles, guide control arms, control arms, stabilizer bar, coupling rods and suspension struts. Refer to REMOVAL AND INSTALLATION .

-- Install the front transverse beam. Refer to TRANSVERSE SUPPORT (DOME BRACE) .

-- Install the driveshaft. Refer to REMOVAL AND INSTALLATION .

-- Install exhaust system free of stress. Refer to EXHAUST SYSTEM, INSTALLING .

-- Install A/C compressor. Refer to COMPRESSOR WITH PULLEY, REMOVING AND INSTALLING AT BRACKET .

-- Install the power steering pump hydraulic pipe. Refer to POWER STEERING PUMP, HYDRAULIC LINES AND RESERVOIR OVERVIEW .

-- Install the fuel supply hose. Refer to HIGH PRESSURE LINE .

-- Install the ribbed belt. Refer to RIBBED BELT .

-- Install the torque support. Refer to TORQUE SUPPORT .

-- Electrical connections and routing. Refer to appropriate SYSTEM WIRING DIAGRAM.

-- Follow the instructions for connecting the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

CAUTION:

Risk of destroying control modules with excess voltage.

Do not use a battery charger for starting assistance!

-- Install and adjust the windshield wiper arms. Refer to WIPER ARM .

-- Install the tower brace. Refer to TOWER BRACE .

-- Check oil level. Refer to ENGINE, CHECKING OIL LEVEL .

-- Before starting engine for the first time, check the fluid level in power steering reservoir. Refer to POWER STEERING FLUID, CHECKING .

NOTE:

The power steering pump must not run dry.

-- Fuel system, bleeding. Refer to BEFORE OPENING HIGH PRESSURE FUEL INJECTION SYSTEM .

-- Fill with coolant COOLING SYSTEM, DRAINING AND FILLING .

NOTE:

Do not use drained coolant in the following situations:

If the cylinder head or cylinder block was replaced.

If the coolant is contaminated.

-- Check ATF level. Refer to ATF LEVEL, CHECKING AND CORRECTING .

-- Align the subframe and both engine mount brackets. Refer to SUBFRAME .

-- Install the front wheels. Refer to RUN-FLAT TIRES, INSTALLING .

-- Perform an axle alignment. Refer to AXLE ALIGNMENT CONTROL POSITION, WITH AIR SPRING SUSPENSION, CHECKING .

WARNING:

Risk of accident due to loose connections.

Tighten subframe bolts to final torque after axle alignment.

-- Install the noise insulation. Refer to NOISE INSULATION OVERVIEW .
