Overview - Control Module For Adaptive Cruise Control

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

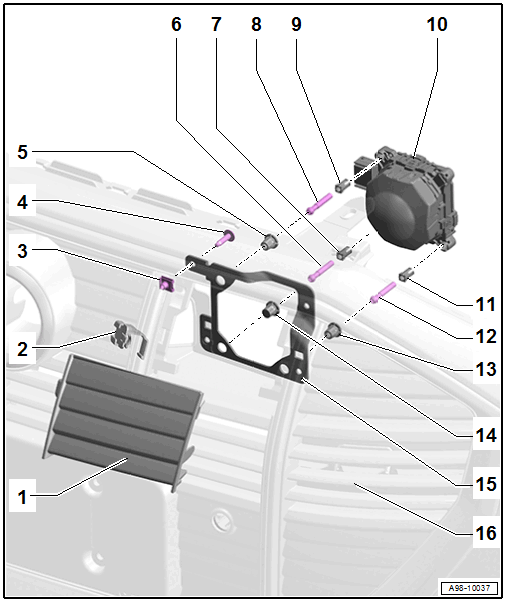

Fig 1: Exploded View Of Adaptive Cruise Control Control Module

Courtesy of AUDI OF AMERICA, LLC

Cover
- With Heating Element for Adaptive Cruise Control Radar Sensor - Z185-
- Removing and installing. Refer to Heating Element for Adaptive Cruise Control Radar Sensor - Z185-, REMOVING AND INSTALLING .
Bracket
- For the connector
Spring Nut
- Quantity: 4
Bolt
- 4 Nm
- Quantity: 4
Clip
- Open version
- Cannot be removed without being damaged
Stud Bolt
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the Digital Caliper: VAS6335 and correct if necessary. .
Clip
- Must be replaced when the stud bolt is removed
- Replacing. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING .
Stud Bolt
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the Digital Caliper: VAS6335 and correct if necessary. .
Clip
- Must be replaced when the stud bolt is removed
- Replacing. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING .
Control Module for Adaptive Cruise Control -J428-
- Removing and installing. Refer to Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING .
- Adjusting. Refer to RADAR SENSOR (Control Module for Adaptive Cruise Control -J428-), ADJUSTING .
Clip
- Must be replaced when the stud bolt is removed
- Replacing. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING .
Stud Bolt
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at all stud bolts using the Digital Caliper: VAS6335 and correct if necessary. .
Clip
- Open version
- Cannot be removed without being damaged
Clip
- Closed version
- Cannot be removed without being damaged
- Note the installation position
Retaining Plate
- Removing and installing. Refer to RETAINING PLATE FOR Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING .
Radiator Grille
