Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| ABS Diode | Behind dash, to left of steering column. | |
| A/C Compressor Clutch Diode | In connector, at compressor. | |
| ALDL Connector | Under right side of dash, to right of parking brake. See Figure . | |
| Brake Switch Capacitor | Above brake pedal, on brake switch. | |
| Central Power Supply (CPS) | Under left side of dash, above brake pedal. | |
| Cruise Control Servo | On rear of engine. | |
| Instrument Panel Electroluminescent Inverter (Riviera & Reatta) | On left rear side of instrument cluster. | |

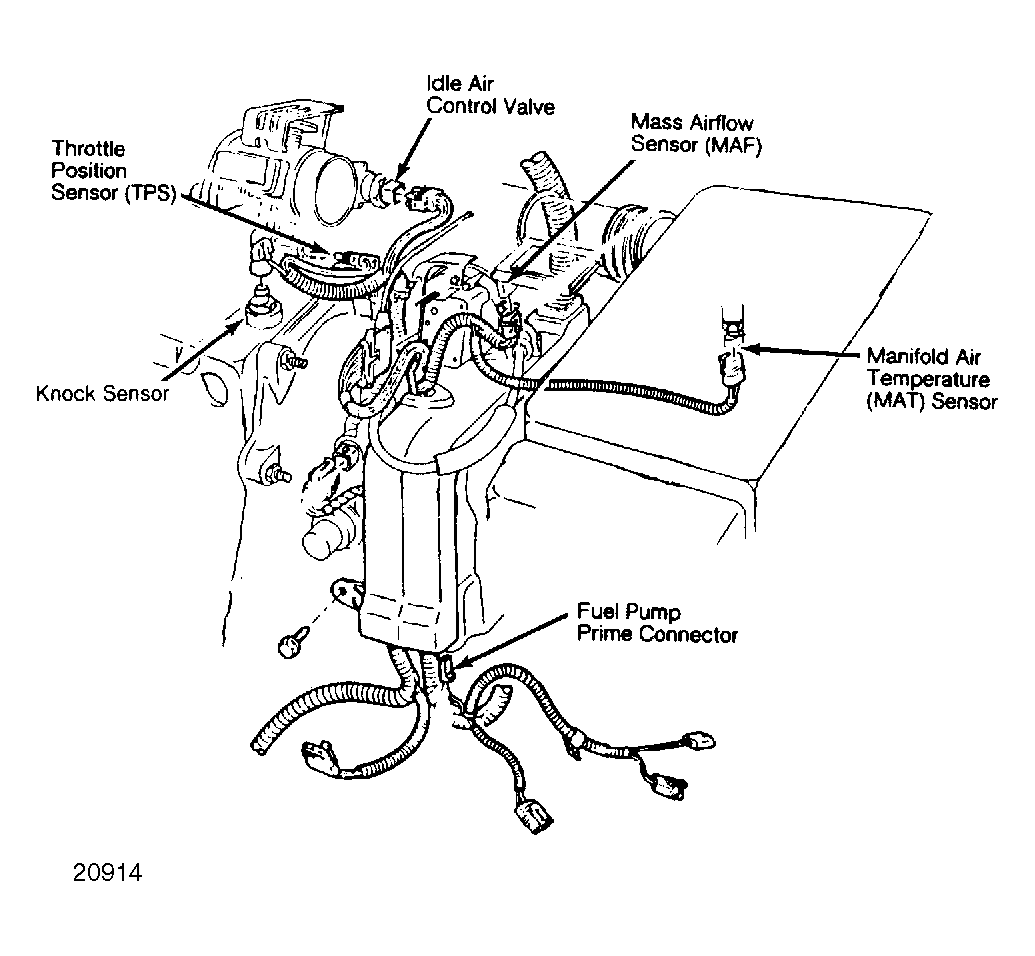

| Fuel Pump Prime Connector | In wiring harness, on left front side of engine compartment. See Figure . | |
| Interior Relay Center | ||
| Reatta & Riviera | Under center of dash, on right front side of console. See Figure . | |
| Toronado | Behind right side of dash, behind glove box. See Figure . | |
| Power Junction Block | On right front inner fender panel, behind battery. See Figure . | |
| Twilight Sentinel Photocell | Under center of dash pad. | |

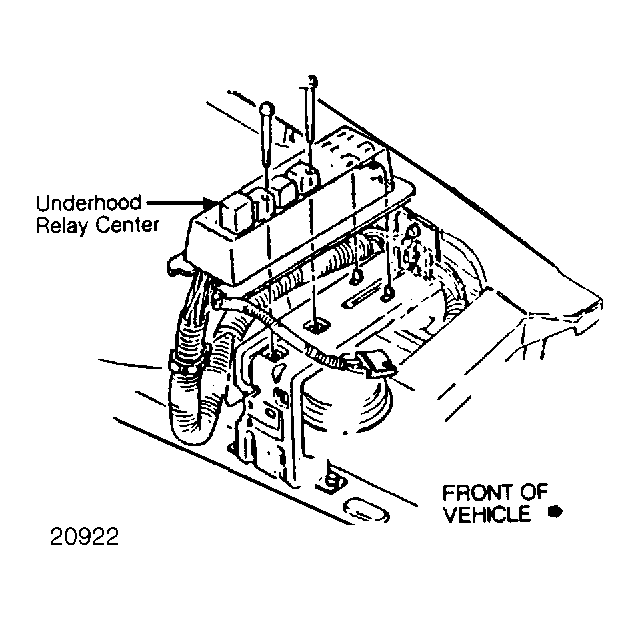

| Underhood Relay Center | On left front inner fender panel, behind headlight. See Figure . | |
