Radiator Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

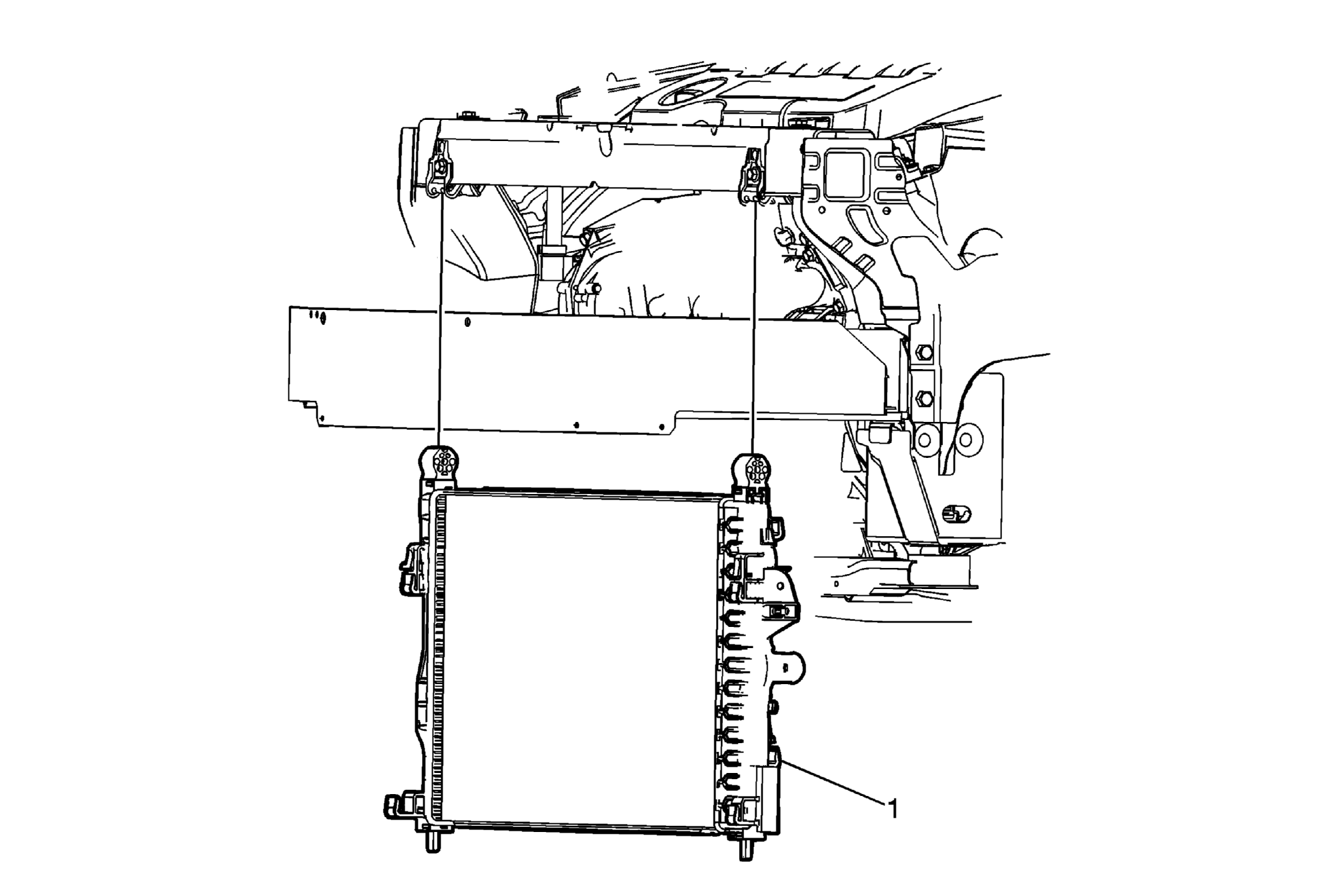

Fig 1: Radiator
GM2213435Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716)  or Cooling System Draining and Filling (Static Fill) .
  2. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LAF)  or Radiator Inlet Hose Replacement (LDK or LHU) .
  3. Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LAF)  or Radiator Outlet Hose Replacement (LDK or LHU) .
  4. Remove transmission oil cooler lines. Refer to Fluid Cooler Inlet Hose Replacement and Fluid Cooler Outlet Hose Replacement .
  5. Disconnect the engine coolant fan harness electrical connectors.
  6. Remove the radiator support brackets. Refer to Radiator Support Bracket Replacement .
  7. Support the condenser to the core support.
1 Radiator

Procedure

  1. Release condenser assembly retainers (Qty: 2)
  2. Remove the engine coolant fan shroud from the radiator. Refer to Engine Coolant Fan Shroud Replacement .
