Installation Procedure

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

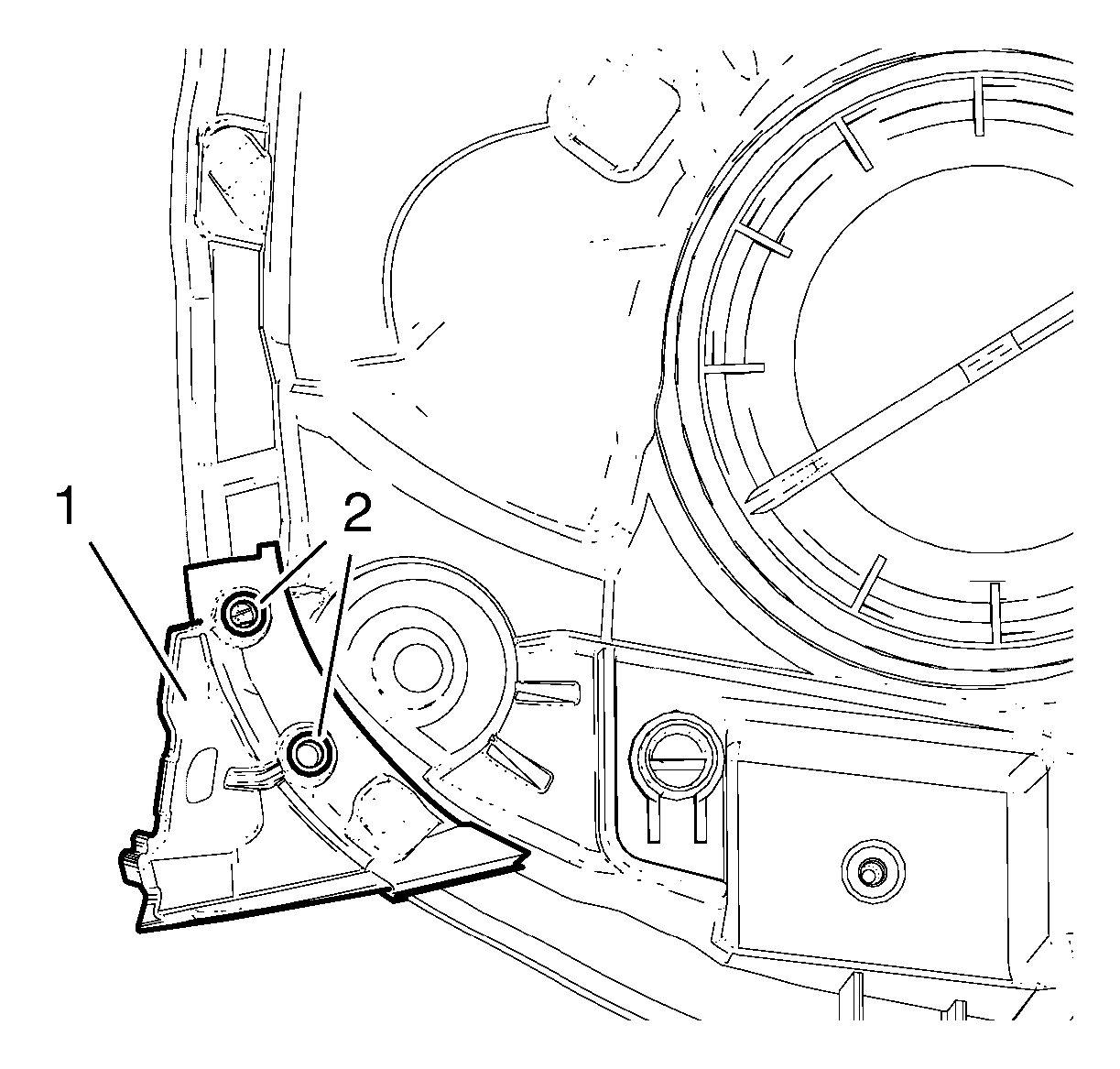

Fig 1: Encircled Hole And Bracket

Courtesy of GENERAL MOTORS COMPANY

Bracket 5: Screw the bracket (1) on through the encircled hole (2).

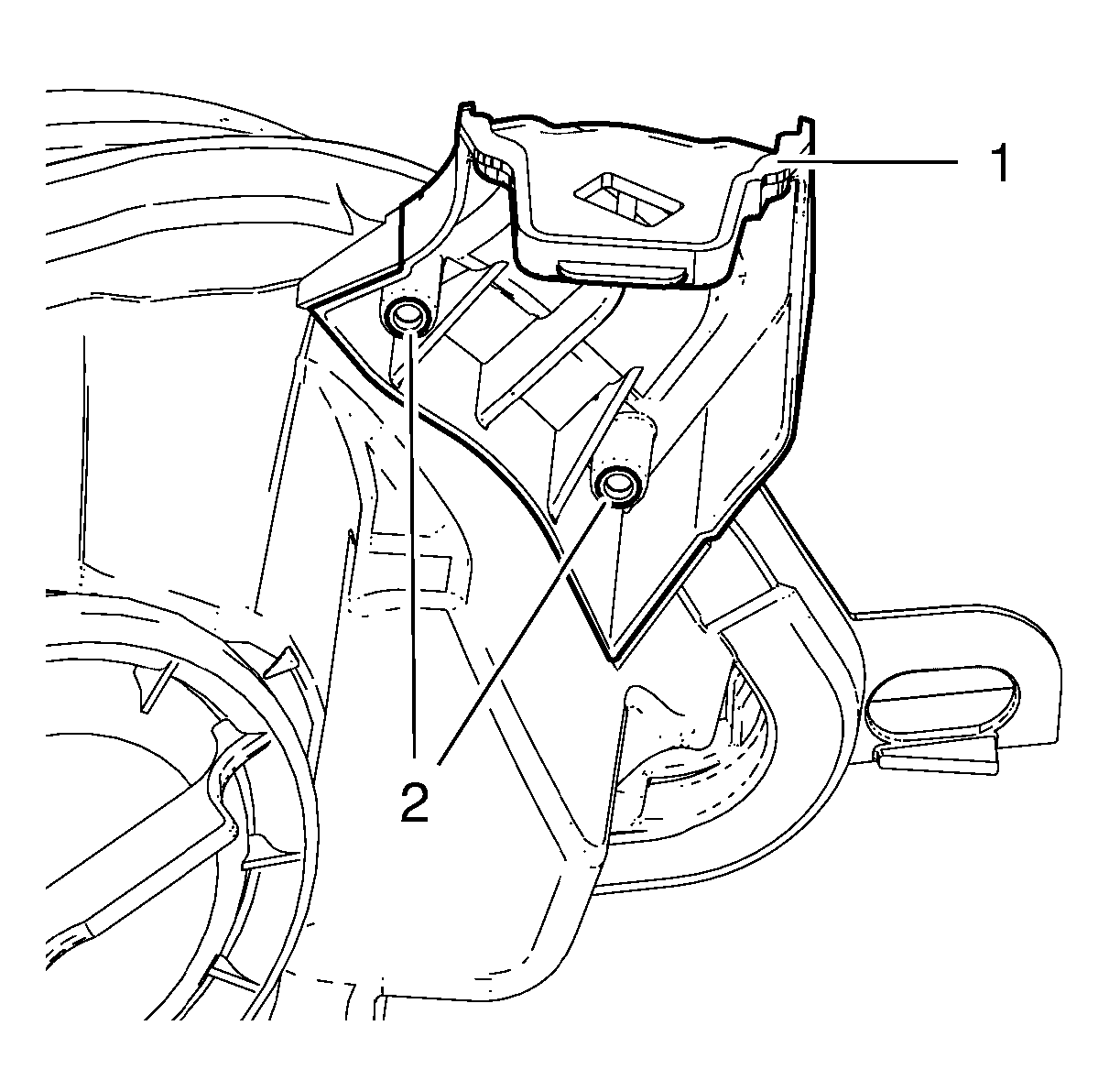

Fig 2: Encircled Holes And Bracket

Courtesy of GENERAL MOTORS COMPANY

Bracket 4: Screw the bracket (1) on through both encircled holes (2) (one screw from each side).

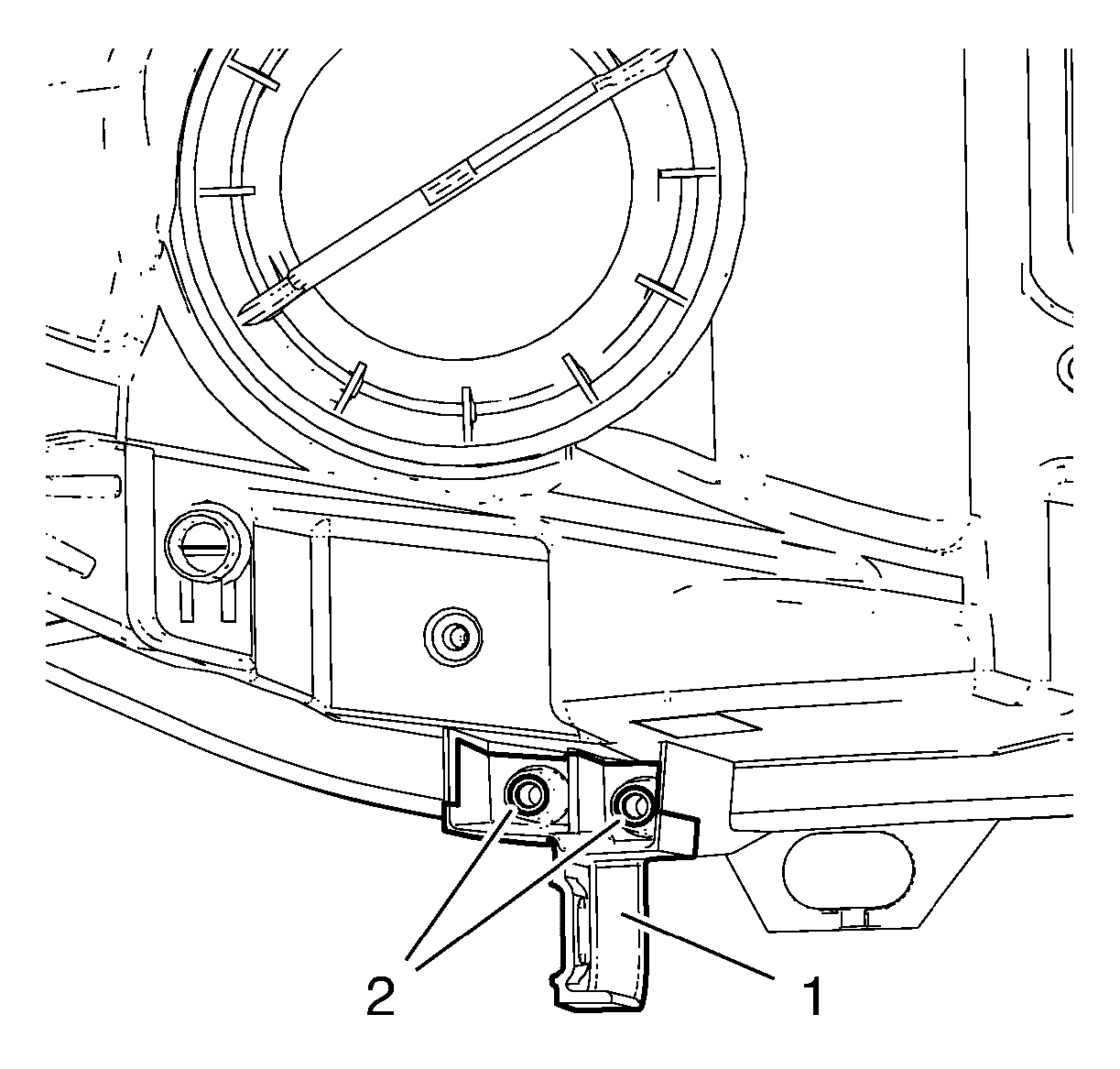

Fig 3: Encircled Holes And Bracket

Courtesy of GENERAL MOTORS COMPANY

Bracket 3: Screw the bracket (1) on through the encircled holes (2).

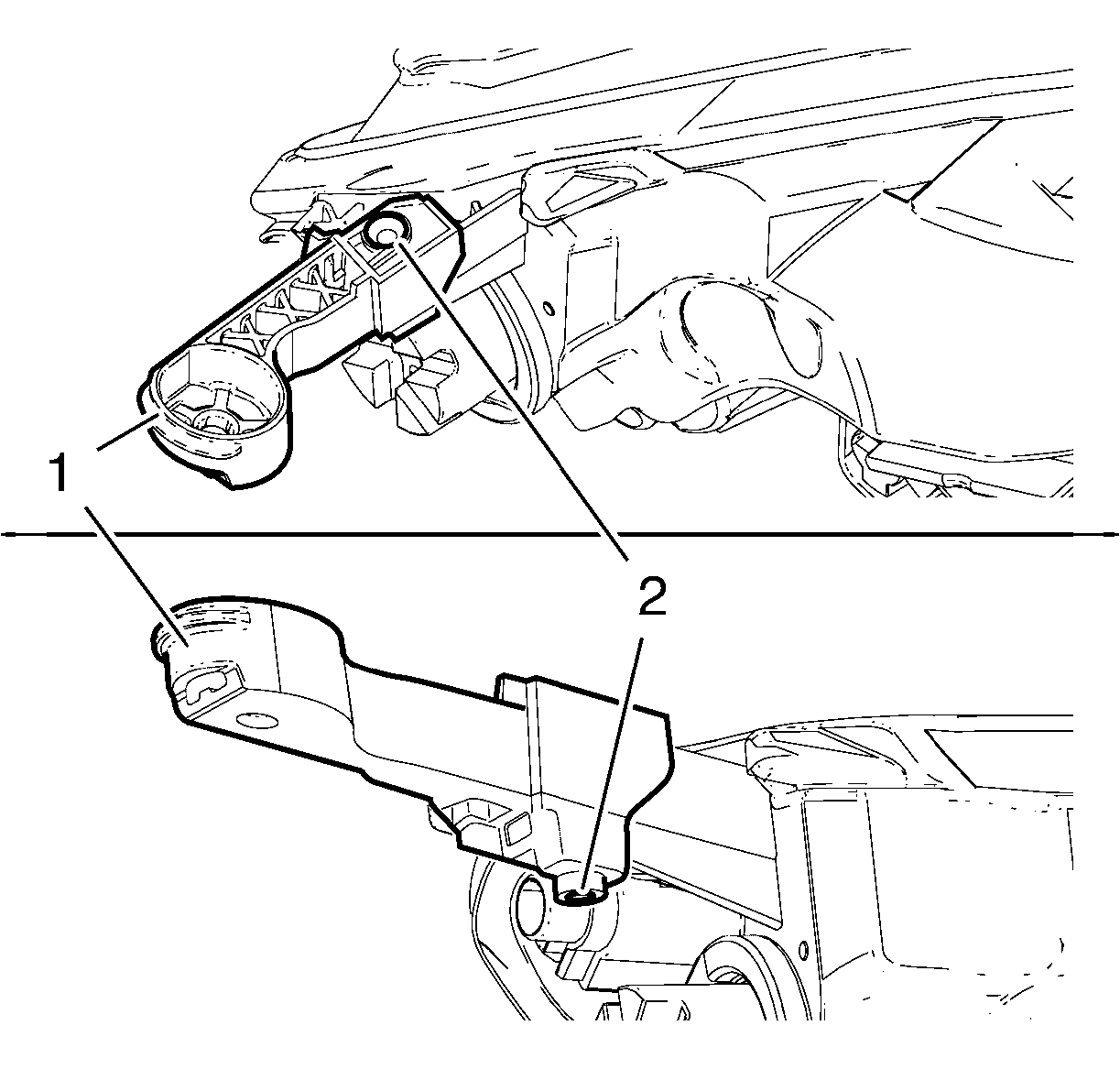

Fig 4: Encircled Holes And Bracket

Courtesy of GENERAL MOTORS COMPANY

Bracket 2: Screw the bracket (1) on through the encircled holes (2).

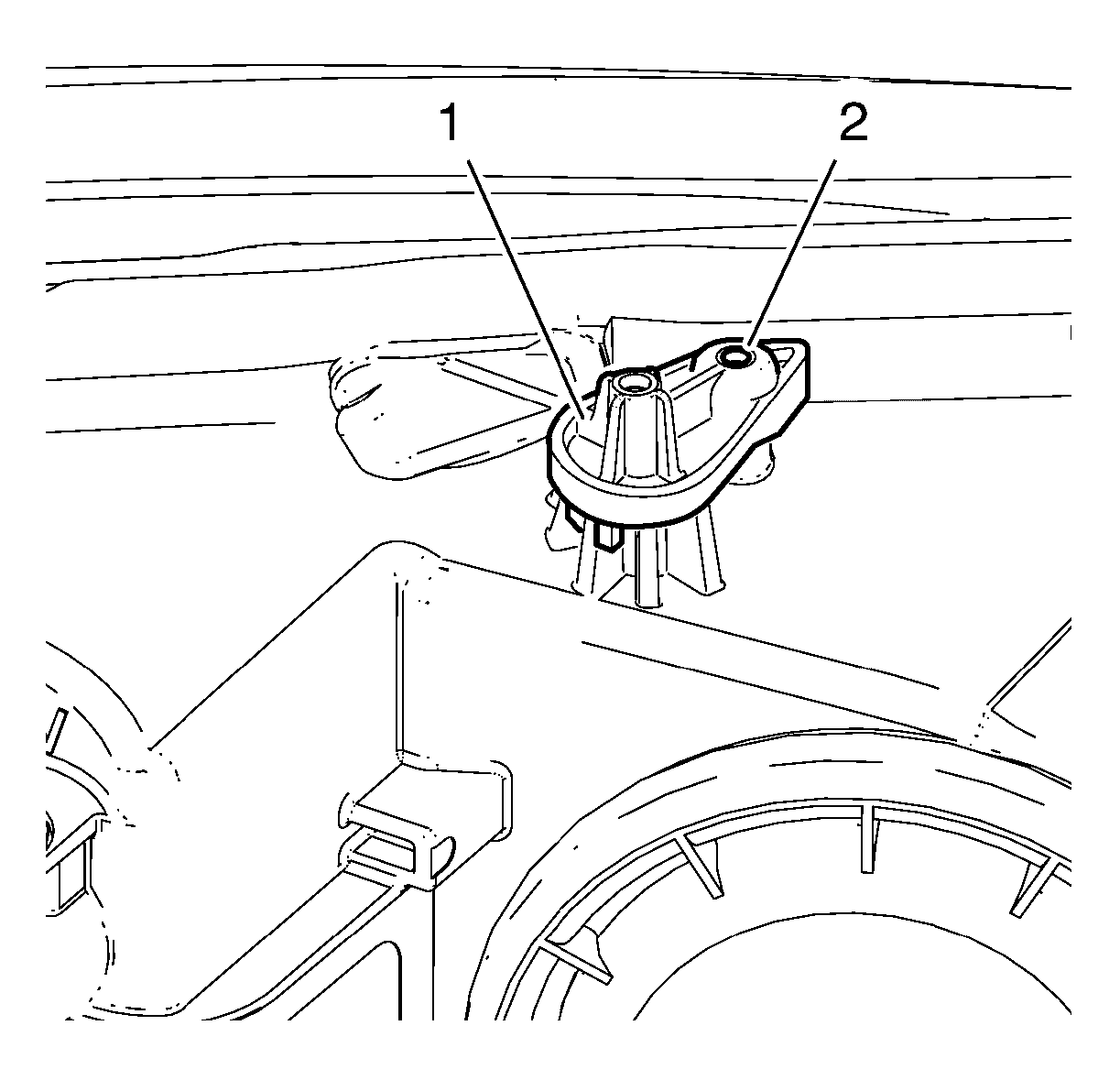

Fig 5: Encircled Holes And Bracket

Courtesy of GENERAL MOTORS COMPANY

Bracket 1: Screw the bracket (1) on through the encircled holes (2).
Install the headlamp. Refer to Headlamp Replacement (Halogen) .
