Navigation Signal Splitter Bracket Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

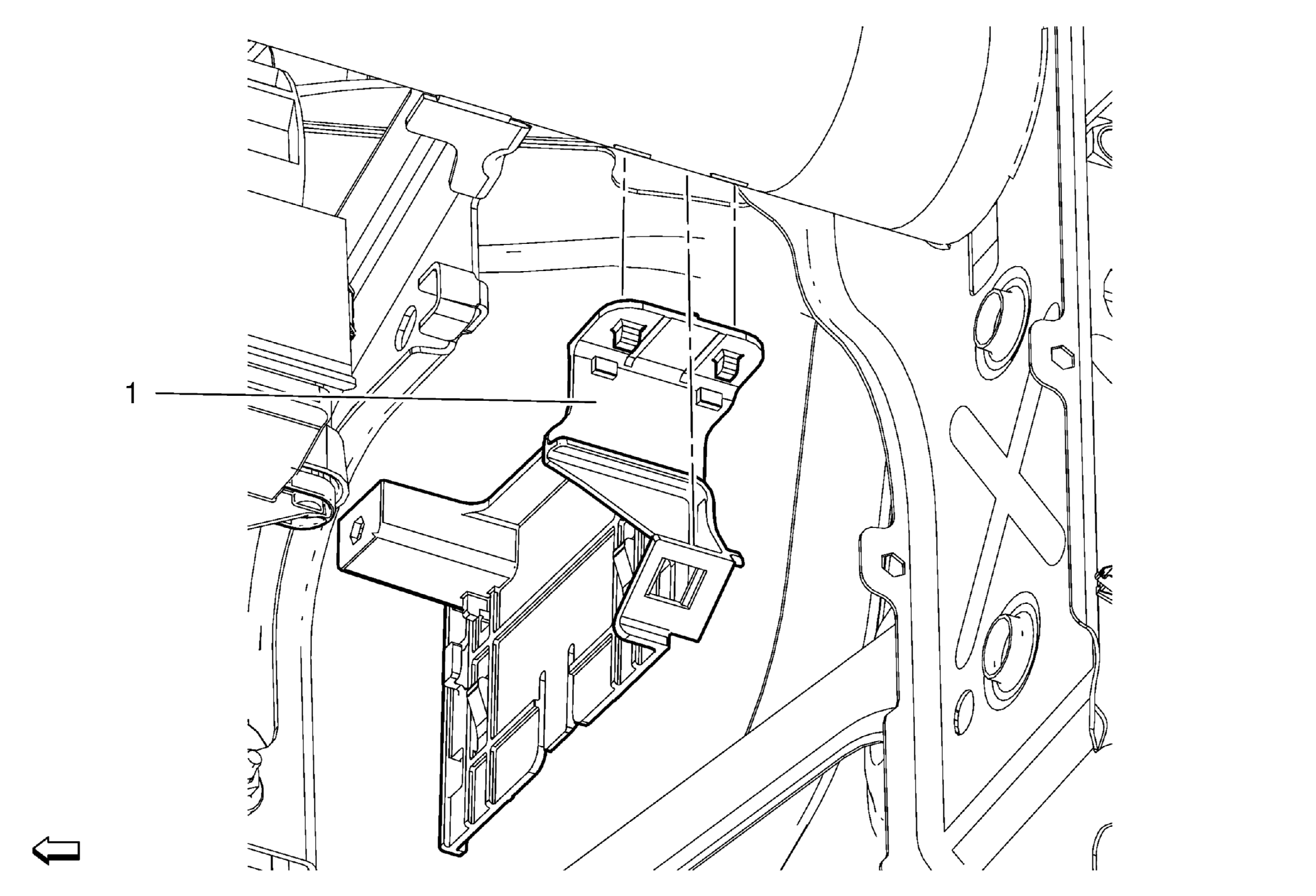

Fig 1: Navigation Signal Splitter Bracket
GM2191551Courtesy of GENERAL MOTORS COMPANY
Navigation Signal Splitter Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove navigation signal splitter. Refer to Navigation Signal Splitter Replacement .
1 Navigation Signal Splitter Bracket
Procedure
Unclip from instrument panel tie bar.
