Communication Interface Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

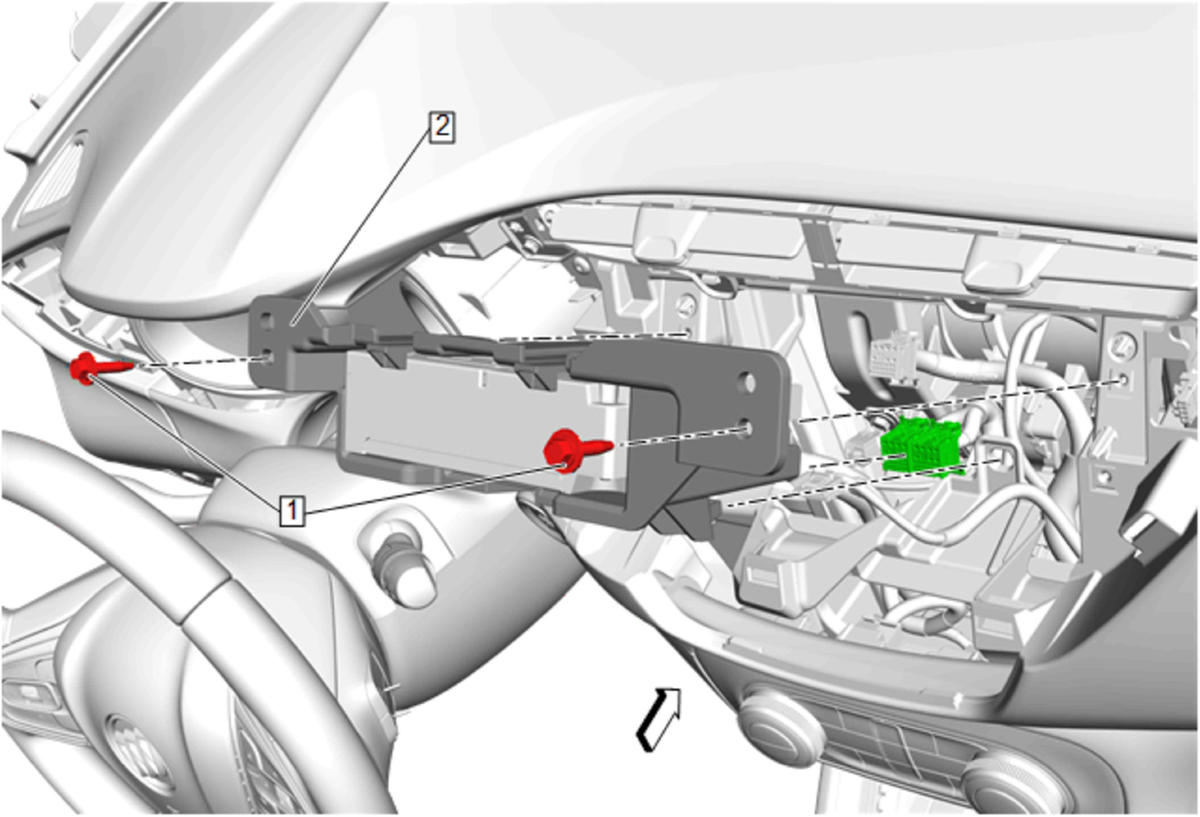

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Plate Replacement
1	Communication Interface Module Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure Disconnect all electrical connectors. Remove the communication interface module. Communication Interface Module Replacement

Callout

Component Name

Communication Interface Module Bracket Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure

Disconnect all electrical connectors.
Remove the communication interface module. Communication Interface Module Replacement
