Communication Interface Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Communication Interface Module Bracket Replacement

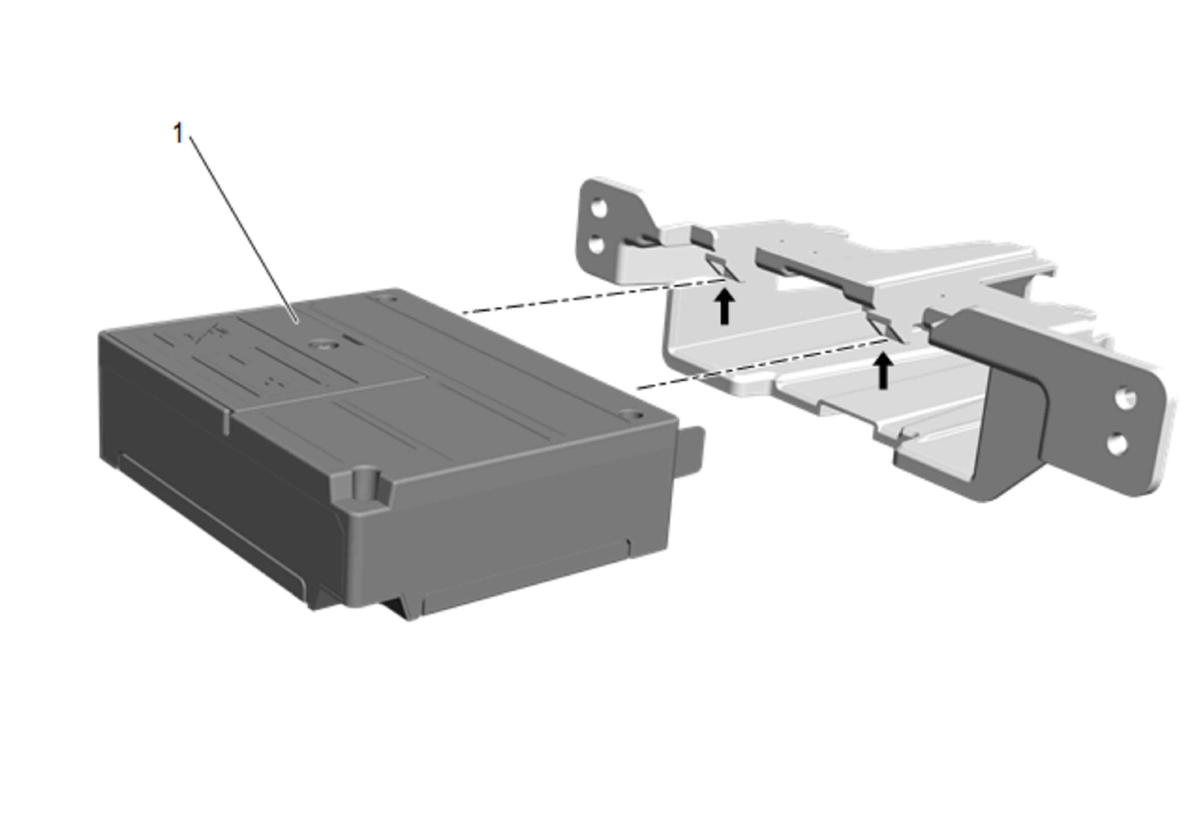

1	Communication Interface Module Procedure Push the retaining tabs outward and slide the module upward. If required, perform the programming and setup procedures. Control Module References

Callout

Component Name

Communication Interface Module

Procedure

Push the retaining tabs outward and slide the module upward.
If required, perform the programming and setup procedures. Control Module References
