Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component |
Location |

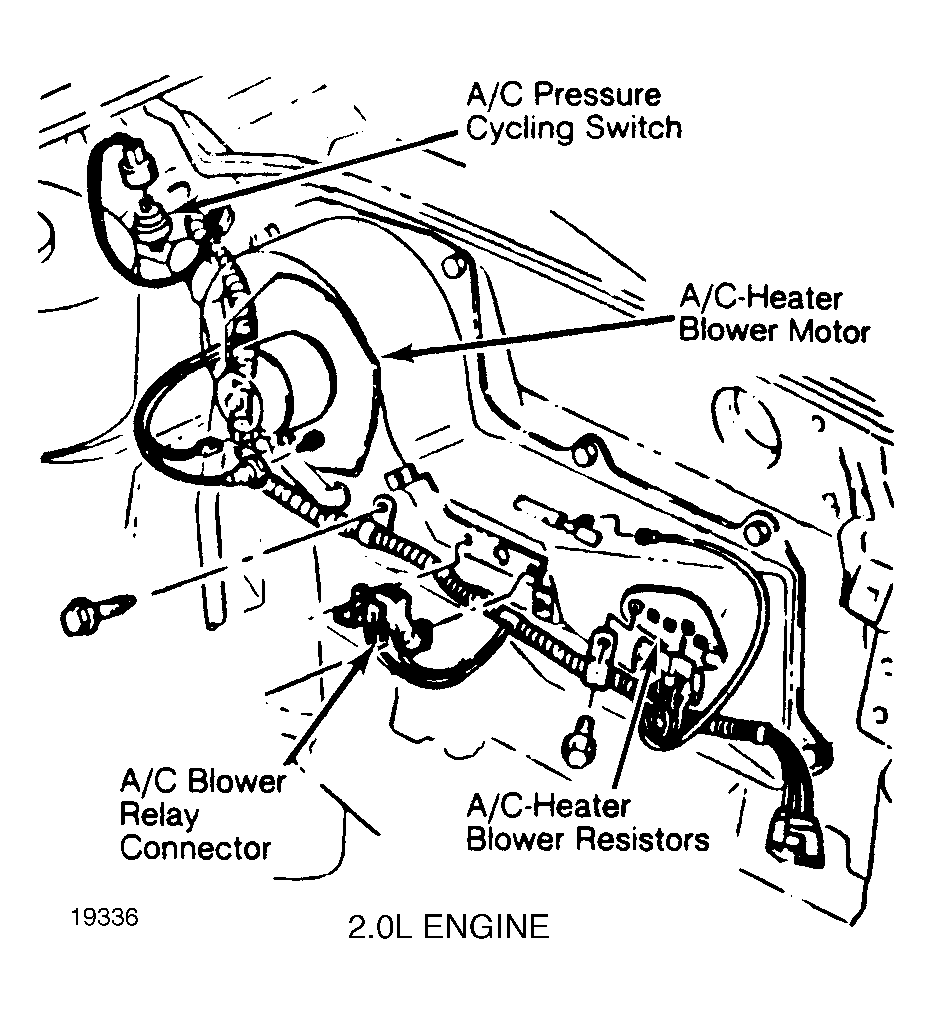

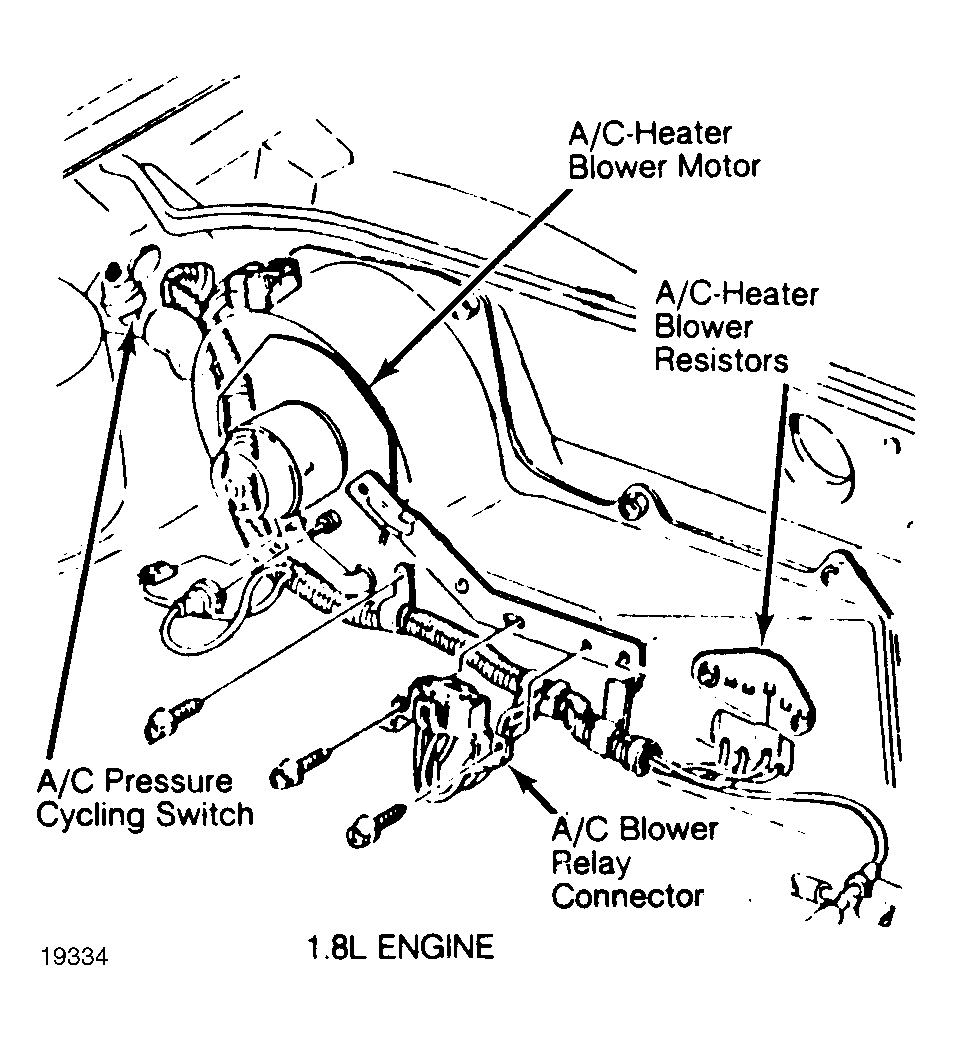

| A/C-Heater Blower Resistors |
Front left side of plenum. |
| ** |
SeeFigure & Figure
. |
| Blocking Diode |
In instrument panel harness near fuse block. |

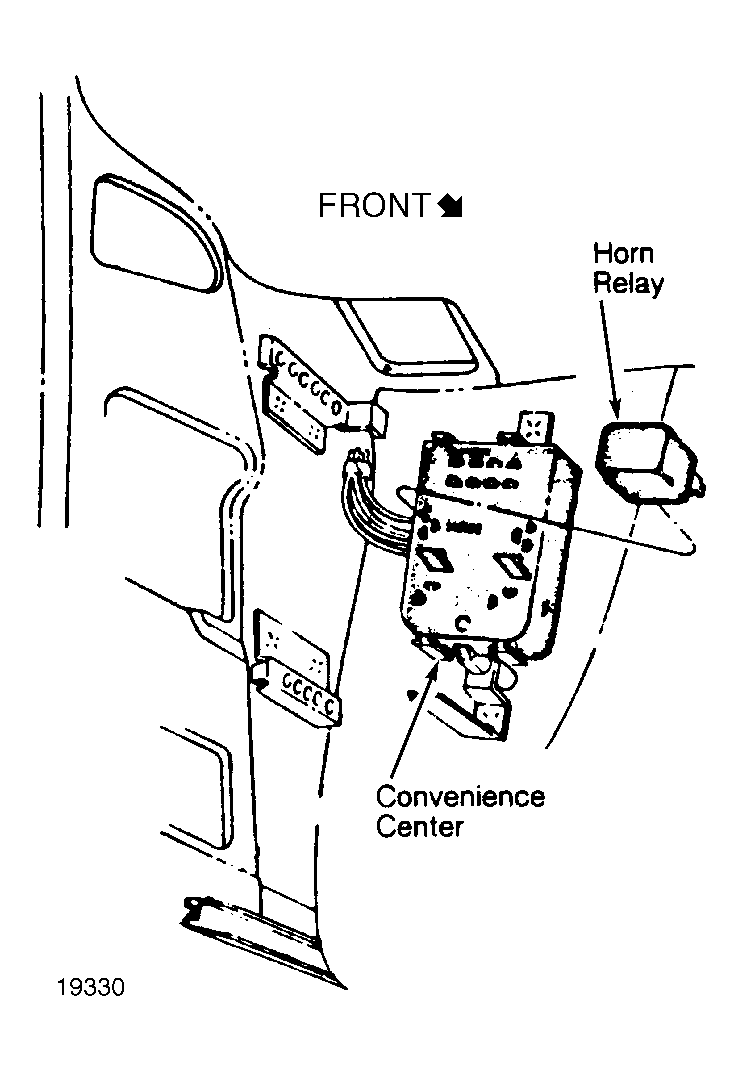

| Convenience Center |
Below instrument panel near left shroud. |
| ** |
See Figure. |
