Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | In trunk, on left wheelwell. | |
| Air Bag System | ||
| Initiator Module | On center of steering column. | |

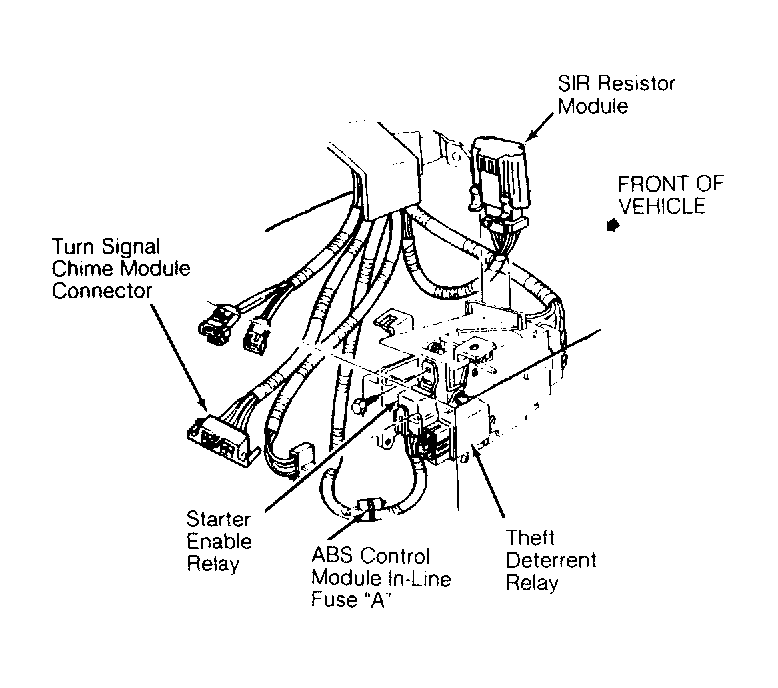

| Resistor Module | Behind left side of dash, left of steering column. See Figure . | |
| Automatic Door Lock Module | Behind center of dash, to right of steering column. | |
| Body Computer Module (BCM) | Behind right side of dash, behind glove box. | |
| Chime Module | Under right side of dash, above glove box. | |
| Computer Command Ride Module (CCR) | Center of trunk, under shelf. | |
| Diagnostic Energy Reserve Module (DERM) | Behind left side of dash, on brake pedal support bracket. | |
| Hazard/Turn Signal Module | Behind instrument cluster, near steering column. | |
| Heated Windshield Module | Behind dash, left of steering column. | |
| Keyless Entry Module | Center front of trunk, under rear shelf. | |

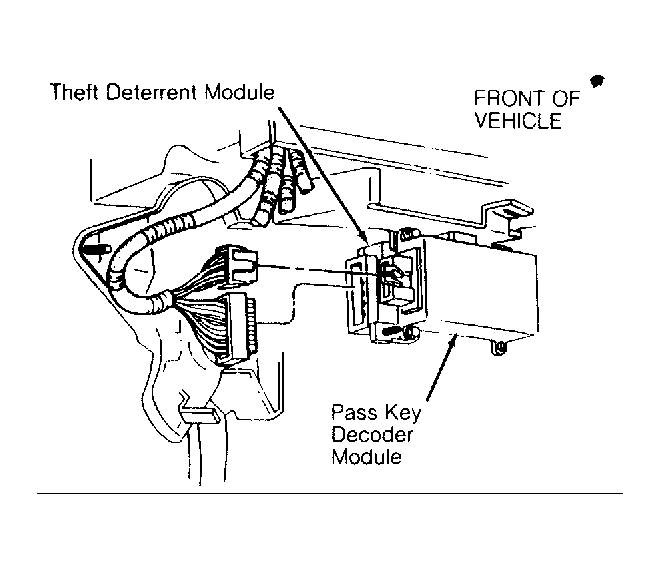

| Pass Key Decoder Module | Behind dash, left of steering column. See Figure . | |
| Power Module | Behind center of dash, in plenum. | |
| Power Window (Express Down) Module | In left door, in front of door lock motor. | |
| Theft Deterrent Module | Under left side of dash, near kick panel. See Figure . | |
| Powertrain Control Module (PCM) | Under right side of dash, below glove box. See Figure . | |
| Turn Signal/Hazard Module | Under center of dash, below radio. | |
| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. | |
