Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

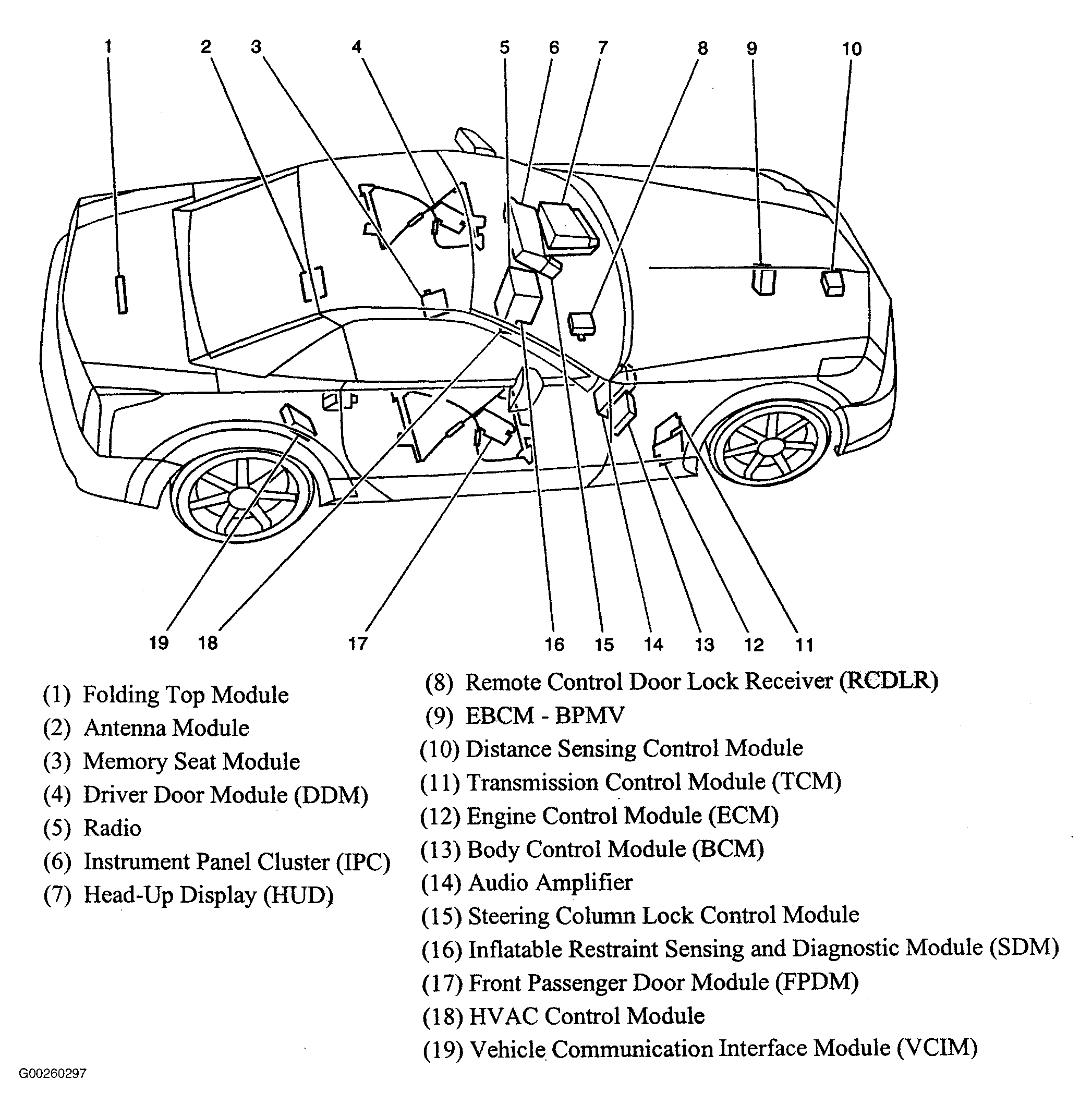

| Antenna Module | Right rear of roof. See Figure . |

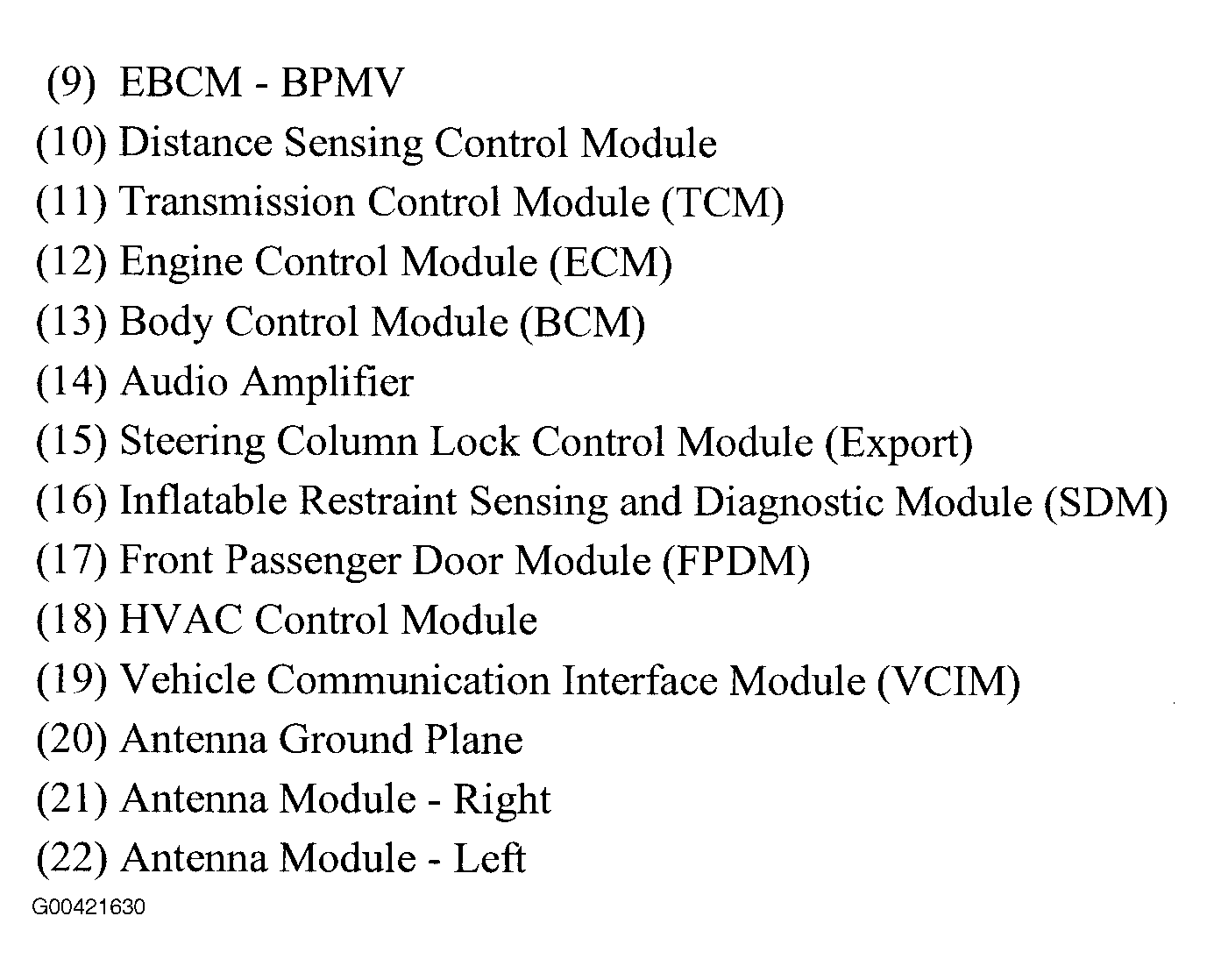

| Antenna Module - Left | Mounted on antenna ground plane on left side. See Figure . |
| Antenna Module - Right | Mounted on antenna ground plane on right side. See Figure . |
| Blower Motor Control Processor | Right side of blower motor. See Figure . |
| Body Control Module (BCM) | Behind right side of dash. See Figure . |
| Climate Control Seat Module - Driver | Under driver seat. See Figure . |
| Climate Control Seat Module - Passenger | Under passenger seat. See Figure . |
| Distance Sensing Control Module | Center front of engine compartment. See Figure . |
| Driver Door Module (DDM) | In driver's door. See Figure . |
| EBCM-BPMV | Center of engine compartment. See Figure . |
| Electronic Brake Control Module (EBCM) | Left front of engine compartment. See Figure . |
| Electronic Suspension Control Module | Left rear of luggage compartment. See Figure . |
| Engine Control Module (ECM) | Behind lower right front fender. See Figure . |
| Engine Control Module (ECM) Connector | Lower right rear of engine compartment. See Figure . |
| Fan Control Module | At lower right of cooling fan. |
| Folding Top Module | Left side of luggage compartment. See Figure . |
| Front Passenger Door Module (FPDM) | In front door. See Figure . |

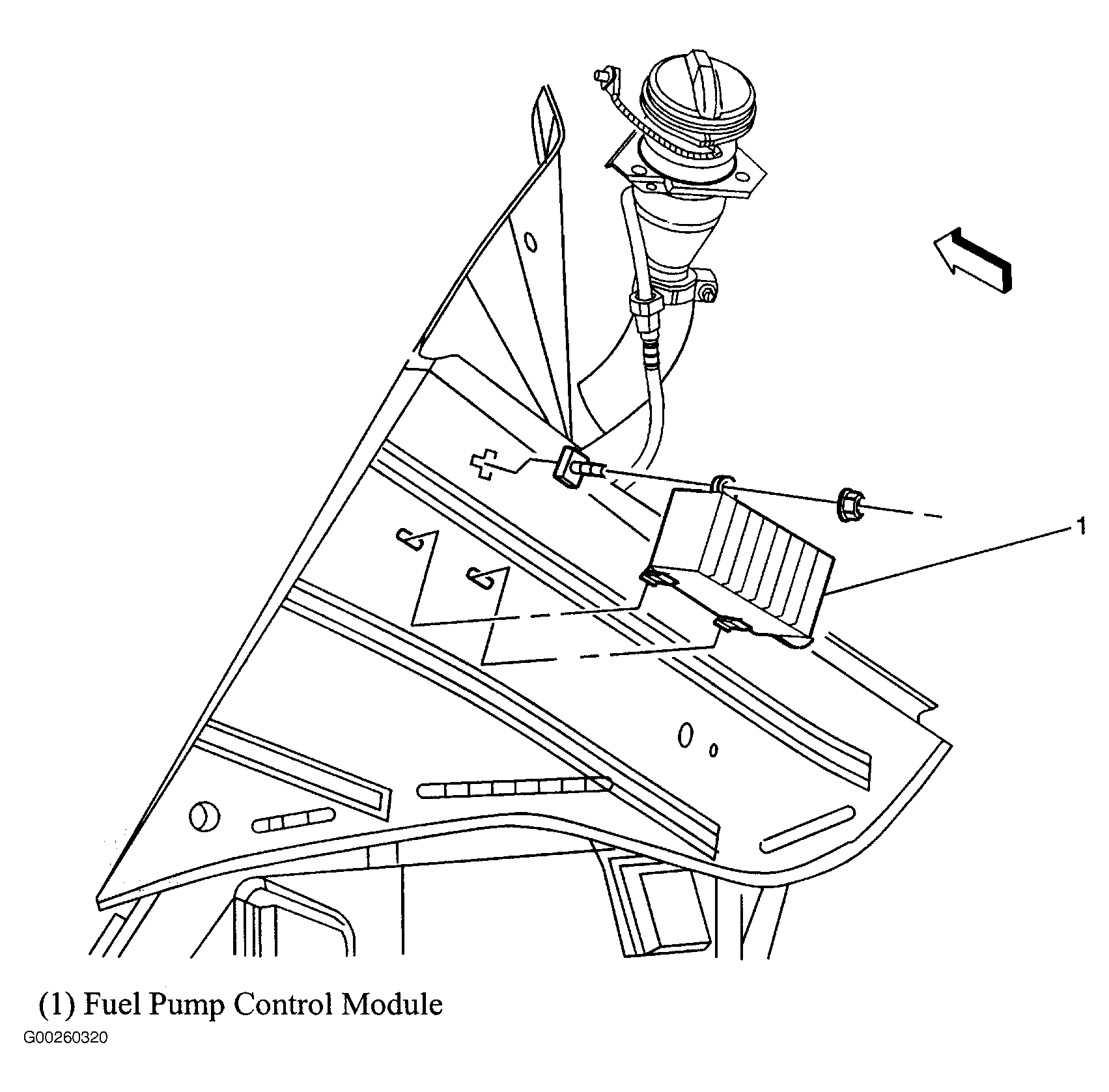

| Fuel Pump Control Module | Right rear of vehicle. See Figure . |

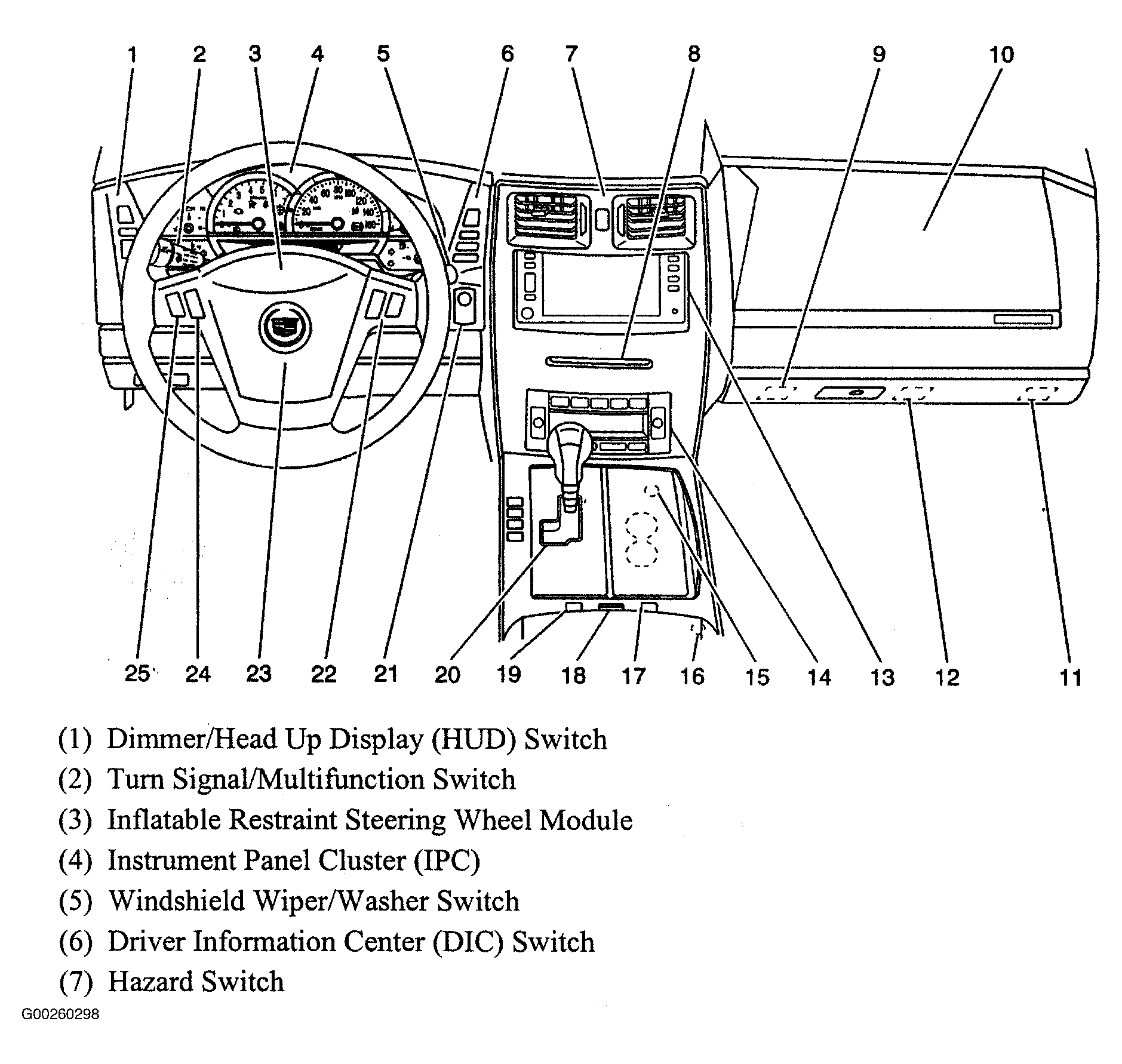

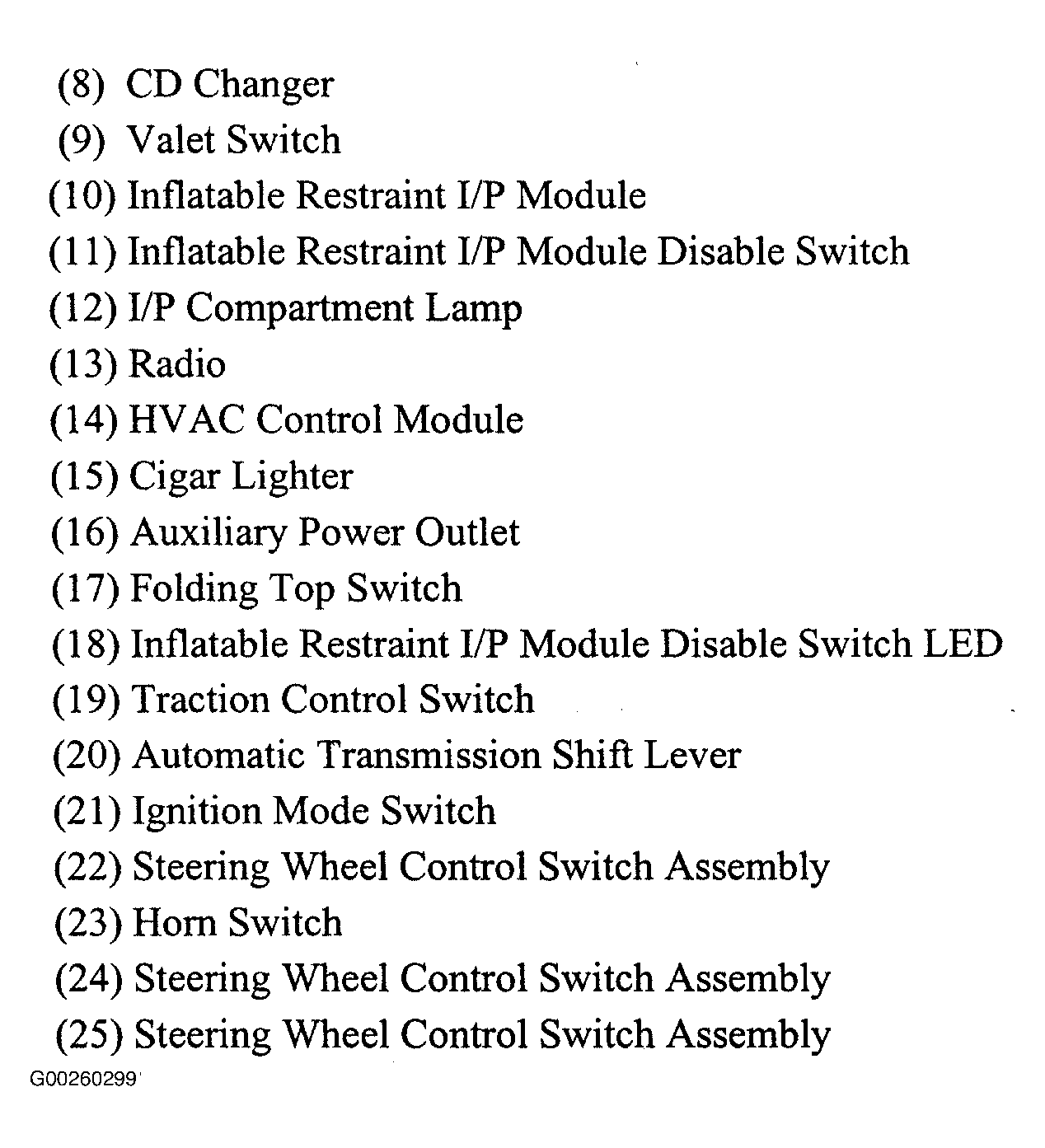

| HVAC Control Module | At center of dash. See Figure . |

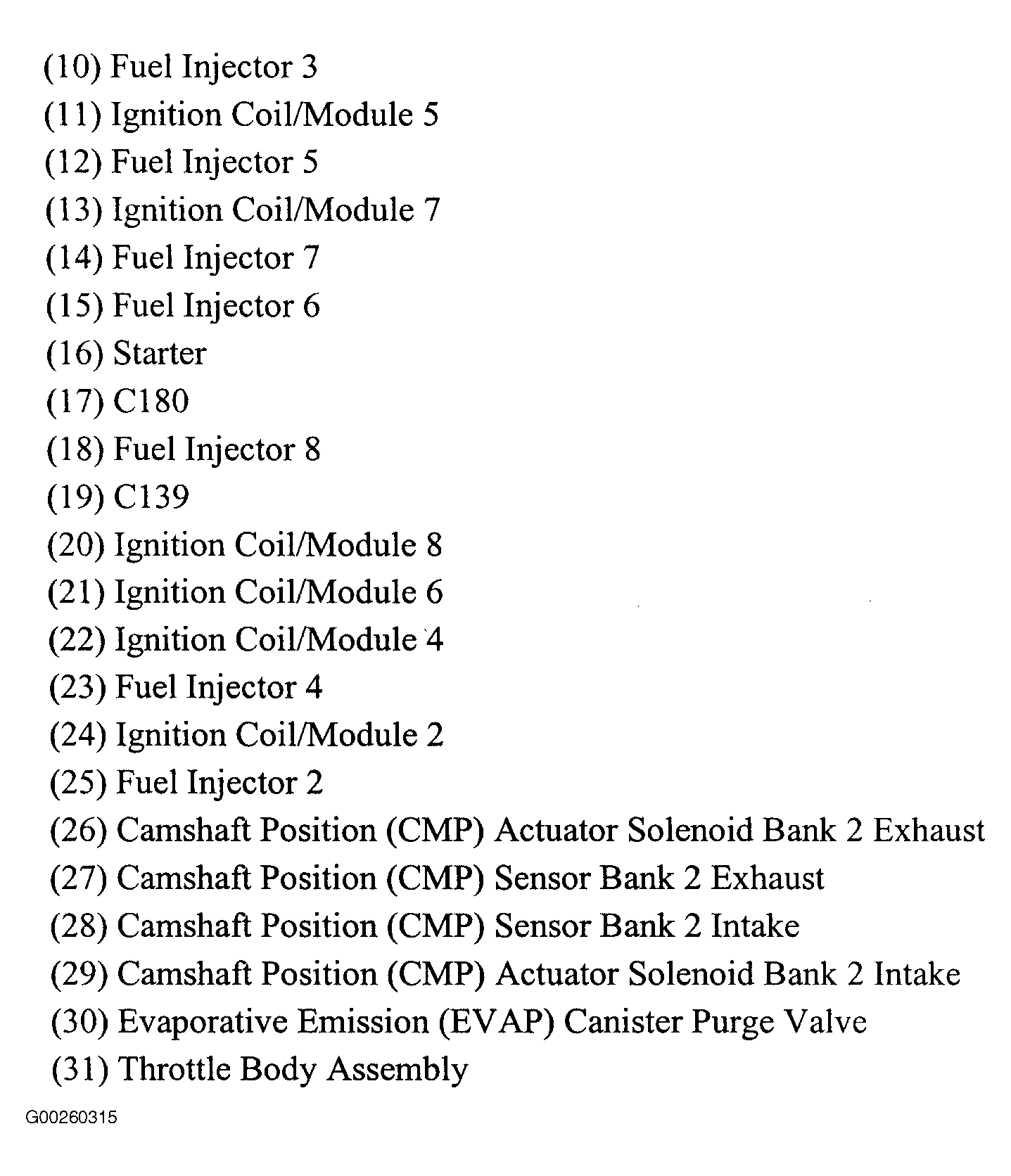

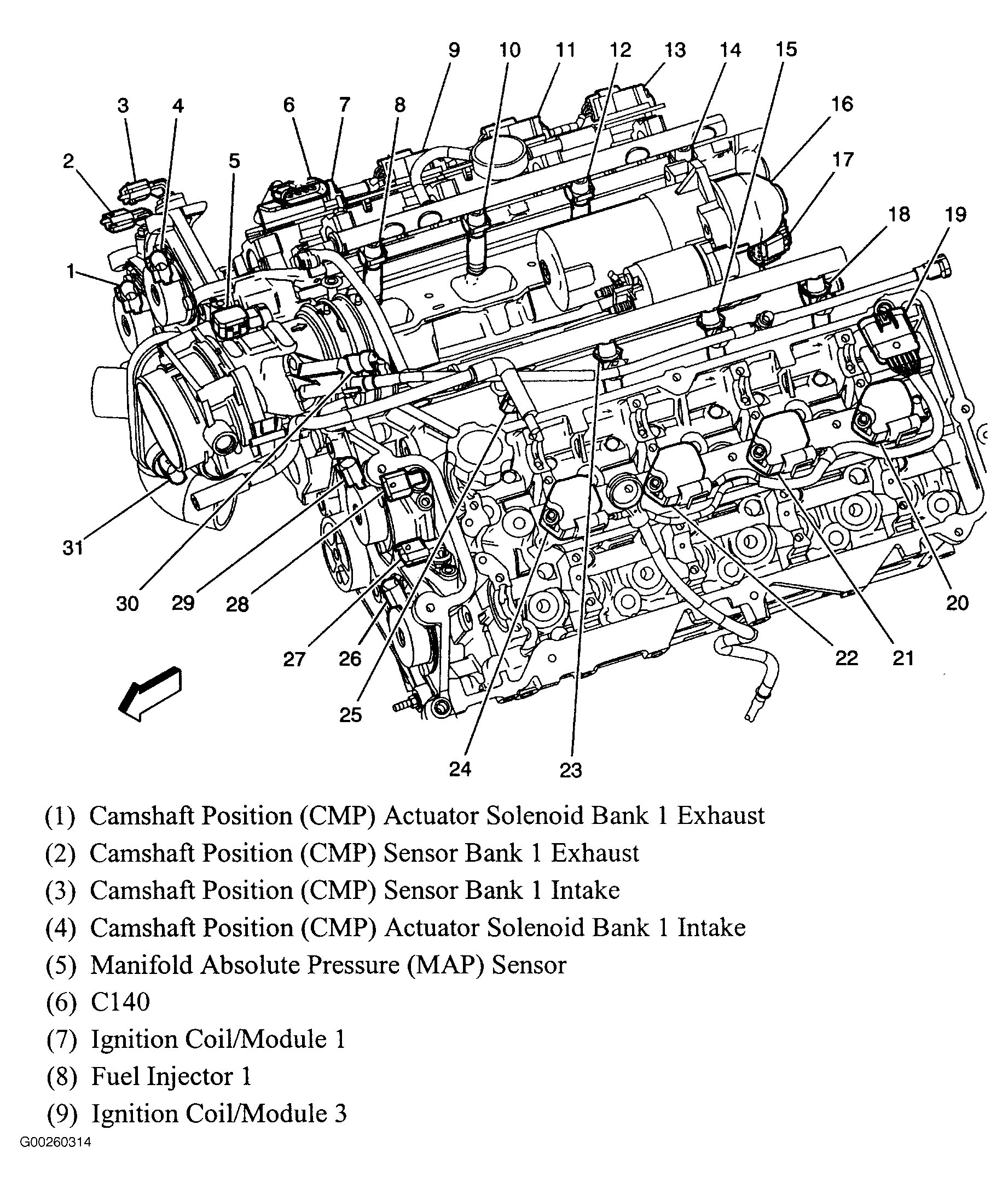

| Ignition Coil/Module 1 | Right front of engine. See Figure . |
| Ignition Coil/Module 2 | Top left front of engine. See Figure . |
| Ignition Coil/Module 3 | Top right of engine. See Figure . |
| Ignition Coil/Module 4 | Top left front of engine. See Figure . |
| Ignition Coil/Module 5 | Right top of engine. See Figure . |
| Ignition Coil/Module 6 | Top left rear of engine. See Figure . |
| Ignition Coil/Module 7 | Top right rear of engine. See Figure . |
| Ignition Coil/Module 8 | Top left rear of engine. See Figure . |
| Inflatable Restraint I/P Module | Right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Center of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Located underneath vehicle console. See Figure . |
| Inflatable Restraint Side Impact Module-Left | Right side of driver's seat back. See Figure . |
| Inflatable Restraint Side Impact Module-Right | Right side of passenger's seat. See Figure . |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. See Figure . |
| Lumbar Pump/Control Module Assembly - Driver | Under driver seat. See Figure . |
| Lumbar Pump/Control Module Assembly - Passenger | Under passenger seat. See Figure . |
| Memory Seat Module | Under driver's seat. See Figure . |

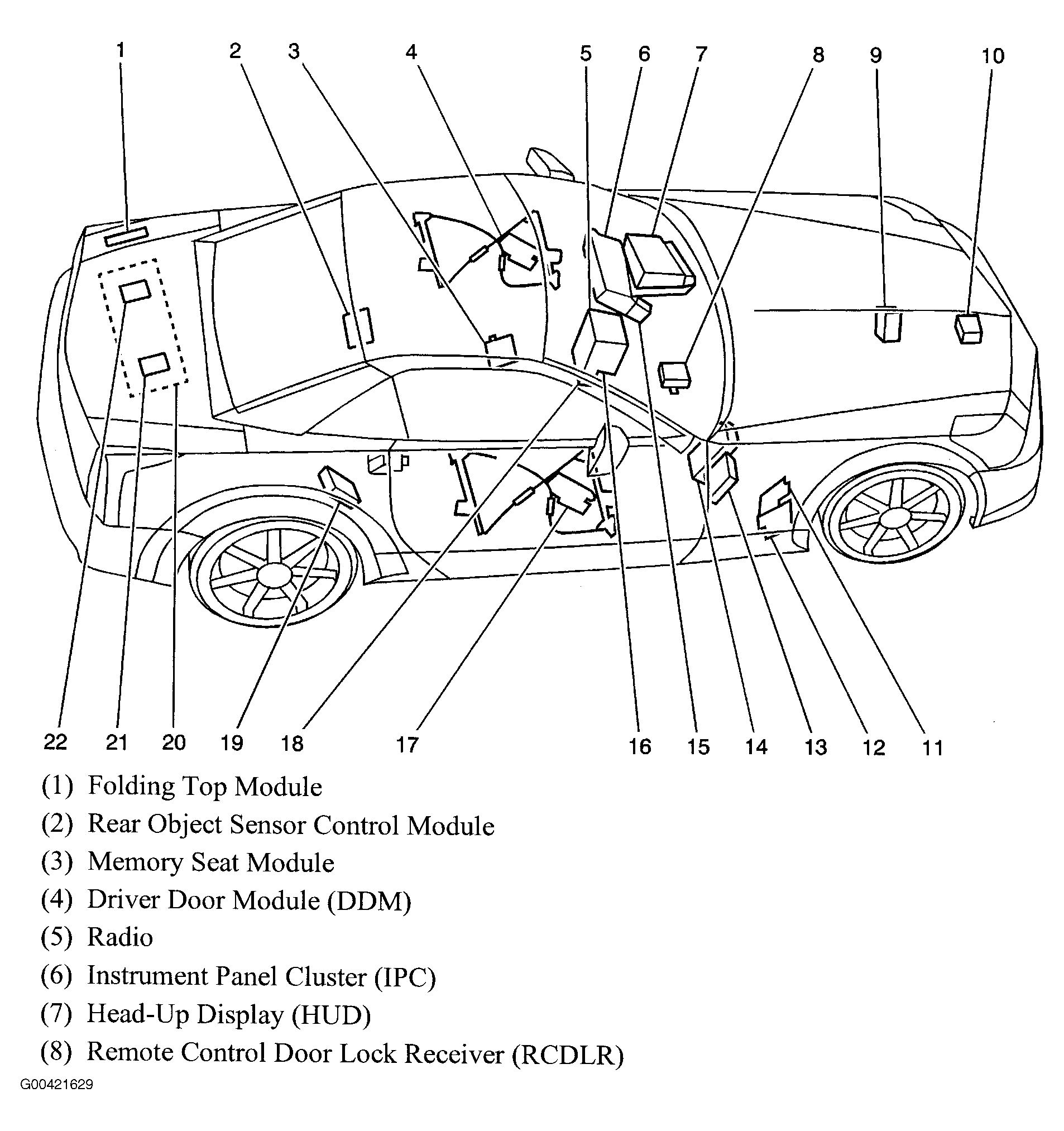

| Rear Object Sensor Control Module | Behind rear compartment stowage trim panel. See Figure . |
| Remote Control Door Lock Receiver (RCDLR) | Right side of dash. See Figure . |
| Seat Back Heated/Cooled Ventilation Module - Driver | At top of driver seat back, between seat speakers. See Figure . |
| Seat Back Heated/Cooled Ventilation Module - Passenger | At top of passenger seat back, between seat speakers. See Figure . |
| Seat Cushion Heated/Cooled Ventilation Module - Driver | In driver seat cushion, in air ducting. See Figure . |
| Seat Cushion Heated/Cooled Ventilation Module - Passenger | In passenger seat cushion, in air ducting. See Figure . |
| Transmission Control Module (TCM) | Behind lower right side of front fender. See Figure . |
| Transmission Control Module (TCM) Connector | Lower right rear of engine compartment. See Figure . |
| Vehicle Communication Interface Module (VCIM) | At front of right wheelwell. See Figure . |
