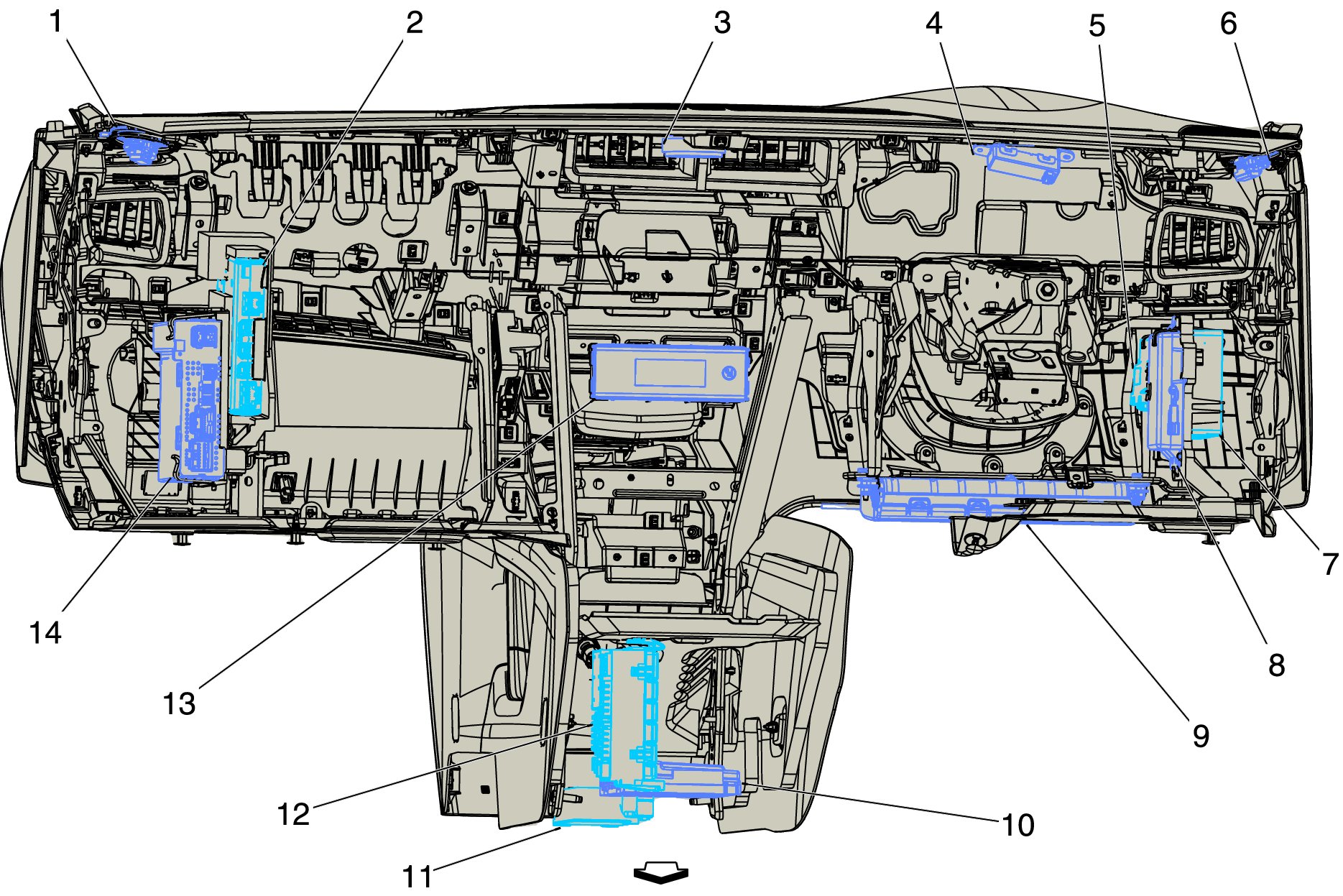

Behind Instrument Panel Components (1 of 3)

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel
2. K74 Human Machine Interface Control Module K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 K74 Human Machine Interface Control Module X3 K74 Human Machine Interface Control Module X5 K74 Human Machine Interface Control Module X7
3. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
4. P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators (UEU-UV6)
5. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
6. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel
7. K73 Telematics Communication Interface Control Module (UE1/UI3) K73 Telematics Communication Interface Control Module X1 (UE1/UI3)K73 Telematics Communication Interface Control Module X2 (UE1/UI3)K73 Telematics Communication Interface Control Module X5 (UE1/UI3)K73 Telematics Communication Interface Control Module X7 (UE1/UI3)
8. C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)
9. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
10. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
11. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
12. 1X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel
13. K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4 K33 HVAC Control Module X8
14. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 A11 Radio X4 A11 Radio X6
