Installation Procedure

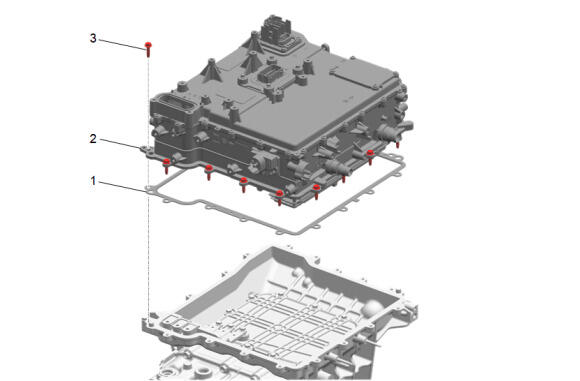

  1. GM6029208Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Inverter Module Gasket (1) - Install

  2. With the aid of an assistant, install the drive motor power distribution control module (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Drive Motor Power Inverter Module Bolt (3) - Install and tighten in sequence [17x] - Fastener Specifications
  4. GM6029117Courtesy of GENERAL MOTORS COMPANY

    Using a magnetic socket, install and tighten the 3 drive motor power inverter module connector bolts (1). Fastener Specifications

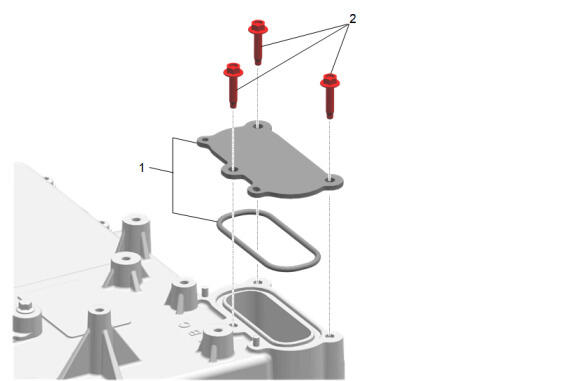

  5. GM6029207Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Drive motor power distribution control module high voltage connector access cover seal is not serviceable separately.

    Drive Motor Power Distribution Control Module High Voltage Connector Access Cover (1) - Install

  6. Drive Motor Power Distribution Control Module High Voltage Connector Cover Bolt (2) - Install and tighten [3x] - Fastener Specifications
  7. GM6271529Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Wiring Harness Terminal (3) @ Drive Motor Power Distribution Control Module - Install

  8. Engine Wiring Harness Ground Nut (2) - Install and tighten - Fastener Specifications
  9. Retainer (1) - Install [2x]
  10. GM6271528Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Wiring Harness Terminal (3) @ Drive Motor Power Distribution Control Module - Install

  11. Engine Wiring Harness Battery Lead Nut (2) - Install and tighten - Fastener Specifications
  12. Retainer (1) - Install [5x]
  13. GM6271527Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Wiring Harness Terminal (2) @ Drive Motor Power Distribution Control Module - Install

  14. Engine Wiring Harness Ground Nut (1) - Install and tighten - Fastener Specifications
  15. GM6175041Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Coolant Inlet Secondary Hose Clip (3) - Install

  16. Drive Motor Power Inverter Module Cooling Outlet Hose (2) @ Drive Motor Power Distribution Control Module - Install
  17. Retainer (1) - Engage
  18. GM6173813Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Control Module Cooling Inlet Hose (2) @ Drive Motor Power Distribution Control Module - Install

  19. Retainer (1) - Engage
  20. GM6595930Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Bracket (2) - Install

  21. High Voltage Battery Heater Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  22. GM5995017Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Module (1) - Install

  23. GM5995015Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications

  24. Connect the wiring harness retainer.
  25. GM6177151Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Drive Motor Control Module Cooling Inlet Hose (3) - Install

  26. High Voltage Battery Heater Module Coolant Hose (2) - Install
  27. Retainer (1) - Engage [2x]
  28. GM6271526Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Wiring Harness Bracket (3) - Install

  29. Engine Wiring Harness Conduit Bolt (2) - Install and tighten - Fastener Specifications
  30. Retainer (1) - Install
  31. GM6271525Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Wiring Harness Bracket (3) - Install

  32. Engine Wiring Harness Conduit Bolt (2) - Install and tighten - Fastener Specifications
  33. Retainer (1) - Install
  34. GM6271524Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Retainer (2) - Install [2x]

  35. Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications
  36. GM6271523Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    High Voltage Electrical Connector (1) @ Drive Motor Power Distribution Control Module - Connect [4x] - High Voltage Connectors

  37. GM5995018Courtesy of GENERAL MOTORS COMPANY

    High Voltage Electrical Connector (1) @ High Voltage Battery Heater Module - Connect - High Voltage Connectors

  38. GM5995016Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Module Protector (1) - Install

  39. GM5995014Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Module Protector Bolt (1) - Install and tighten - Fastener Specifications

  40. GM5995013Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) - Install [3x]

  41. Electrical Connector (3) @ High Voltage Battery Heater Module - Connect
  42. Electrical Connector (1) @ Front Electric Drive Transmission Module - Connect
  43. GM5925550Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment Support (2) - Install

  44. Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  45. Connect the wiring harness retainers.
  46. GM5923708Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) - Install

  47. Fill the drive motor battery cooling system. Drive Motor Battery Cooling System Draining and Filling
  48. Enable the high voltage system. High Voltage Enabling
  49. Run all necessary programming and setup procedures. Control Module References
