Installation Procedure

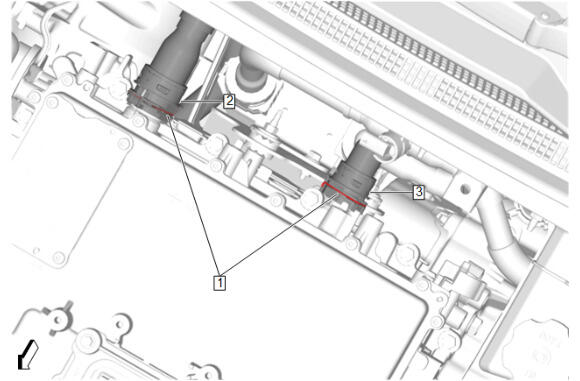

Drive Motor Power Inverter Module Gasket (2) - Install

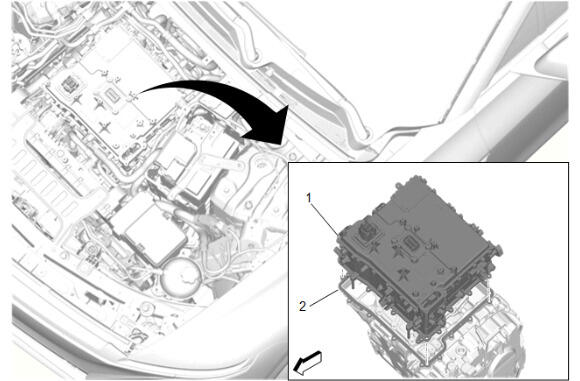

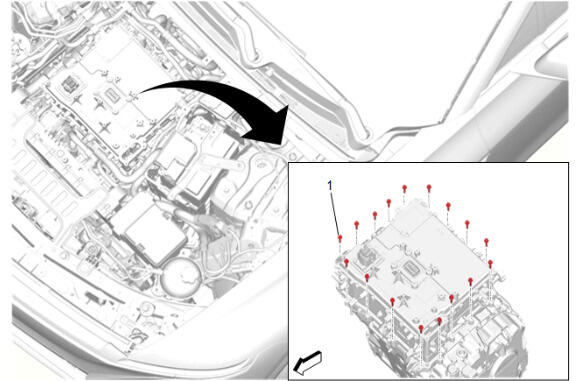

- With the aid of an assistant, install the drive motor power distribution control module (1).
- CAUTION:
Refer to Fastener Caution .
Drive Motor Power Inverter Module Bolt (1) - Install and tighten in sequence [17x] - Fastener Specifications
Drive Motor Power Inverter Module Connector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- NOTE:
- Some components not shown for graphic clarity.
- The drive motor power distribution control module high voltage connector access cover gasket is not serviceable separately.

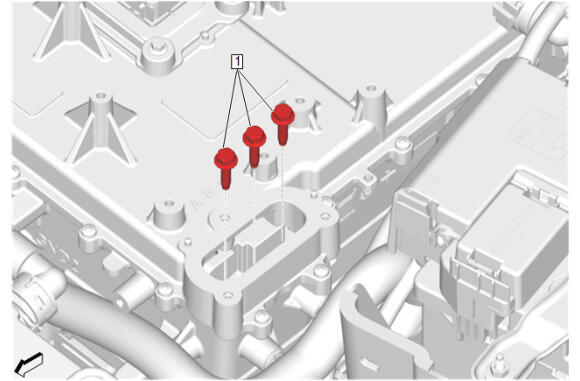

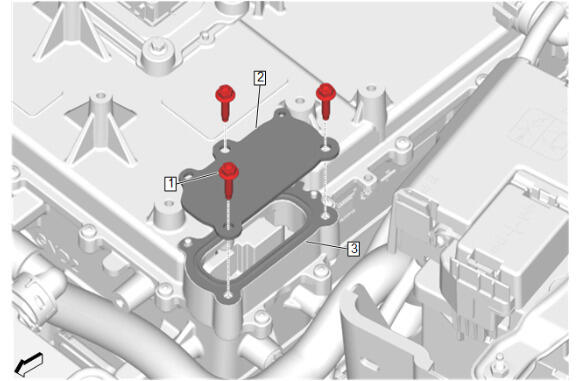

Install the drive motor power distribution control module high voltage connector access cover gasket (3).
- Drive Motor Power Distribution Control Module High Voltage Connector Access Cover (2) - Install
- Drive Motor Power Distribution Control Module High Voltage Connector Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.
Drive Motor Control Module Cooling Outlet Hose (3) - Connect
- Drive Motor Control Module Cooling Inlet Hose (2) - Connect
- Retainer (1) - Engage [2x]

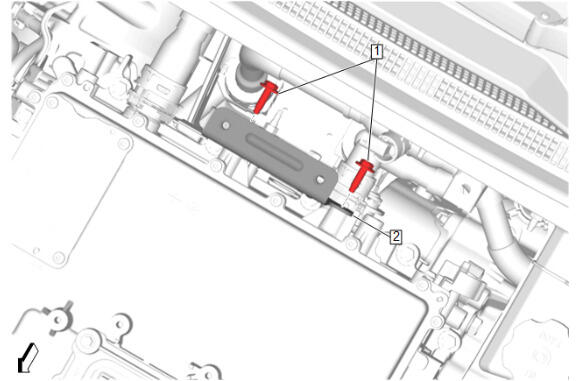

High Voltage Battery Heater Bracket (2) - Install
- High Voltage Battery Heater Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

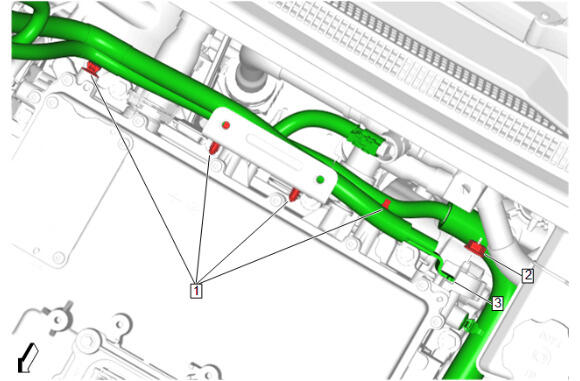

Engine Wiring Harness (3) - Install

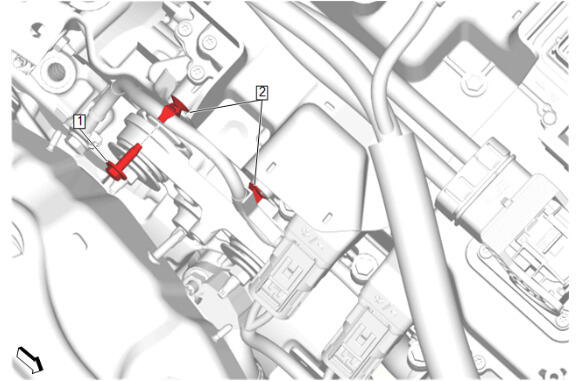

- Engine Wiring Harness Ground Nut (2) - Install and tighten - Fastener Specifications
- Retainer (1) - Install [4x]
- NOTE:
Some components not shown for graphic clarity.

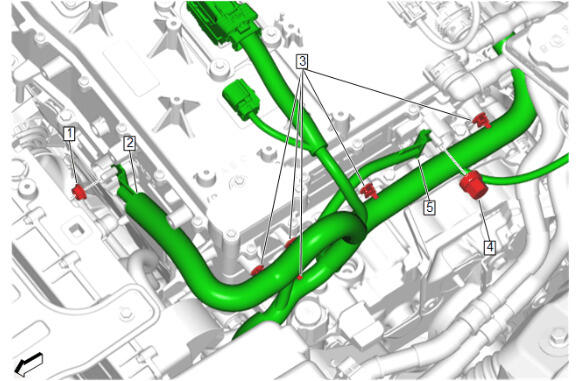

Engine Wiring Harness (5) - Install
- Engine Wiring Harness Battery Lead Nut (4) - Install and tighten - Fastener Specifications
- Retainer (3) - Install [5x]
- Engine Wiring Harness (2) - Install
- Engine Wiring Harness Ground Nut (1) - Install and tighten - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

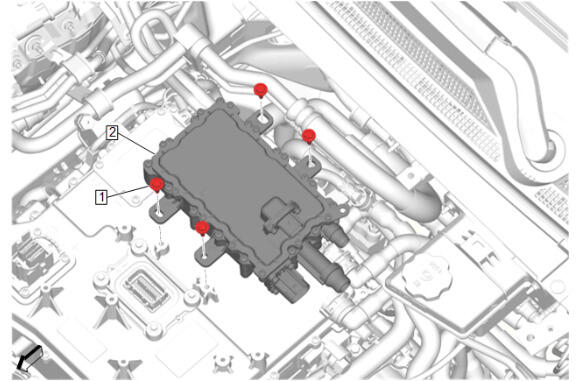

High Voltage Battery Heater Module (2) - Install
- High Voltage Battery Heater Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
- NOTE:
Some components not shown for graphic clarity.

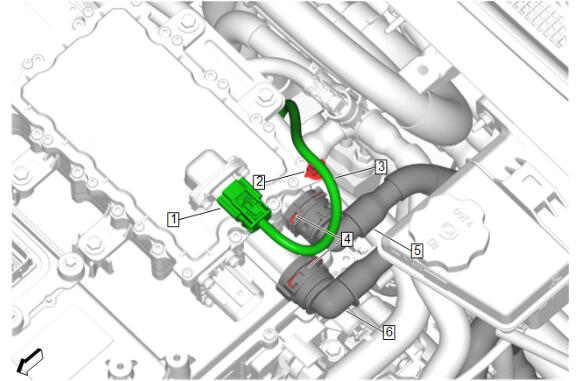

Auxiliary Drive Motor Control Module Cooling Inlet Hose (6) - Connect
- High Voltage Battery Heater Module Coolant Hose (5) - Connect
- Retainer (4) - Engage [2x]
- Engine Wiring Harness (3) - Install
- Retainer (2) - Install
- Electrical Connector (1) - Connect
- NOTE:
Some components not shown for graphic clarity.

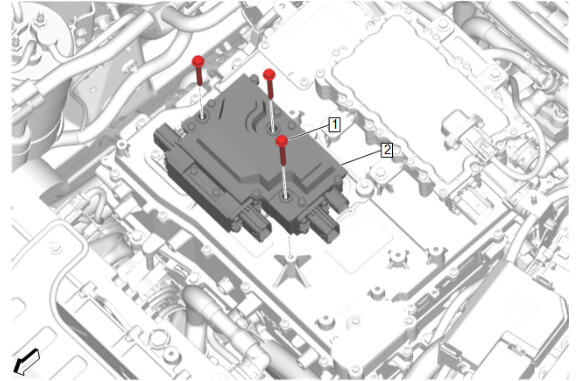

Hybrid/Electric Vehicle Battery Charging Disconnect Module Relay (2) - Install
- Drive Motor Battery Charger Module Relay Bolt (1) - Install and tighten [3x] - Fastener Specifications
Battery Positive and Negative Cable (3) - Install
- Engine Wiring Harness Conduit Bolt (2) - Install and tighten - Fastener Specifications
- Retainer (1) - Install

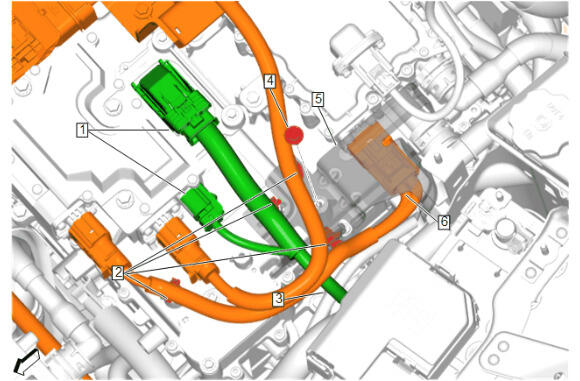

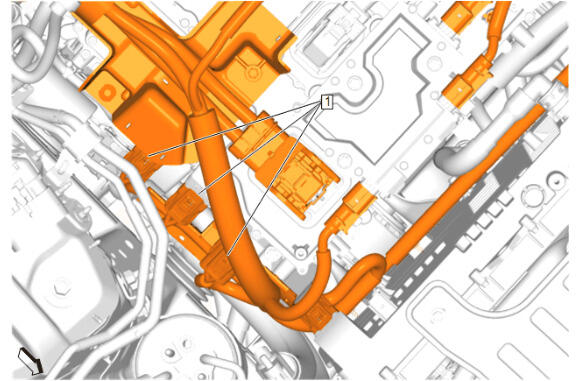

High Voltage Electrical Connector (6) - Connect - High Voltage Connectors

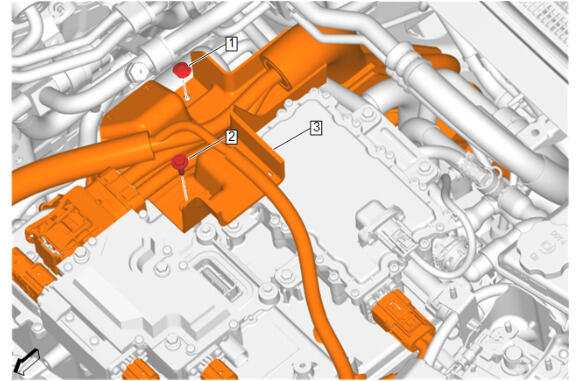

- High Voltage Battery Heater Module Protector (5) - Install
- High Voltage Battery Heater Module Protector Bolt (4) - Install and tighten - Fastener Specifications
- Engine Wiring Harness (3) - Install
- Retainer (2) - Install [4x]
- Electrical Connector (1) - Connect [2x]

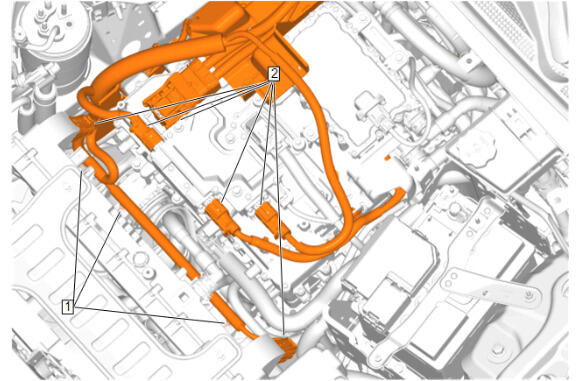

High Voltage Electrical Connector (2) - Connect [6x] - High Voltage Connectors
- Retainer (1) - Install [3x]
- NOTE:
Some components not shown for graphic clarity.
Retainer (2) - Install
- Engine Wiring Harness Conduit Bolt (1) - Install and tighten - Fastener Specifications
High Voltage Electrical Connector (1) - Connect [3x] - High Voltage Connectors
- NOTE:
Some components not shown for graphic clarity.
Retainer (2) - Install [2x]

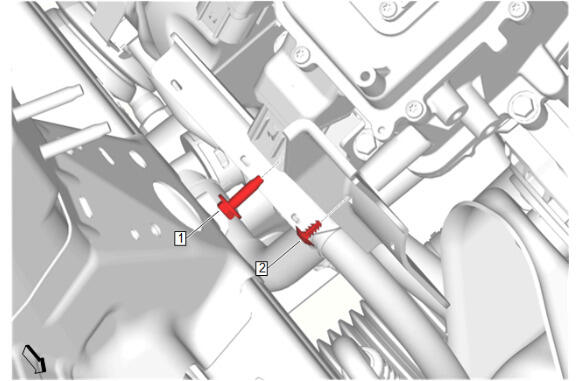

- Wiring Harness Bracket Bolt (1) - Install and tighten - Fastener Specifications
Front Trim Finish Compartment Support (2) - Install
- Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Connect the wiring harness retainers.
Front Compartment Front Sight Shield (2) - Install
Front Compartment Side Sight Shield - Right Side (2) - Install
- Perform all steps in the high voltage enabling procedure before continuing. High Voltage Enabling
- Run all necessary programming and setup procedures. Control Module References
Refer to Fastener Caution .
Coolant filling instructions are located in High Voltage Enabling.
