Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

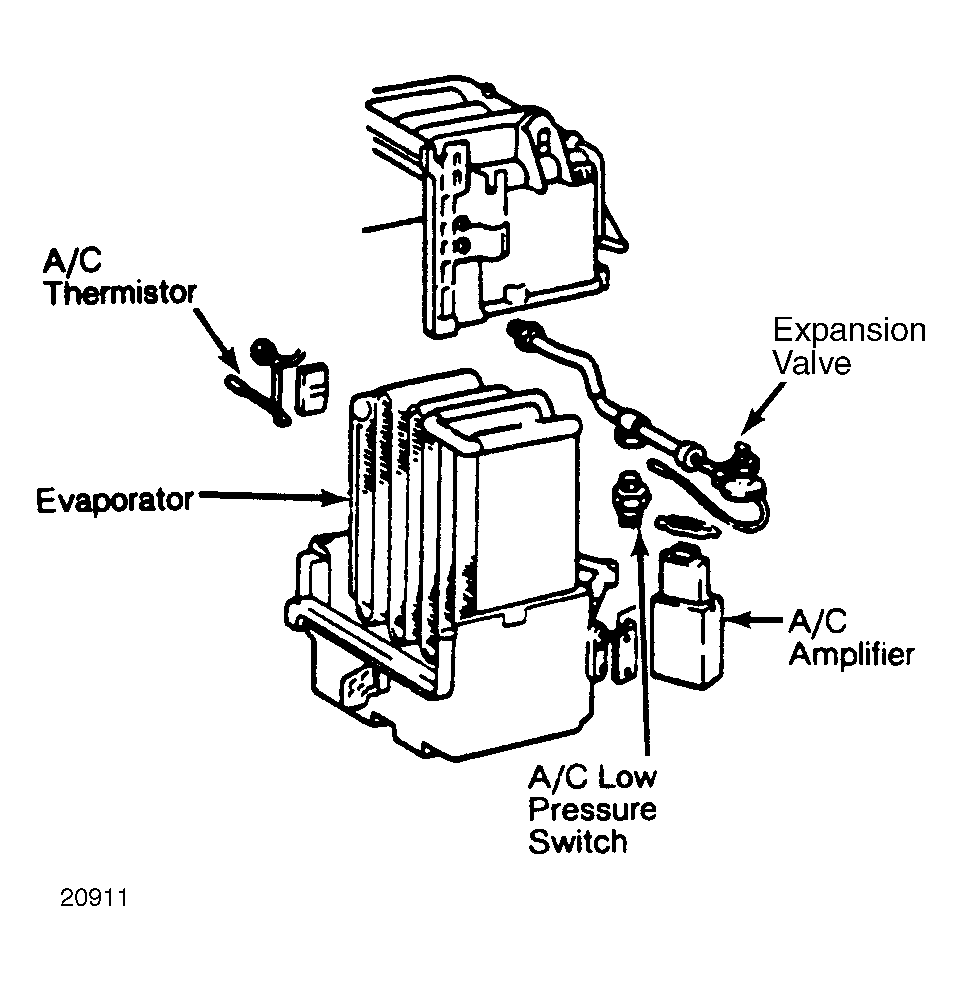

| A/C Amplifier | Under dashboard on side of evaporator housing. See Figure . |
| A/C-Heater Blower Resistors | Integral part of main A/C switch. |
| A/C In-Line Fuse | Behind right kick panel. |
| A/C Thermistor | On A/C evaporator. See Figure . |
| Accessory Relay Boards | On left and right kick panels. See Figure & 3. |

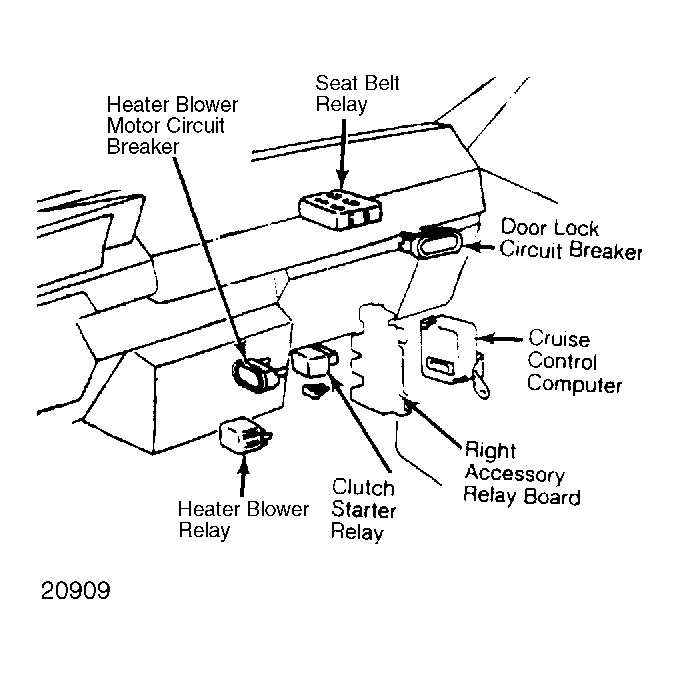

| Circuit Breakers Heater Blower Motor | On right accessory relay board. See Figure . |
| Circuit Breakers Power Door Locks | Under right side of dashboard behind speaker housing. |
| Circuit Breakers Rear Window Defroster | On left accessory relay board. See Figure . |
| Cold Mixture Heater | Under base of carburetor. |

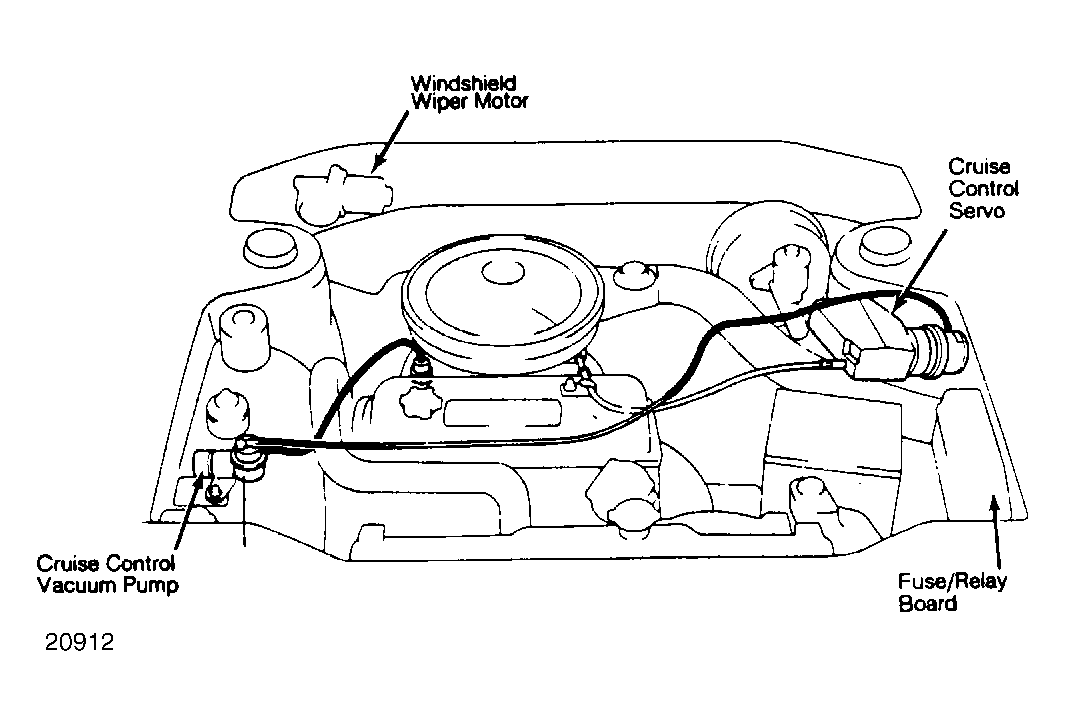

| Cruise Control Servo | In left rear side of engine compartment. See Figure . |
| Fuse/Relay Board | In engine compartment on left front side. See Figure & 5. |
| Fusible Links | At battery positive terminal. |

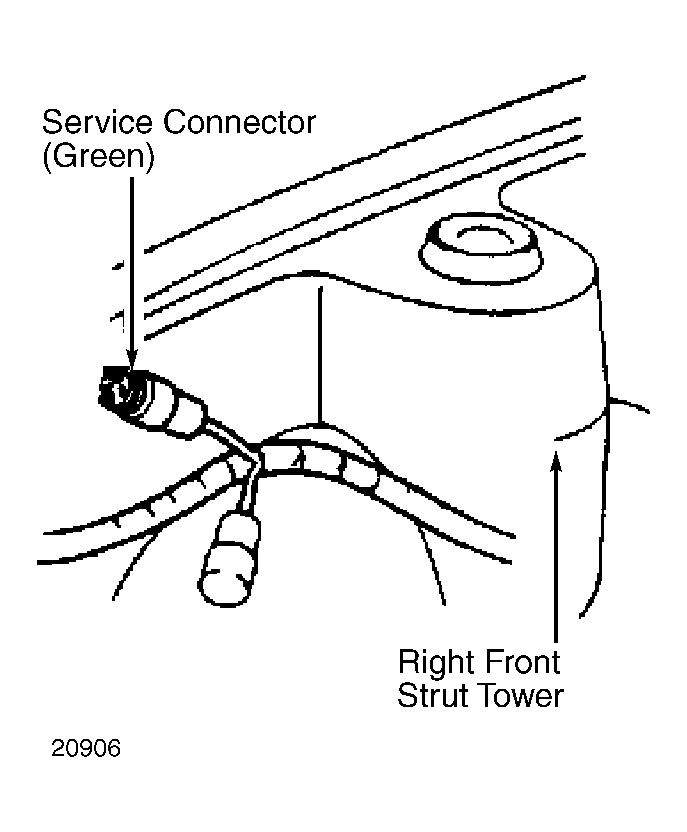

| Service Connector (Green) | In wiring harness near right front strut tower. See Figure . |
