Primary Fuel Pump Module: Installation
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

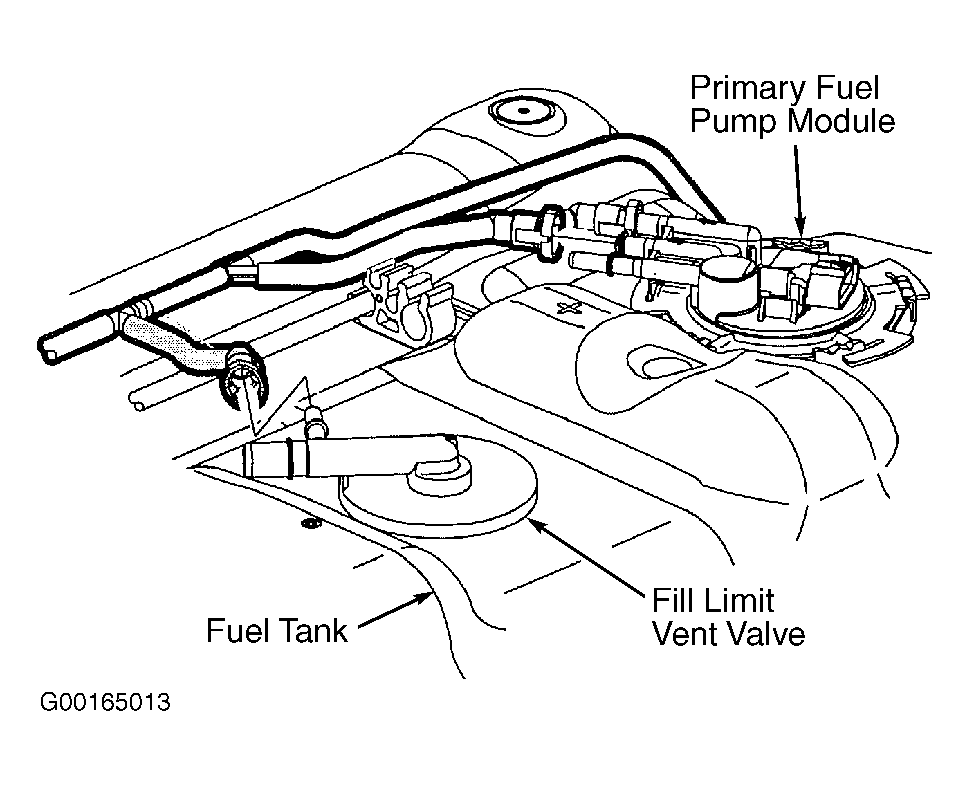

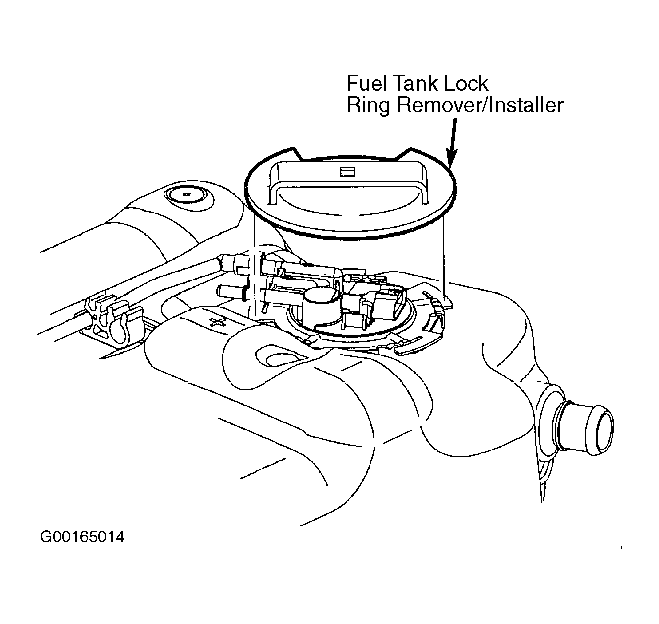

If installing a new fuel pump, install fuel level sending unit onto new fuel pump. Insert new primary fuel pump module with level sender and new fuel pump-to-tank seal. Ensure orientation tabs are aligned. Using Fuel Tank Lock Ring Remover/Installer (SA9156E), install fuel pump lock ring. See Fig 2 . Connect fuel lines to fuel tank. Ensure new fuel line quick-connect retainers are used on fuel lines. Connect wiring harness to primary fuel pump module. Install fuel tank. See FUEL TANK .
