Removal & Installation

Disconnect negative battery cable. Remove right sound insulator below instrument panel. Remove BCM. Disconnect BCM connectors as specified. See Fig 1 . To install, reverse removal procedure, reconnecting connectors as specified. To program BCM, see PROGRAMMING  .

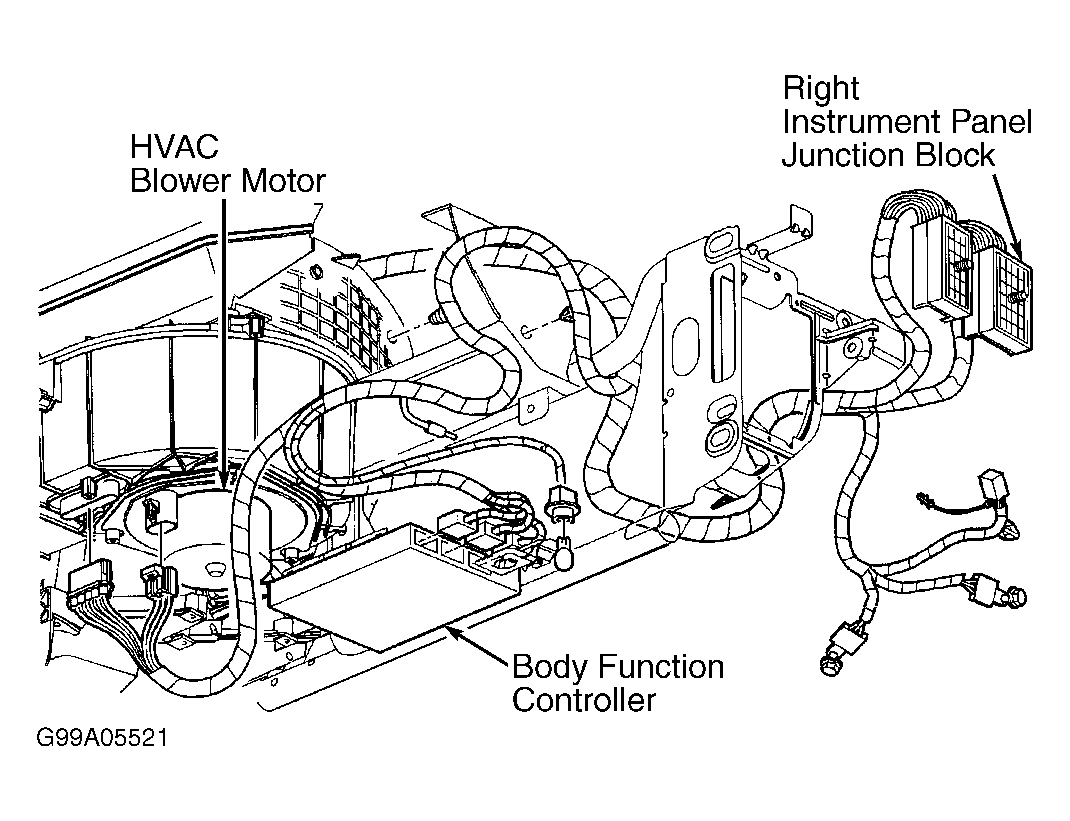

Fig 1: Removing Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.
