Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Blower Motor Control Module | Behind right side of dash. See Figure . |
| Body Control Module (BCM) | Mounted on toe board, in right footwell. |
| Door Control Module (2) | In lower center of respective door. |
| Driver Seat Control Module | On underside of driver's seat. See Figure . |
| Electronic Brake/Traction Control Module (EBTCM) | At left front side of engine compartment, on frame rail. |
| Electronic Suspension Control (ESC) Module | In rear compartment, inside rear tub. See Figure . |
| Headlamp Opening Door Actuator Control Module | In lower right front of engine compartment. See Figure . |

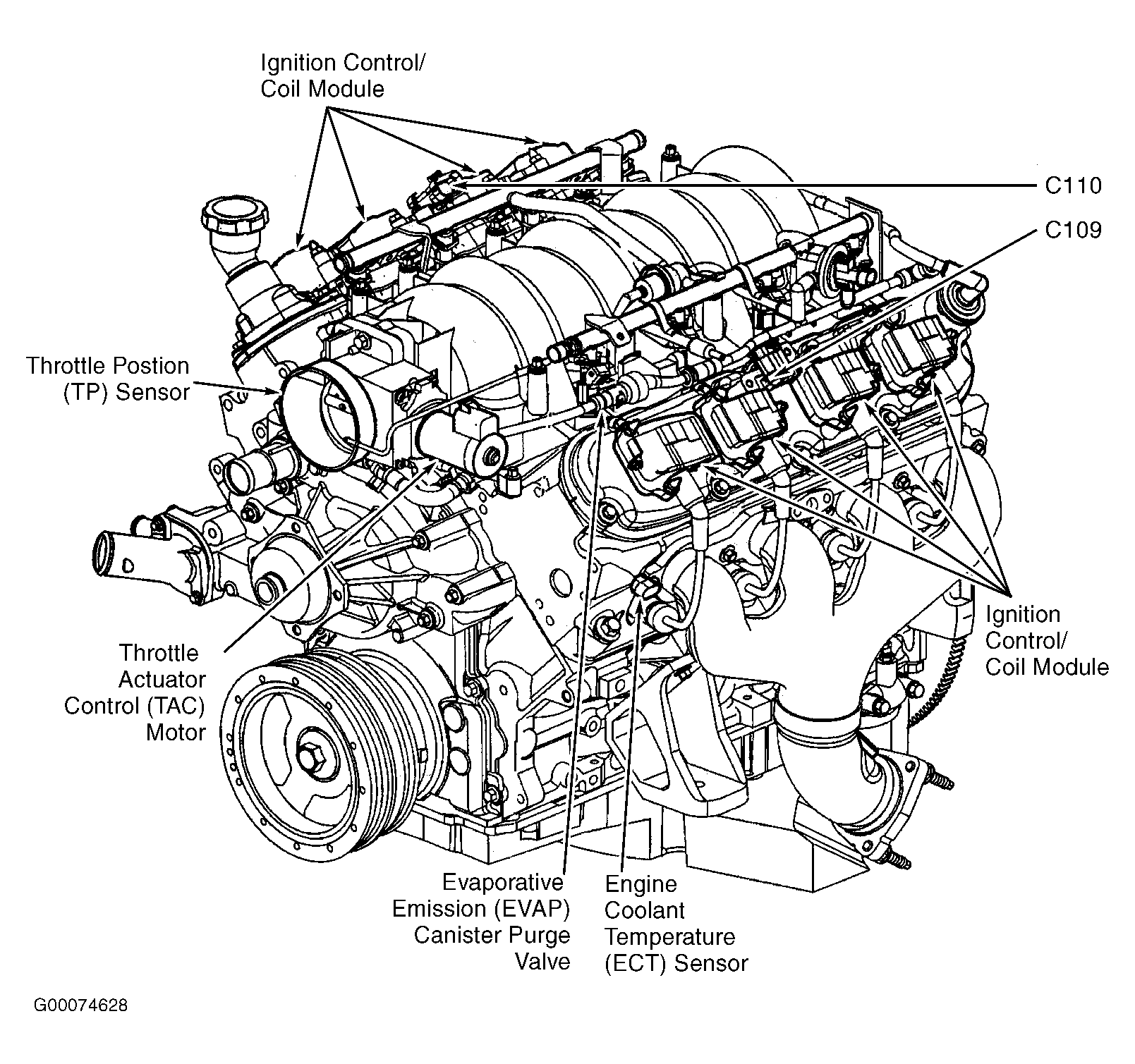

| Ignition Control/Coil Module (8) | On valve covers, at top of respective cylinders. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module | Below center of dash. See Figure . |
| Powertrain Control Module (PCM) | On right side of engine compartment. See Figure . |
| Radio Antenna Module | Behind lower "B" pillar trim panel. |
| Remote Control Door Lock Receiver | On left side of rear compartment. |
| Throttle Actuator Control (TAC) Module | On PCM, below battery. |
