Components Locations

NOTE: For component locations, refer to illustrations. See Fig 1 - Fig 4 .

COMPONENT LOCATIONS

Component	Location
Connector C313 (8-Pin)	Under Driver's Seat
Connector C314 (8-Pin)	Under Passenger's Seat
Forward/Rearward Seat Motor	Under Respective Seat (Rear Motor)
Front Tilt Motor	Under Respective Seat (Front Motor)
Fuse Block	Right Side Of Instrument Panel, In Front Door Opening
G308	Lower Left B-Pillar
Heated Seat Module	Under Respective Seat Frame, At Rear Of Seat Cushion
Heated Seat Switch	Part Of Rear Wiper & Multifunction Switch
Rear Tilt Motor	Under Respective Seat (Middle Motor)

Fig 1: Locating Data Link Connector & Splice Pack SP205

Courtesy of GENERAL MOTORS CORP.

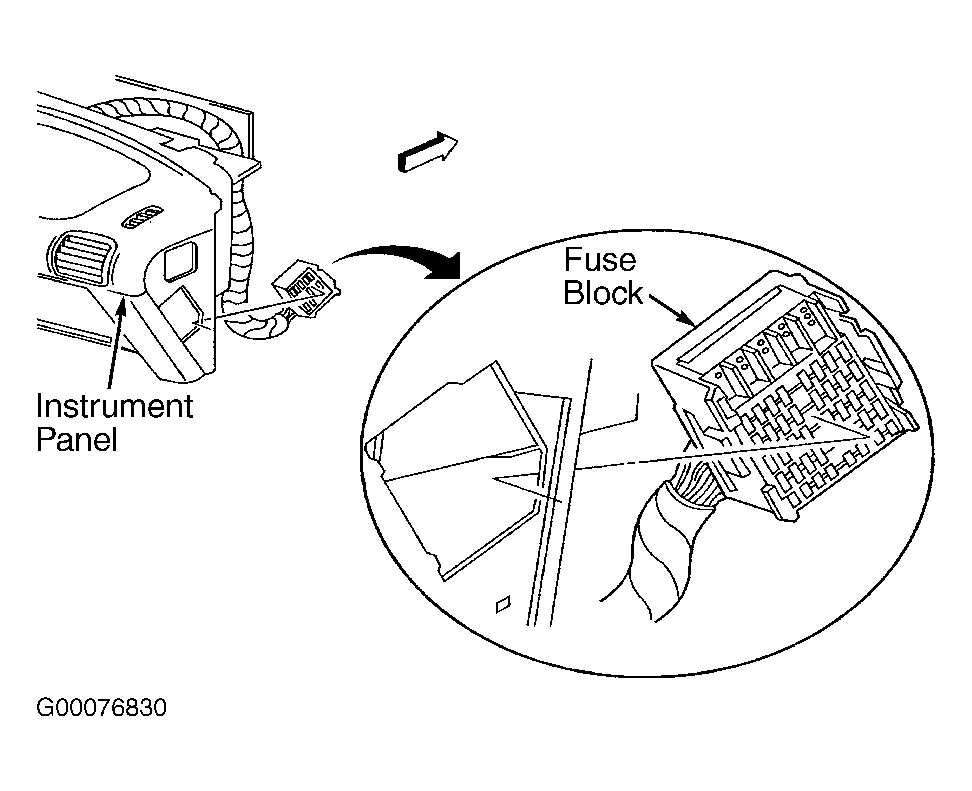

Fig 2: Locating Fuse Block

Courtesy of GENERAL MOTORS CORP.

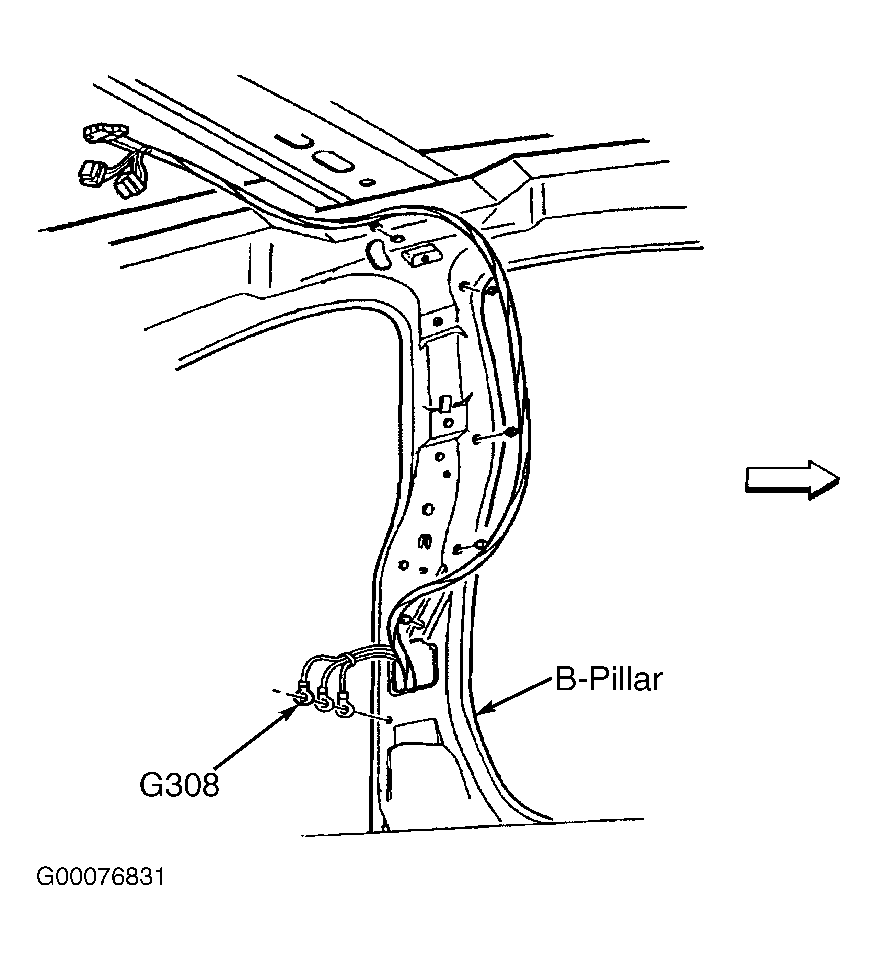

Fig 3: Locating Ground Point G308

Courtesy of GENERAL MOTORS CORP.

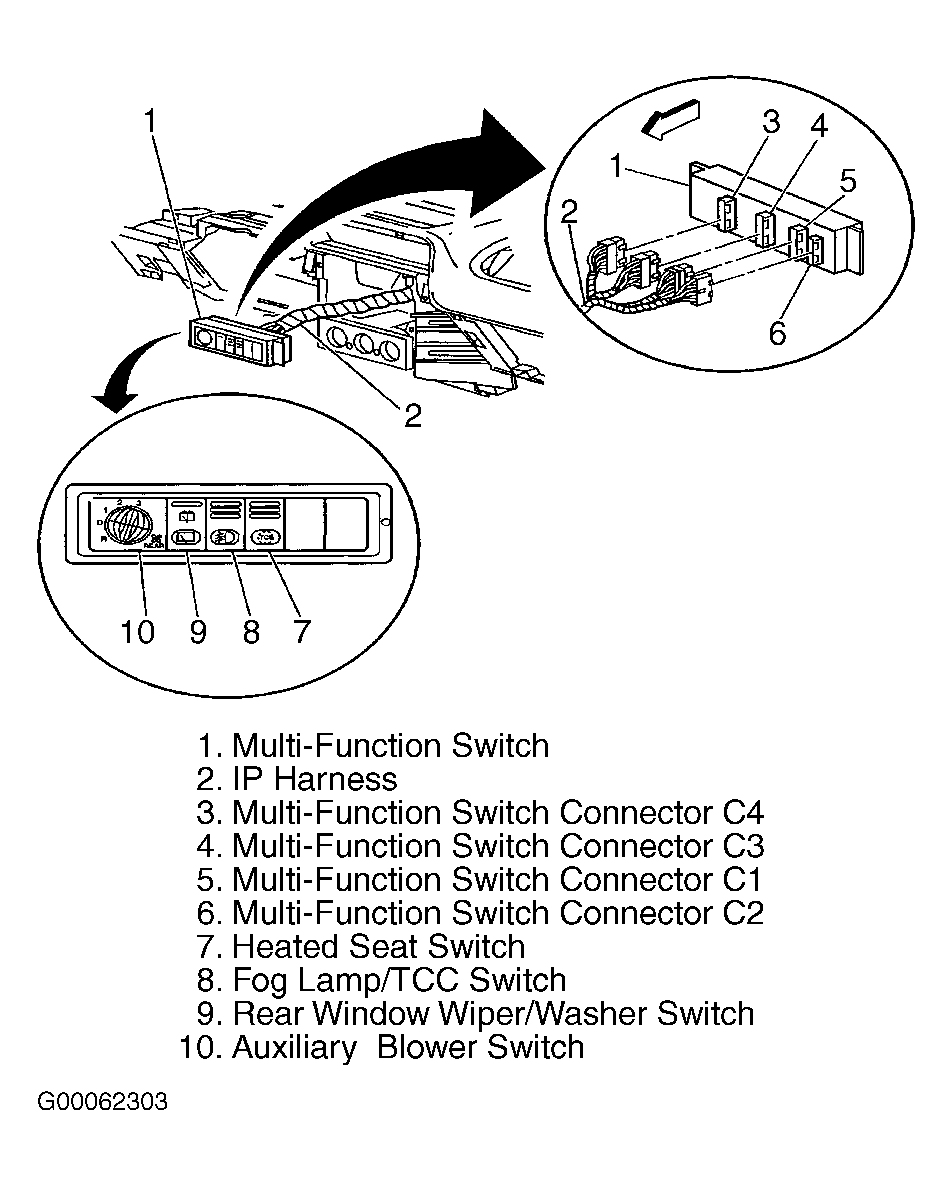

Fig 4: Locating Heated Seat Switch & Connector

Courtesy of GENERAL MOTORS CORP.
