Brake Pressure Modulator Valve Bracket Replacement

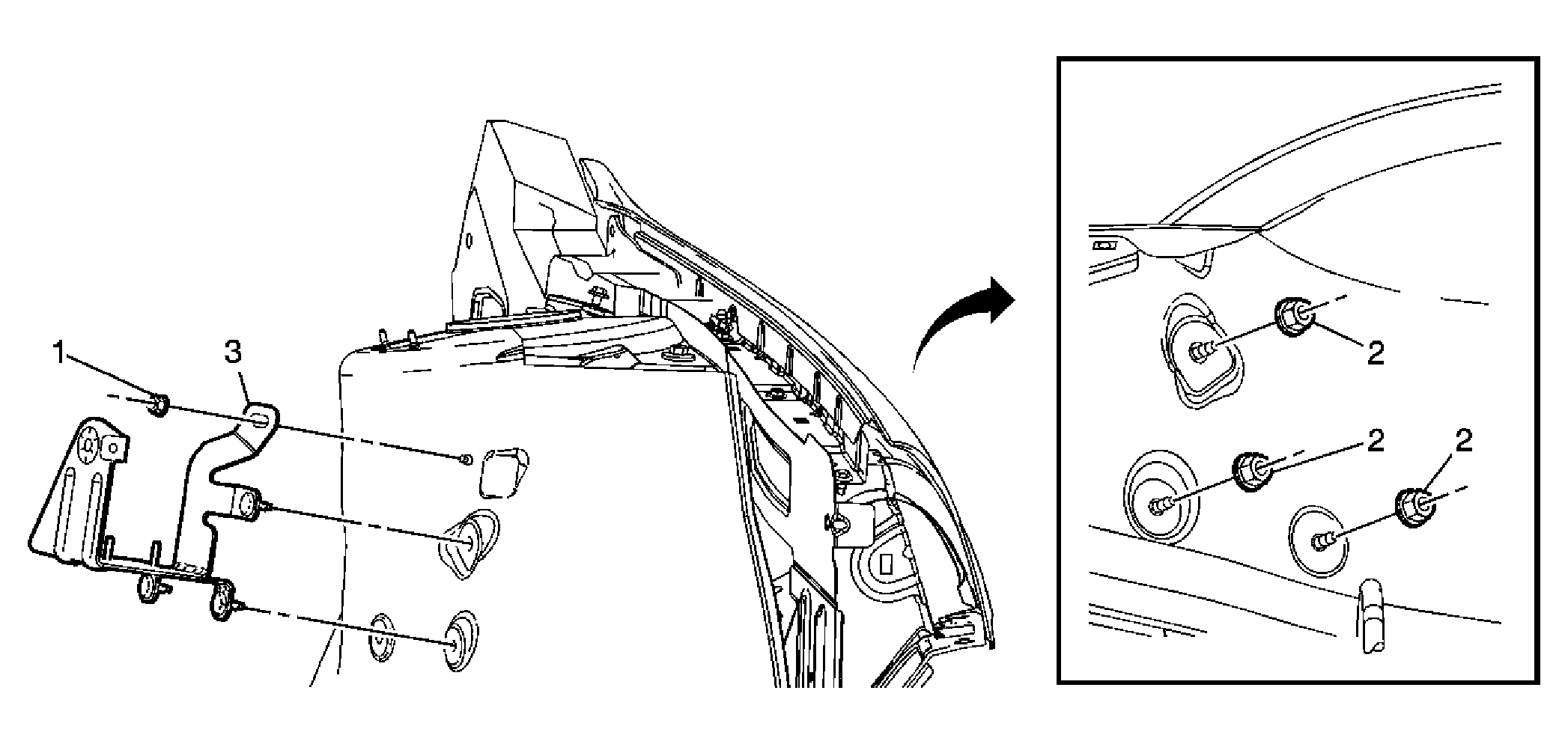

Fig 1: Replacing Brake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn the ignition switch to the OFF position. Without disconnecting the brake pipes, remove and position aside the electronic brake control module (EBCM). Refer to Brake Pressure Modulator Valve Replacement . Support the EBCM with heavy mechanics wire or equivalent.
1	BPMV Bracket Retaining Nut NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	BPMV Bracket Retaining Nut (Qty: 3) Tighten: 10 N.m (89 lb in)
3	BPMV Bracket
