Radio, Video, Audio Disc Player, and Navigation Information Display Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

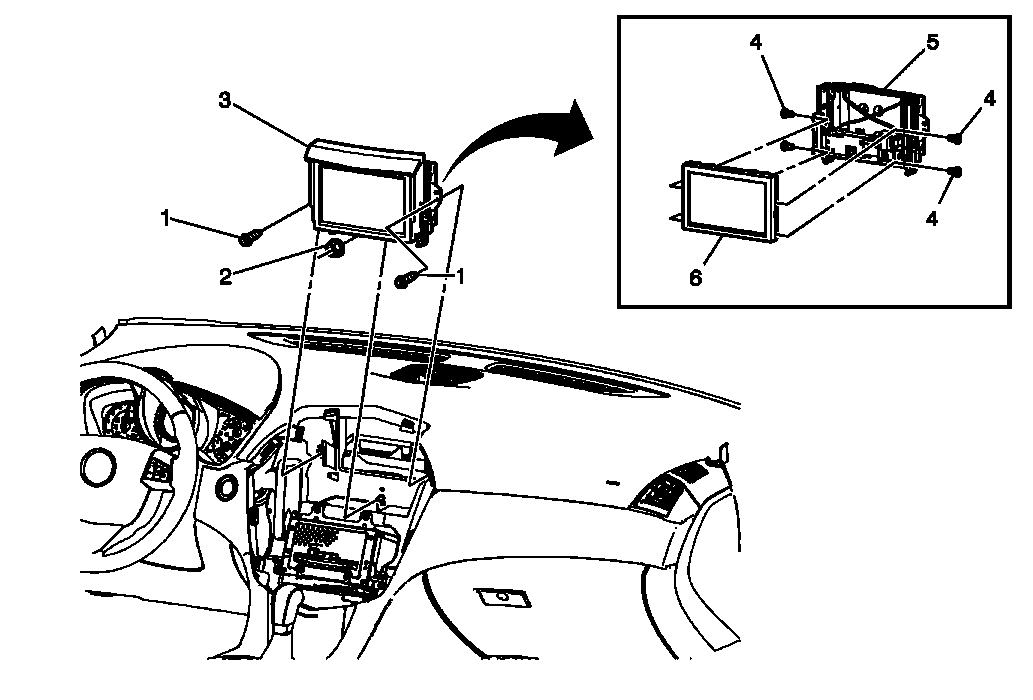

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the radio control assembly. Refer to Radio Control Assembly Replacement . |
|
| 1 | Radio, Video, Audio Disc Player, and Navigation Display Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Radio, Video, Audio Disc Player, and Navigation Display Nut Tighten: 2.5 N.m (22 lb in) |
| 3 | Radio, Video, Audio Disc Player, and Navigation Display Assembly Procedure: Disconnect the electrical connector. |
| 4 | Radio, Video, Audio Disc Player, and Navigation Display Screws (Qty: 4) Tighten: 2.5 N.m (22 lb in) |
| 5 | Radio and Video and Audio Disc Player and Navigation Information Display Actuator |
| 6 | Radio, Video, Audio Disc Player, and Navigation Display |
