Human Machine Interface Control Module Bracket Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

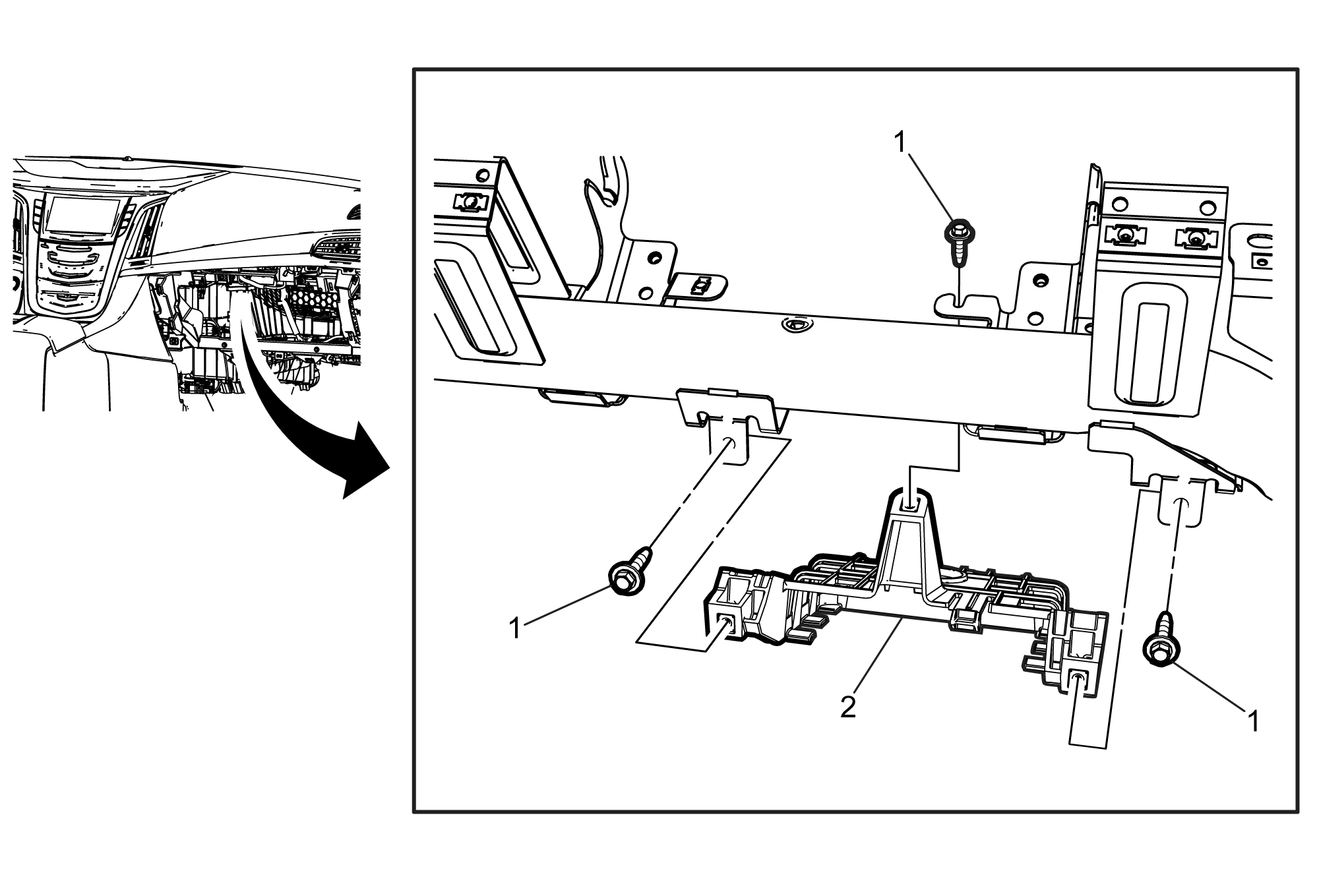

Fig 1: Human Machine Interface Control Module Bracket (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Cadillac) . Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement (Cadillac) .
1	Human Machine Interface Control Module Bracket Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Procedure Transfer components, as necessary.

Callout

Component Name

Preliminary Procedure

Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Cadillac) .
Remove the human machine interface control module. Refer to Human Machine Interface Control Module Replacement (Cadillac) .

Human Machine Interface Control Module Bracket Fasteners (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Human Machine Interface Control Module Bracket
Procedure
Transfer components, as necessary.
