Front Side Door Window Replacement

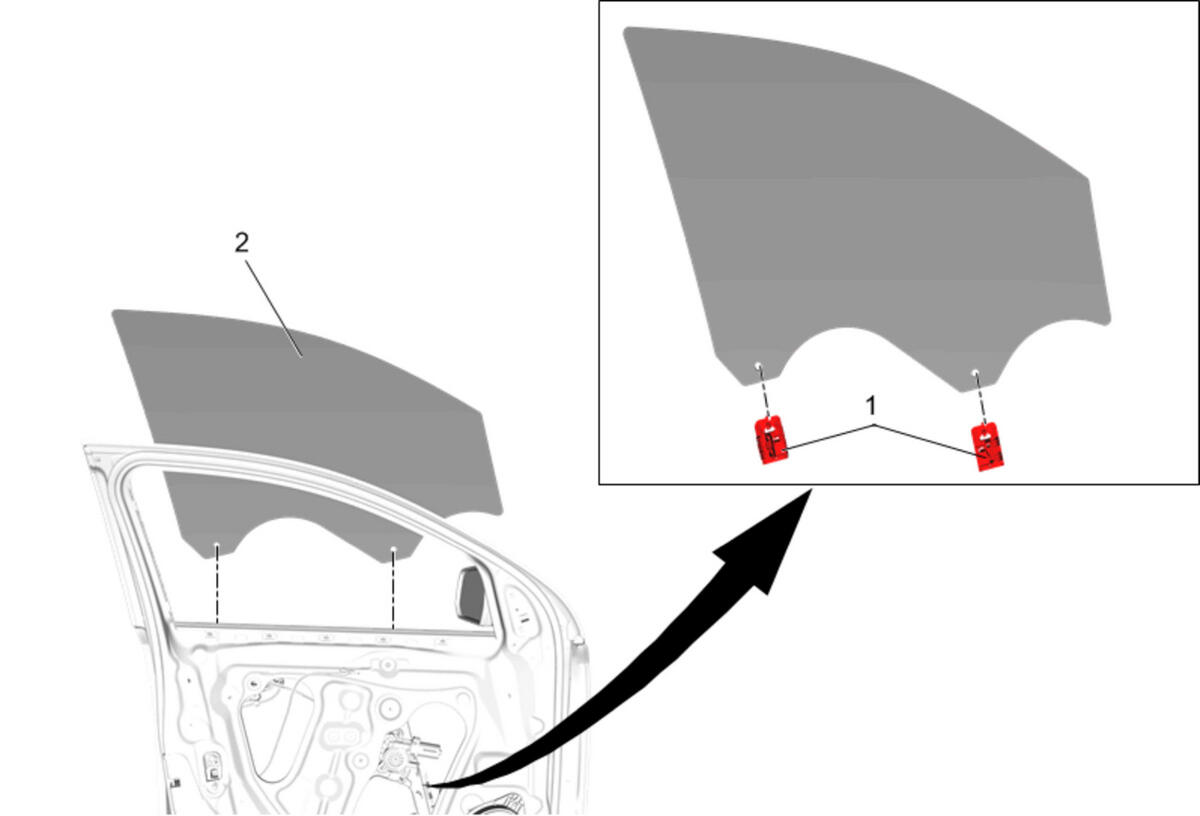

GM4387821Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

  1. Front Side Door Window Channel Retainer Replacement
  2. Front Side Door Window Inner Sealing Strip Replacement
  3. Front Side Door Window Belt Reveal Molding Replacement
1 Front Side Door Window Regulator Guide [2x]

Procedure

  1. Use masking tape to tape the window in the full up position to the door frame.
  2. Using the proper tool, release the window regulator guide from the window sash.
2 Front Side Door Window

Procedure

  1. Lower the window regulator guide full down.
  2. Remove the masking tape from the window.
  3. Tilt the window downward in the front, pull up on the back and pull the window out from the door frame.
  4. Inspect the door window for proper operation before installing the door trim panel.
