Windshield Multifunction Sensor Mount Bracket Cover Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement |
|

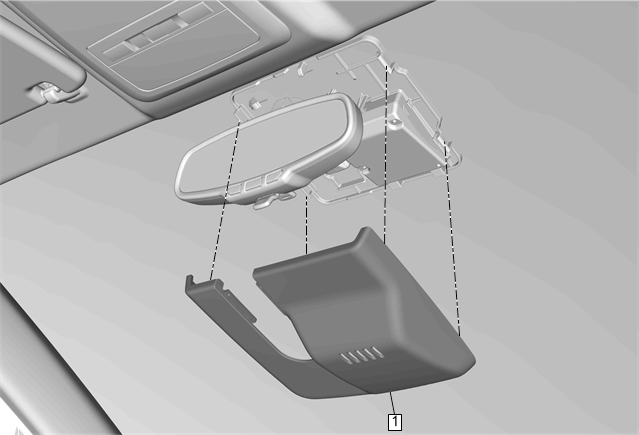

| 1 | Windshield Multifunction Sensor Mount Bracket Cover Procedure Using a plastic trim tool, carefully release the tabs on the cover to remove it from the windshield bracket.
NOTE:
The windshield multifunction sensor mount bracket cover and cover insert has to be removed from the windshield as a single unit to prevent damage to mirror. |
