Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

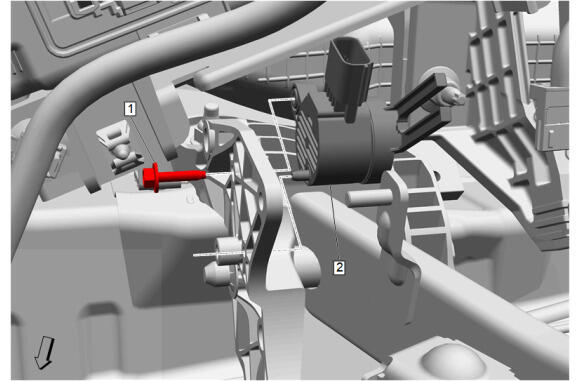

Brake Pedal Position Sensor (2) - Install

CAUTION:

Refer to Fastener Caution .

Brake Pedal Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

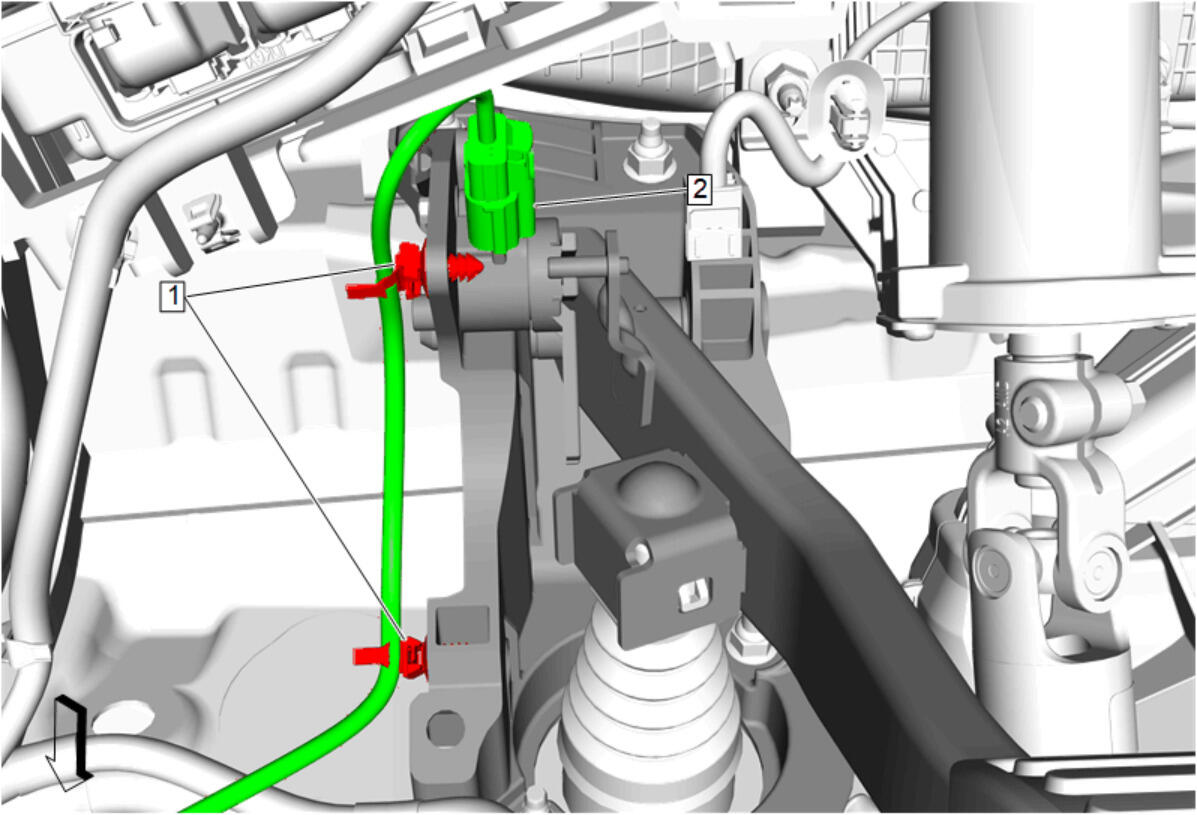

Brake Pedal Position Sensor Electrical Connector (2) - Connect
Retainer (1) - Secure [2x]
Connect the front floor courtesy lamp electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the tabs into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install
Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).
Calibrate the brake pedal position sensor. Brake Pedal Position Sensor Calibration
