Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

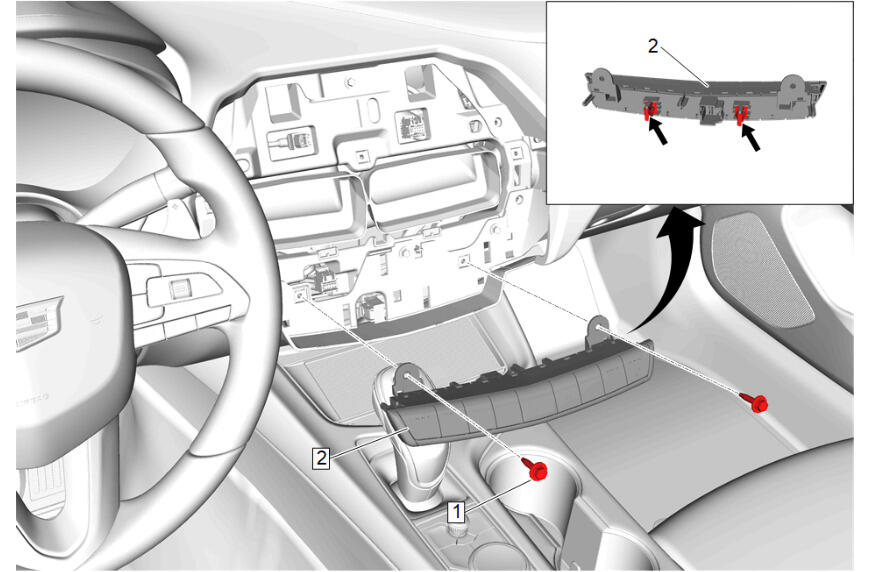

- Hazard Warning Switch (2) - Install
- Firmly secure the hazard warning switch (2) straight forward and ensure it is fully seated.
- Hazard Warning Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.

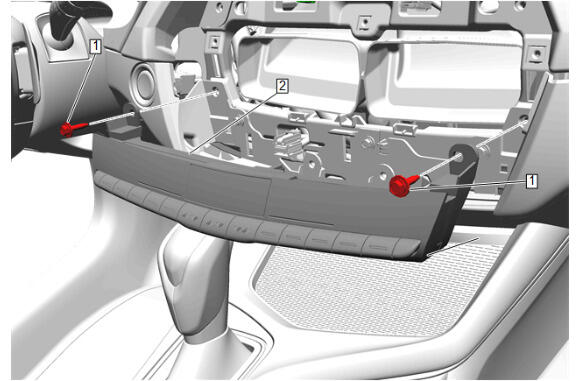

- Heater and Air Conditioning User Interface Control (2) - Install
- Heater and Air Conditioning Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

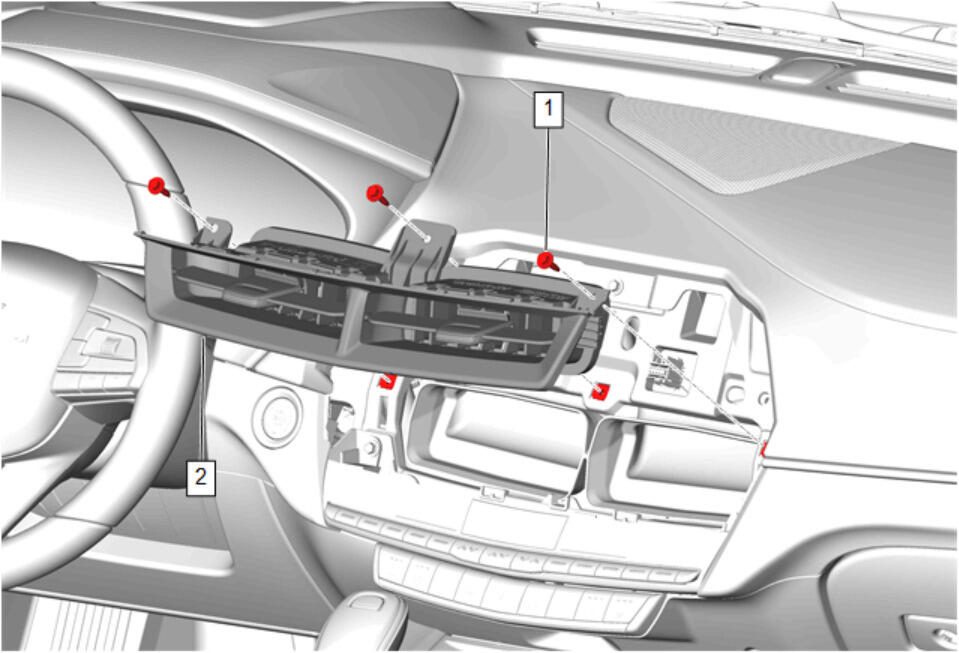

Instrument Panel Trim Plate (2) - Install
- Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connectors.
Radio Control (2) - Install
- Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Radio Front Trim Plate (1) - Install
Instrument Panel Radio Front Trim Plate (1) - Install
CAUTION:
Refer to Fastener Caution .
CAUTION:
Refer to Fastener Caution .
