Memory Control Module

  1. Remove seat assembly from vehicle. See SEAT ASSEMBLY  .
  2. Lay seat on its back on a clean surface.

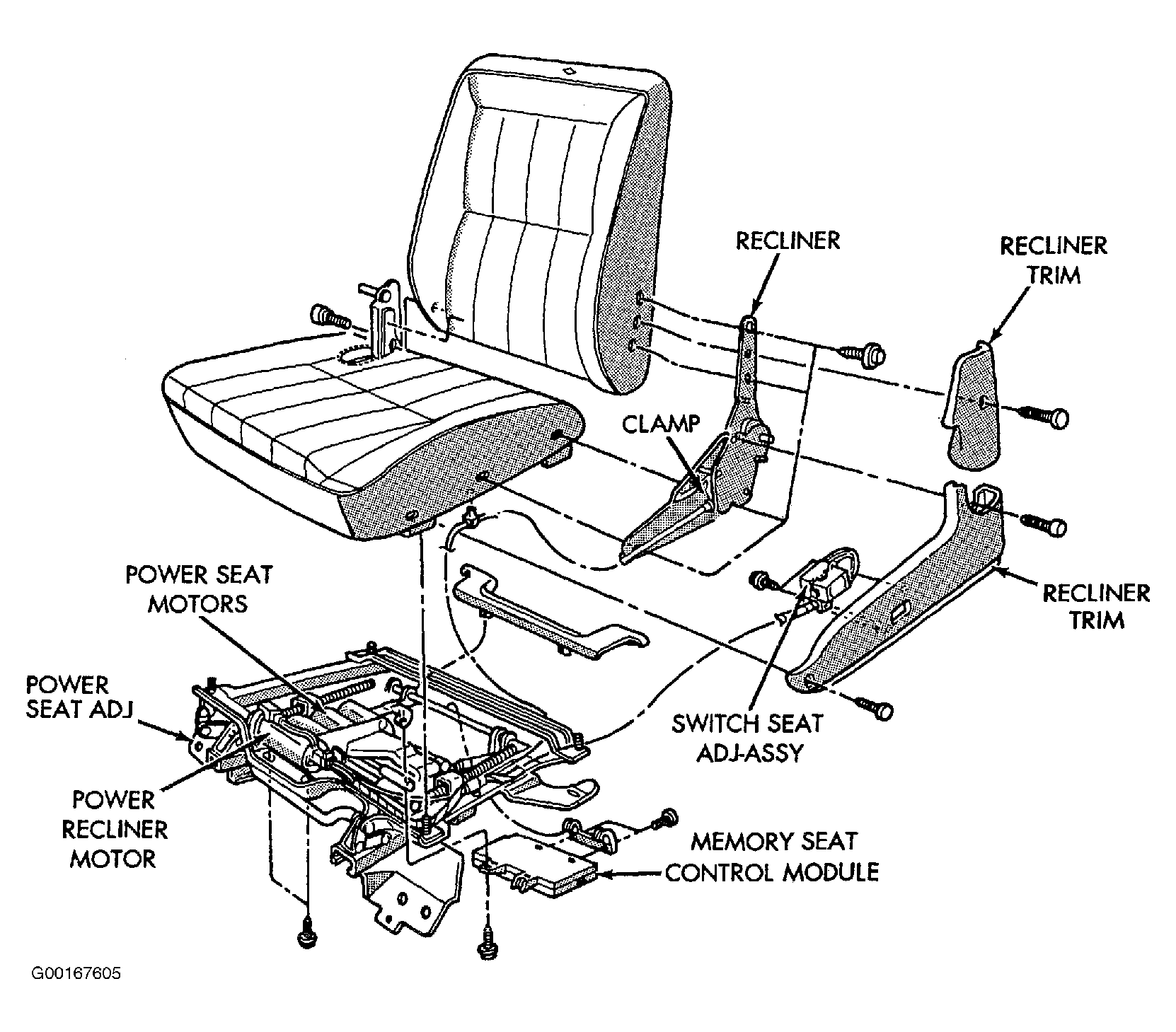

  3. Remove screws attaching control module to seat track. See Figure .
  4. Disconnect control module wiring.
  5. Remove control module.
  6. To install, reverse removal procedure. Set system soft limits by performing the memory seat diagnostic self check, so that the control module will learn the soft limits of the assembly. See SYSTEM SOFT LIMITS  .
